Sinotruk Howo 6×4 NX Dump Truck for Sale
This is a photo of a Howo 6×4 NX Dump Truck featuring a front-engine cab design. Its exterior design has undergone a comprehensive overhaul, with standard equipment including a front underrun protection device and an upper bunk to accommodate diverse operational requirements. The effective chassis dimensions, overall dimensions, and exterior color can all be customized to meet your specific job site needs.
Sinotruk Howo 6×4 NX Dump Truck for Sale Description:
The Howo 6×4 NX Dump Truck utilizes a powertrain from Sinotruk Group, featuring heavy-duty components and specialized spare parts. Its flat-top lifting mechanism enables a cargo box volume exceeding 20 cubic meters. Reinforced structural design combined with multi-leaf steel springs ensures reliable operation under demanding conditions. The cab offers expansive visibility and features a comfortable sleeper berth, balancing transport efficiency with driver comfort. This heavy-duty dump truck serves as a primary workhorse for engineering and infrastructure construction projects.
Product Name Howo 6×4 Dump Truck
Drive Type 6×4
Engine WP10H371E201, 371HP , Euro 2 emission standard,
4 stroke injection diesel engine ,6 cylinder in-line with water cooling,turbo-charging & inter cooling , common rail
Maximum output : 272 KW
Maximum torque : 1900N.m
Displacement: 9.726 L"
Clutch SINOTRUK’s 430 C diaphragm spring clutch,
Transmission model HW 19710 , 10 forward and 2 reverseRatio : 5.73
Front Axle New VGD 95 series, with drum brake system
Rear Axle HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system
Axles: The front axle is of the new VGD95 series, equipped with a drum brake system. The rear axle is an HC16 pressed axle housing, with single reduction and differential locks between axles, and also uses a drum brake system. The load capacity of the front axle is 2×9500kg, and the load capacity of the rear axle is 2×16000kg
Steering It adopts ZF8118 hydraulic power steering, with a steering ratio of 22.2-26.2:1, which makes the steering operation more flexible and labor-saving.
Wheels & Tires The number of tires is 10, the rim is 8.5-20, 10-hole steel, and the tire type is 12R22.5, which can also be customized according to customer requests.
Driver's Cab It uses a long cab, all-steel forward control, which can be hydraulically tilted 55° forward. It is equipped with a 2-arm windscreen wiper system with 3 speeds, an adjustable co-driver's seat, a heating and ventilation system, a stereo radio/cassette recorder, a sun visor, a safety belt, and an air conditioner, providing a relatively comfortable driving environment for the driver.
Dimensions The wheelbase is 3625 + 1350mm, the front wheel track is 2022mm, the rear wheel track is 1860/1860mm, the front overhang is 1500mm, and the rear overhang is 1870mm. The approach angle is 17°, and the departure angle is 20°. The overall size is 8600x2550x3450mm
Weight: The permissible loading capacity is 15600kg, the dead weight is 15270kg, and the gross vehicle weight is 25000kg
Cargo Body: The size of the cargo body is 6800x2300x1500mm, the bottom is 8mm thick, the side is 6mm thick, and it adopts a middle lift method (front lift is optional). This cargo body size and structure can meet the transportation needs of most bulk materials.
Color : The color can be customized according to customer requests to meet different aesthetic and identification needs.

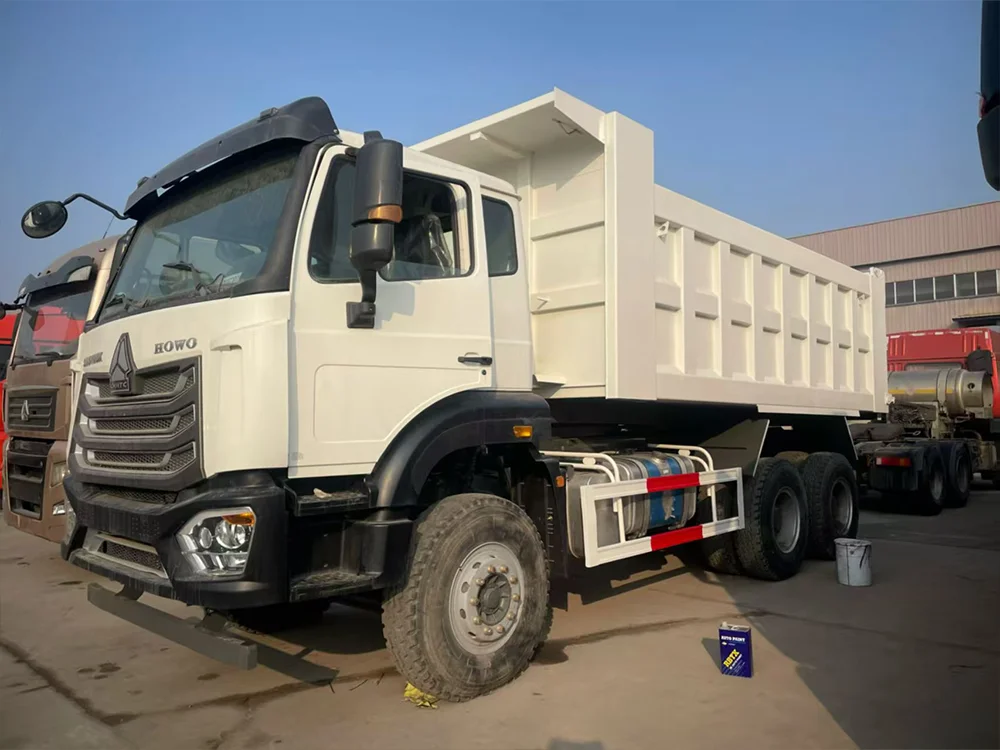

Howo 6×4 NX Dump Truck
HOWO 6×4 NX Dump Truck Side View

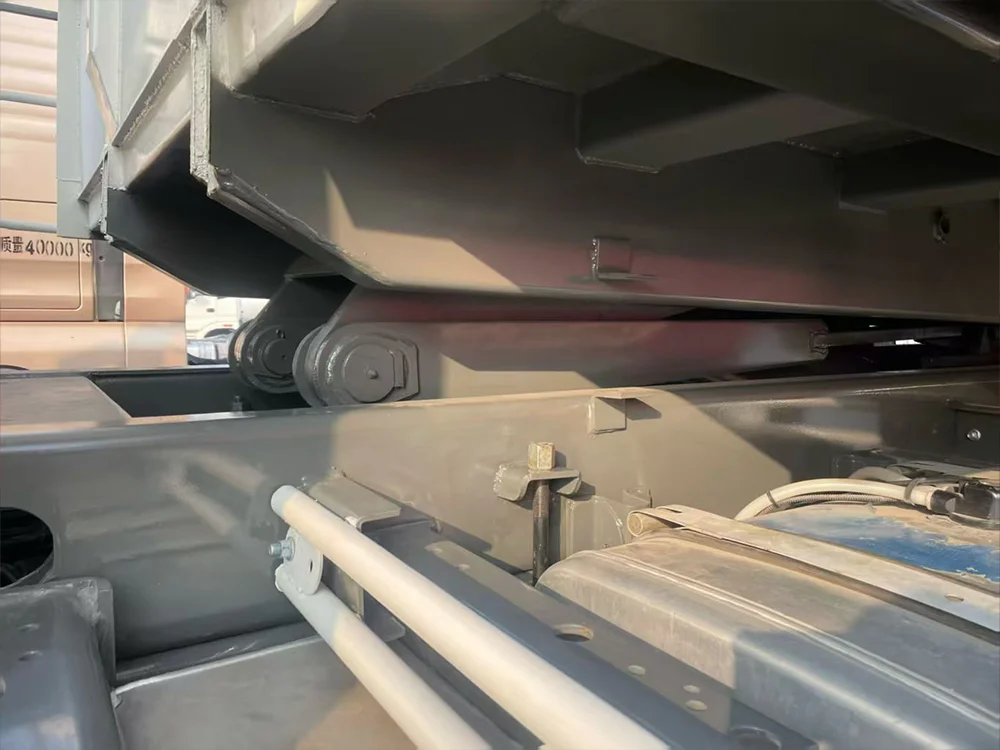

HOWO 6×4 NX Vehicle Detail Showcase

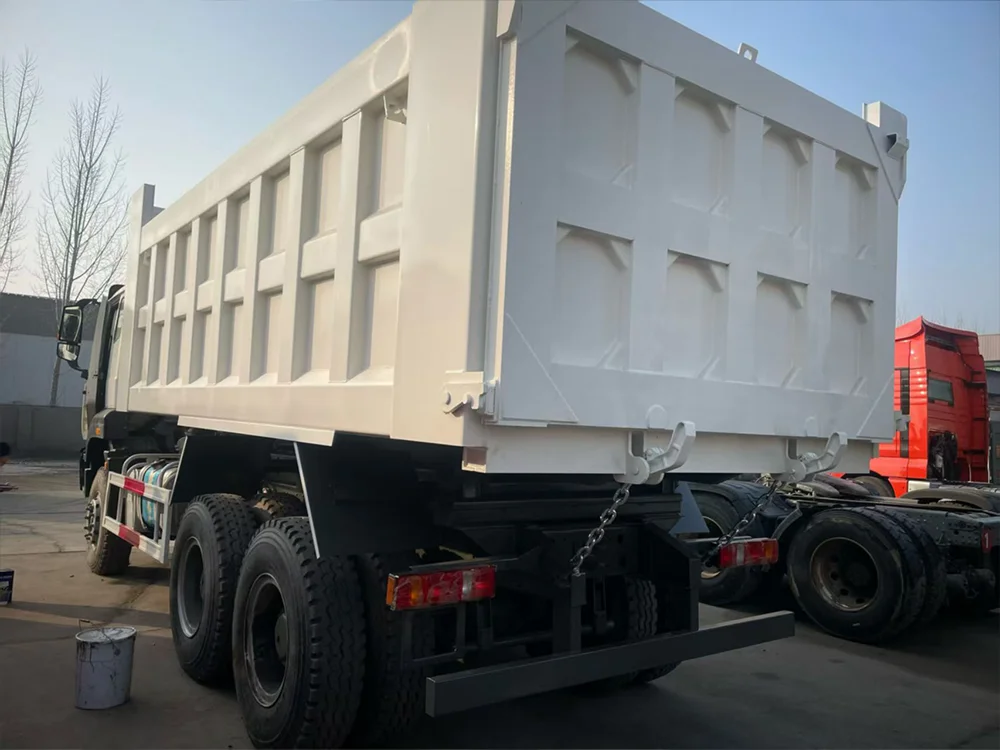

HOWO 6×4 NX Dump Truck Rear View
Our most important commitment is that all products undergo comprehensive refurbishment, with each component customizable to meet customer requirements. Different configurations correspond to different quotations. At Zonhan, there’s always a truck that fits your budget goals.
