Sinotruk Howo NX 6×4 Dump Truck for Sale
The Howo NX 6×4 Dump Truck is a high-performance, cost-effective 6×4-drive heavy-duty truck launched by China National Heavy Duty Truck Group (CNHTC). It is suitable for various scenarios such as urban construction and construction waste transportation, combining power, reliability, and economy.
Sinotruk Howo NX 6×4 Dump Truck for Sale Description:
The Howo NX 6×4 Dump Truck is a heavy-duty dump truck launched by China National Heavy Duty Truck Group (CNHTC), mainly used in urban construction, construction waste transportation, and mining.
The Howo NX 6×4 Dump Truck (also be called as tipper truck) is built for demanding environments. It’s a robust engineering machine dedicated to the efficient transportation of bulk materials. Suitable for goods like soils, stones, sand, mineral ores, coal, and construction debris.
| Model | ZZ3257V384JB1 |
|---|---|
| Cabin | H77L cab, with one sleeper and two seats, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. High steel bumper, Inter-cooler Protection. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model: WD615.47, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement:9.726L |
| Transmission | HW19710, 10F & 2R, with HW50 Direct PTO Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8098, hydraulic steering with power assistance |
| Front Axle | VGD95, 1*9500 KGS |
| Rear Axle | MCX16ZG, 2×16000 KGS |
| Chassis | Front suspension:10semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Fuel Tank | 300L |
| Tire | 12.00R20, Radial (steel wire) Tires . 10+1 Pics |
| Cargo body | 5600x2300x1500mm |
| Color | Optional |

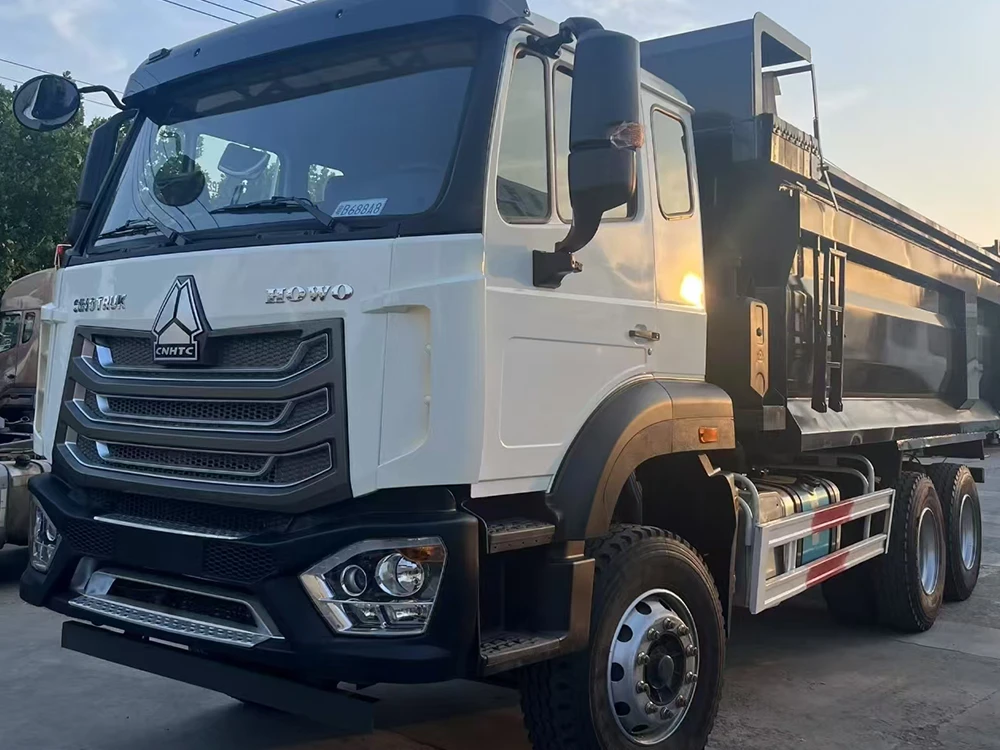

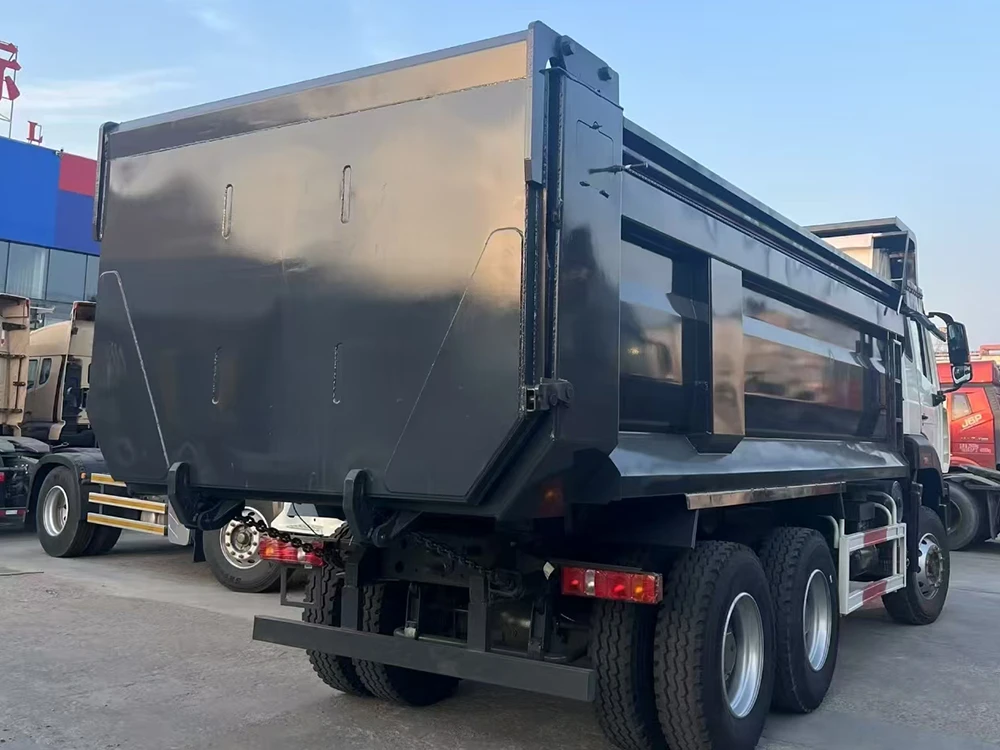

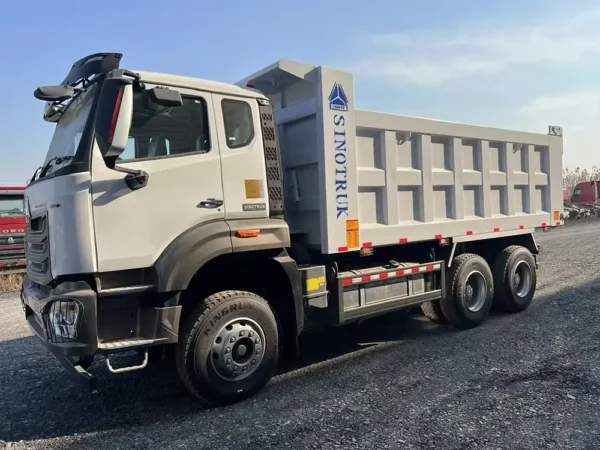

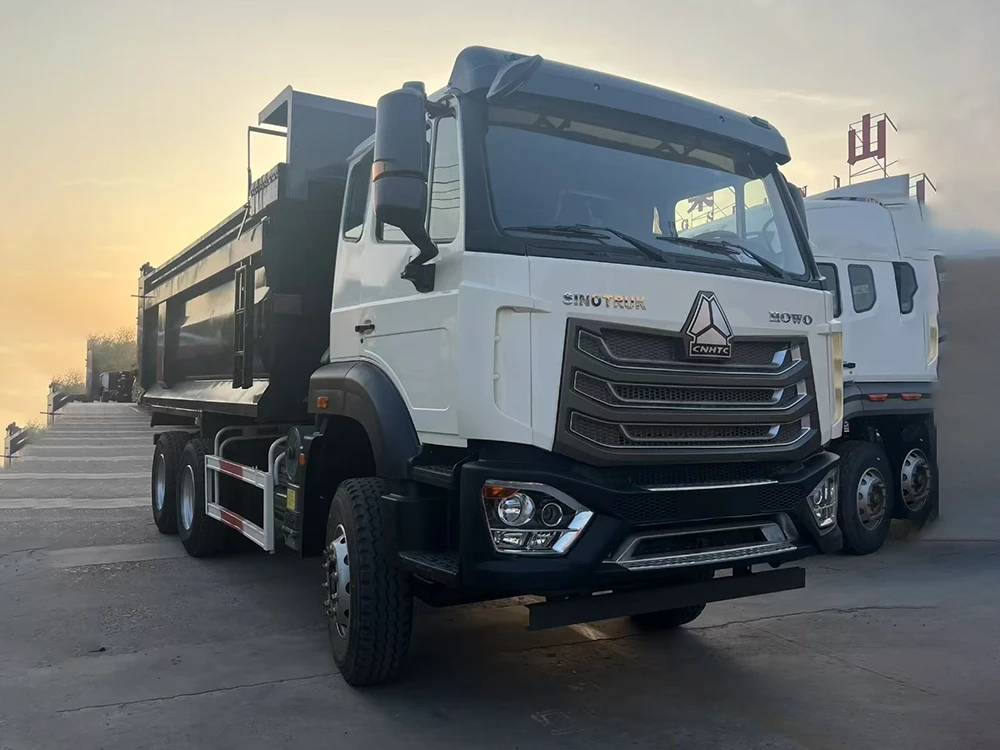

Howo NX 6×4 Dump Truck
Howo NX 6×4 Dump Truck
Howo NX 6×4 Dump Truck

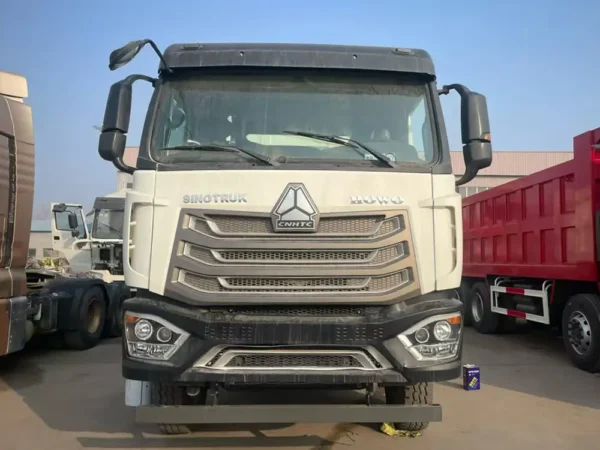

The Howo 6×4 NX dump truck features robust body lines and an overall imposing and stable appearance. Its front fascia is equipped with a large grille and a prominent Sinotruk logo, making it highly recognizable. The side profile is sleek, with a seamless connection between the cargo box and cab. The vehicle’s departure and approach angles are well-designed, resulting in good off-road capability.
This Truck is primarily used at construction sites and mines. Its powerful engine and durable 6×4 chassis provide a strong ability to climb ramps and handle complex road situations, ensuring reliable performance under heavy loads. The design also offers good flexibility for various applications. Key components such as the engine, transmission, cargo body, and tires can be customized to match the specific strength requirements of your business and operational needs. Like all our vehicles, it is fully refurbished to ensure quality and reliability.
