Best-selling Howo 6×4 371 Dump Truck with Two Warning Lights
Howo 6×4 371 Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The warning lights and headlight protective cover increase the safty, and all these configurations are costumizable.
Best-selling Howo 6×4 371 Dump Truck with Two Warning Lights Description:
Howo 6×4 371 Dump Truck is dedicated to heavy-duty and high strength working condition, the mainly function of it is transporting bulk materials like dinas, earth, mineral, etc. And it’s specially suitable for working in complex road condition.
Equipped with 371 horse power engine provides it a high torque in a low spining speed over 1500N·m which makes this truck have good performance in clamp the ramb, heavy duty load and drive in the muddy ground. The 6×4 drive chassis double rear axles confirms its loading ability. And the dump truck container can lift itself within a short time increase the efficiency of the work. The warning lights and headlight protective cover make sure the safety during the work, reduce the chance for extra expenses.
| Product Name | Howo 6×4 371hp Dump Truck with two warning lights |
|---|---|
| Model | ZZ3257N3847A |
| Engine | Engine model : WD615.47, 371HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 486 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8265x2496x3490 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8265x2496x3490 mm |
| Color | Customer's requests |

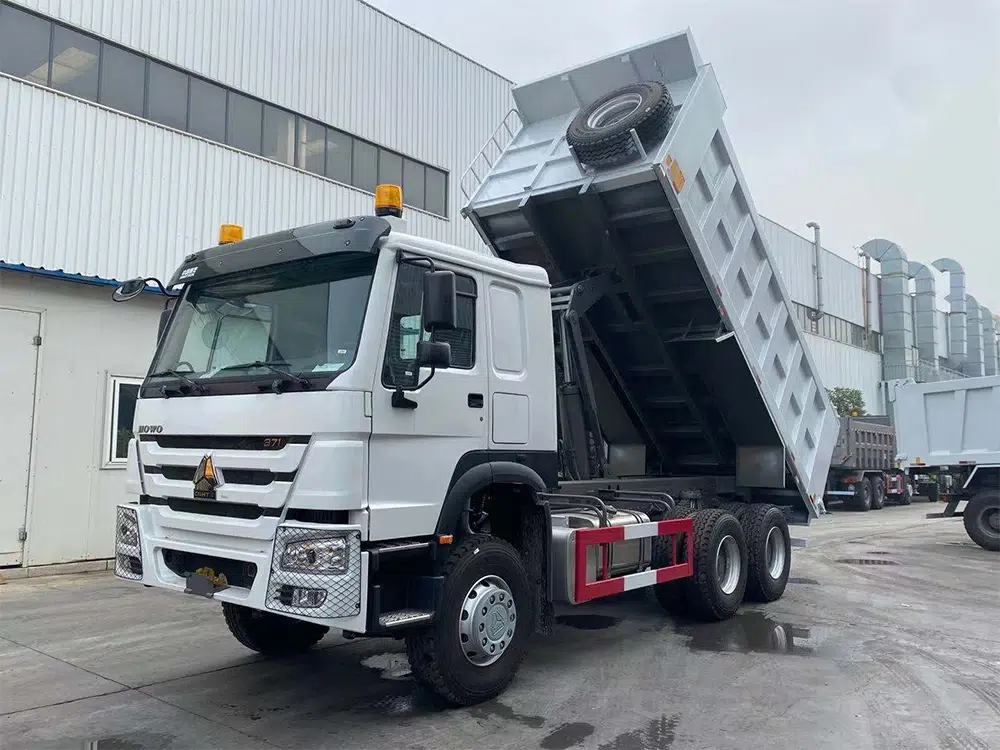

Howo 6×4 371 Dump Truck front view
hydraulic system lifting device
high efficiency lifting container
big load capacity
best economic option
Howo 6×4 371 Dump Truck back view
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
