Sinotruk HOWO 6×4 Used 380HP Dump Truck for Sale
As the most widely used dump model, this Sinotruk HOWO 6×4 Used 380HP Dump Truck covers almost all conventional heavy bulk material transportation scenarios.
It can be used for urban construction and earthwork projects: real estate projects, municipal road construction, earthwork excavation and backfilling in subway construction. Transportation of building materials: transshipment of building materials such as sand, slag, cement stabilizer, etc. Medium-sized mines and quarries: short-distance transportation of coal, iron ore, limestone and other ore resources. Water conservancy engineering and infrastructure construction: material transportation in the construction of highways, railways and dikes.
Sinotruk HOWO 6×4 Used 380HP Dump Truck for Sale Description:
This Sinotruk HOWO 6×4 Used 380HP Dump Truck is one of the most mainstream and classic heavy-duty dump trucks in China’s SINOTRUK HOWO series. It adopts a three-axis (6×4) drive form and is equipped with a 380-horsepower engine, which achieves an excellent balance between carrying capacity, passability, purchase cost and flexibility of use. It is the core transportation force of various medium-sized to large-scale engineering projects. Equipped with a reinforced engineering chassis, the volume of the cargo box is usually 12-20 cubic meters, and it is equipped with a strong lifting system as standard.
| Product Name | Howo 380hp Dump Truck |
|---|---|
| Model | ZZ3257V3847NB1 |
| Engine | Engine model : WP12.400E201 , 400HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system . |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Dimensions inmm | Wheel base (mm) : 3800 + 1350 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8545 x 2496 x 3450 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8500 x 2550 x 3450 mm |

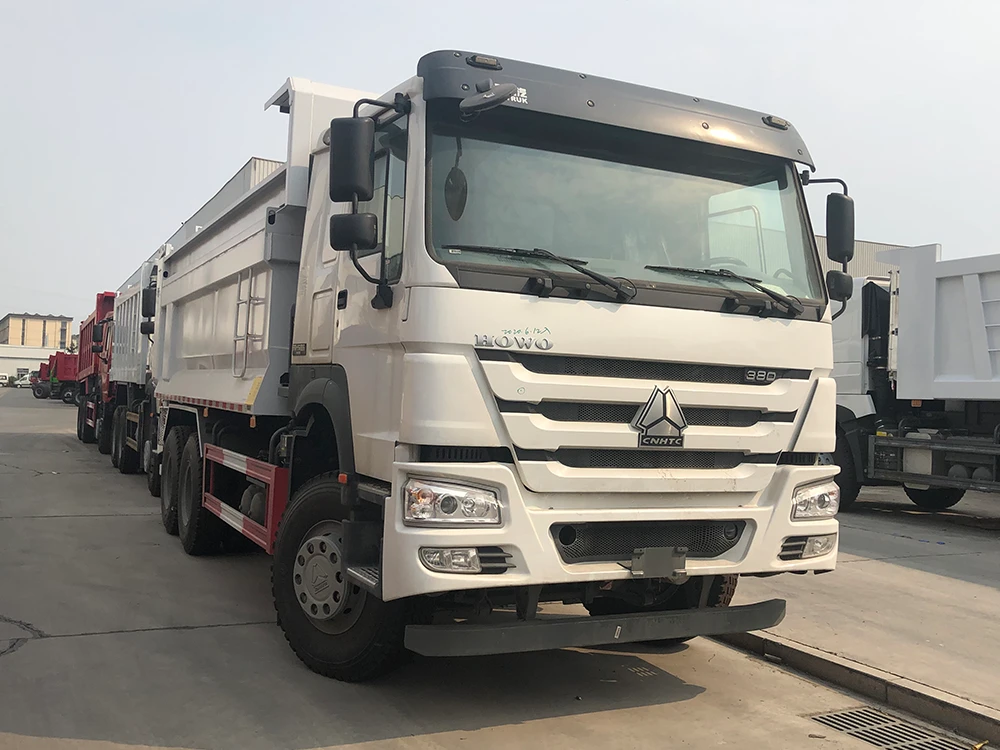

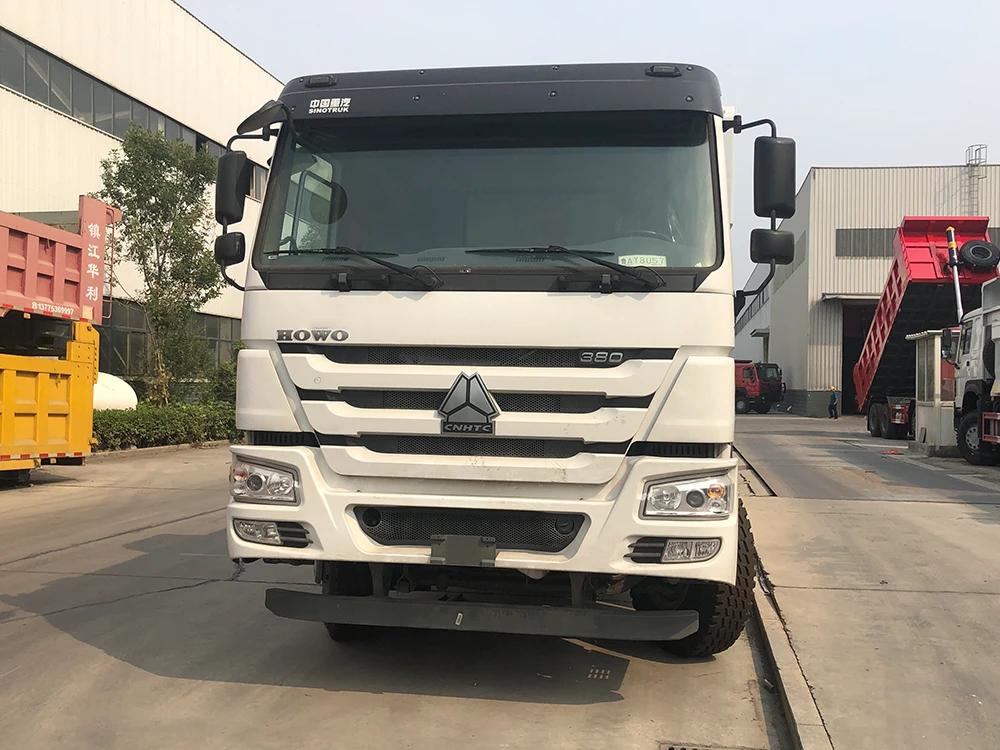

Front View

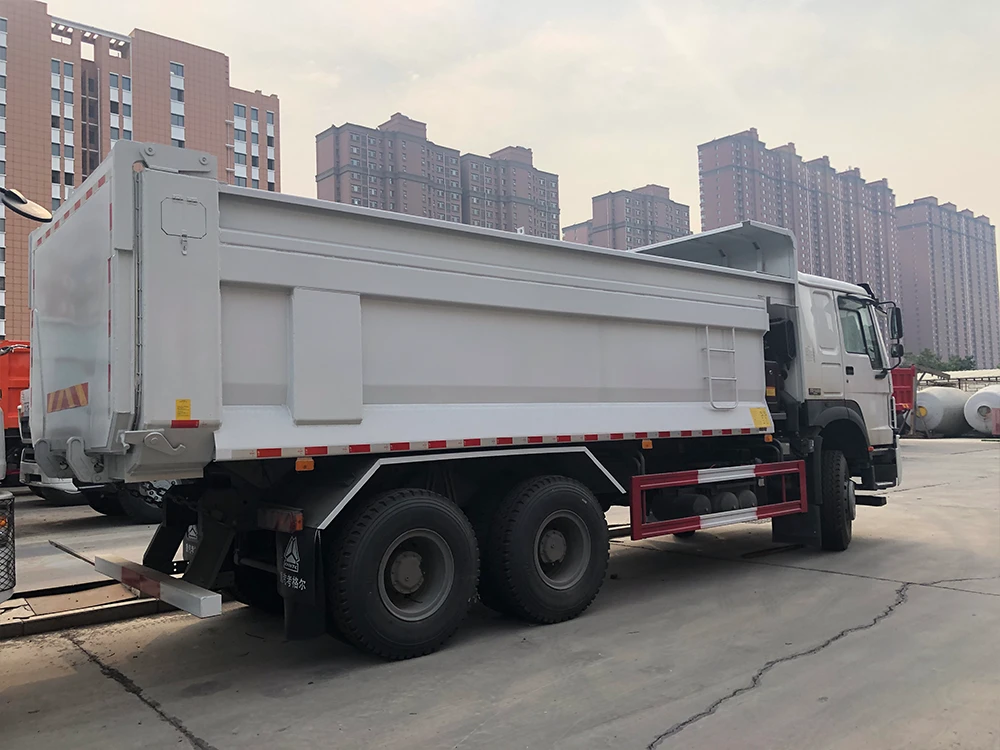

Side View
s
As the most widely used dump model, this Sinotruk HOWO 6×4 Used 380HP Dump Truck covers almost all conventional heavy bulk material transportation scenarios.
It can be used for urban construction and earthwork projects: real estate projects, municipal road construction, earthwork excavation and backfilling in subway construction. Transportation of building materials: transshipment of building materials such as sand, slag, cement stabilizer, etc. Medium-sized mines and quarries: short-distance transportation of coal, iron ore, limestone and other ore resources. Water conservancy engineering and infrastructure construction: material transportation in the construction of highways, railways and dikes.
