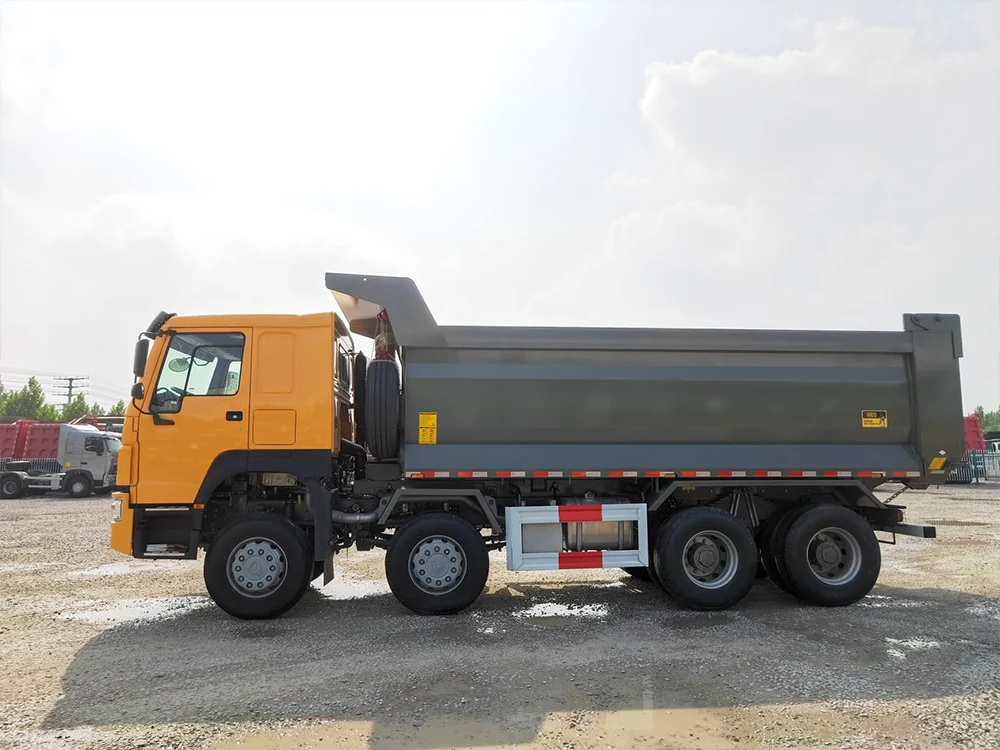

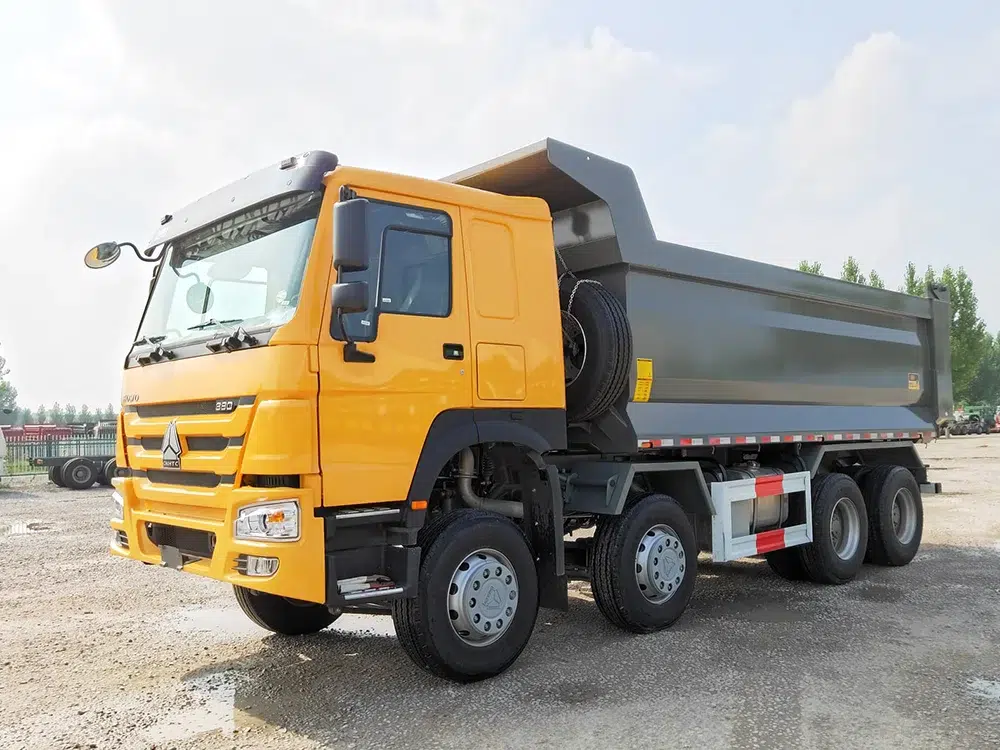

Sinotruk HOWO 8×4 U-Shaped 380HP Used Dump Truck for Sale
In a word, this U-Shaped 380HP Used Dump Truck is a professional model to efficiently solve the problem of “difficult unloading”. It is not only a simple superposition of power and load, but also accurately hits the pain points in the transportation of wet and sticky materials through the innovative design of the U-shaped cargo box.
Sinotruk HOWO 8×4 U-Shaped 380HP Used Dump Truck for Sale Description:
This U-Shaped 380HP Used Dump Truck is a heavy engineering dump truck that has been deeply optimized for the transportation of specific materials. It is based on the HOWO 8×4 (four-axle) chassis with extremely strong bearing capacity and a 380-horsepower engine. Its most prominent feature is the use of a green U-shaped cargo box. This combination is an engineering solution with high carrying capacity, high efficiency and low residue.
| Product name | Howo 8x4 Dump Truck |
|---|---|
| Model | ZZ3317V356GB1 |
| Engine | WP10.380E32 |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverseRatio: 4.42 4.8 5.73 |
| Front Axle | HF9 |
| Rear Axle | ST16 |
| Performance | Maximum driving speed(km/h):75(reference data)Maximum gradeability (%):36Minimum ground clearance(mm):243Minimum turning radius (m):11.2Fuel consumption(L/100km):60(reference data) |
| Cargo body | Size:7600*2300*1500, bottom 8mm, side 6mm, front lifting system |
| Color | Based on customer's requests |
The unloading of this U-Shaped 380HP Used Dump Truck is clean and thorough, with almost zero residue. The circular arc bottom and smooth side wall of the U-shaped cargo box, when lifting and unloading, the material can naturally slide down by gravity, and it is not easy to bond and accumulate in the corners. This is especially suitable for transporting wet adhesive materials (such as sludge, clay with high moisture content, coal sludge) and easy-to-solidify materials (such as commodity concrete waste).
And this truck has high structural strength and lighter weight. The U-shaped cross-section is a natural anti-bending and anti-torsion structure. Under the same strength and rigidity, the U-shaped cargo box can use thinner steel plates than the traditional rectangular cargo box, thus reducing the dead weight of the vehicle and increasing the legal load capacity.
