Best HOWO 6×4 420HP Special purpose Dump truck

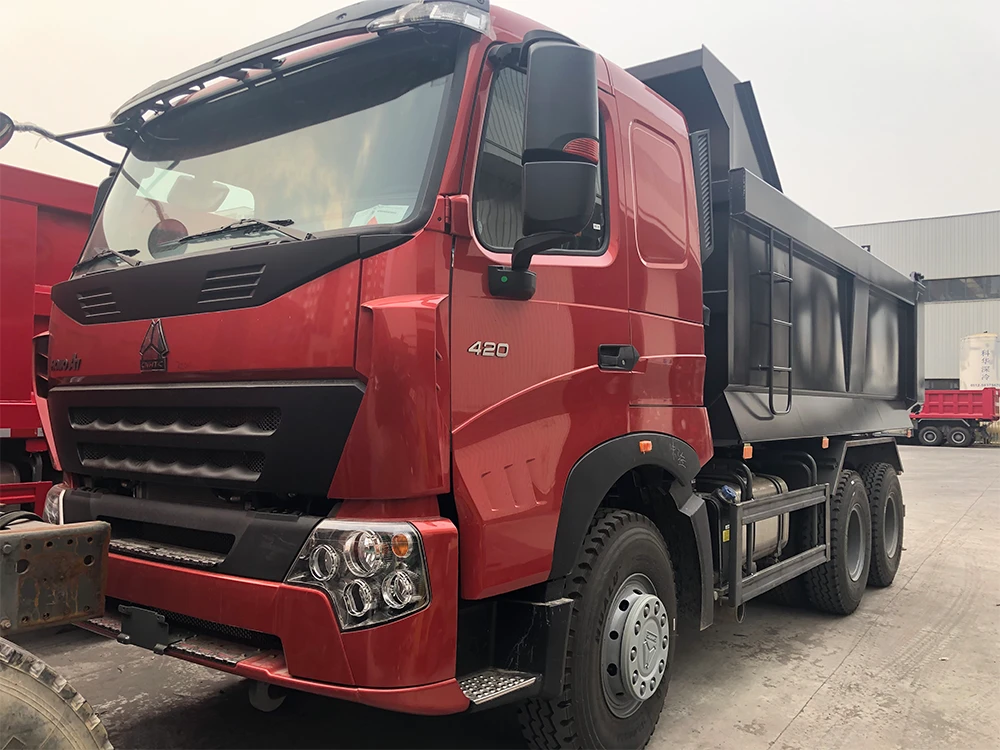

This is a photo of a premium 6×4 420HP Special purpose Dump truck featuring a striking red cab with black accents and a modern front design displaying the “420” model designation. The distinctive black cargo body with integrated ladder and urban construction site background highlights its specialized engineering purpose.
Best HOWO 6×4 420HP Special purpose Dump truck Description:
The 6×4 420HP Special purpose Dump truck represents a high-performance engineering solution designed for demanding construction and mining environments. With a maximum payload capacity of 30,600 kg and a powerful 420 HP engine, this dump truck delivers reliable performance for transporting soils, stones, minerals, coal, and construction debris. The modern front design features protective headlight covers that enhance visibility while protecting against debris damage during construction operations.
| Product Name | Howo 420 6×4 Dump Truck |
|---|---|
| Engine | Engine model : WD615.47 , 420 HP , Euro 3 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :30600 Dead weight (kg): 15270 Gross vehicle weight (kg): 45000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , Front lift |
| Overall Size | 8500 x 2550 x 3450 mm |
| Color | Customer's requests |

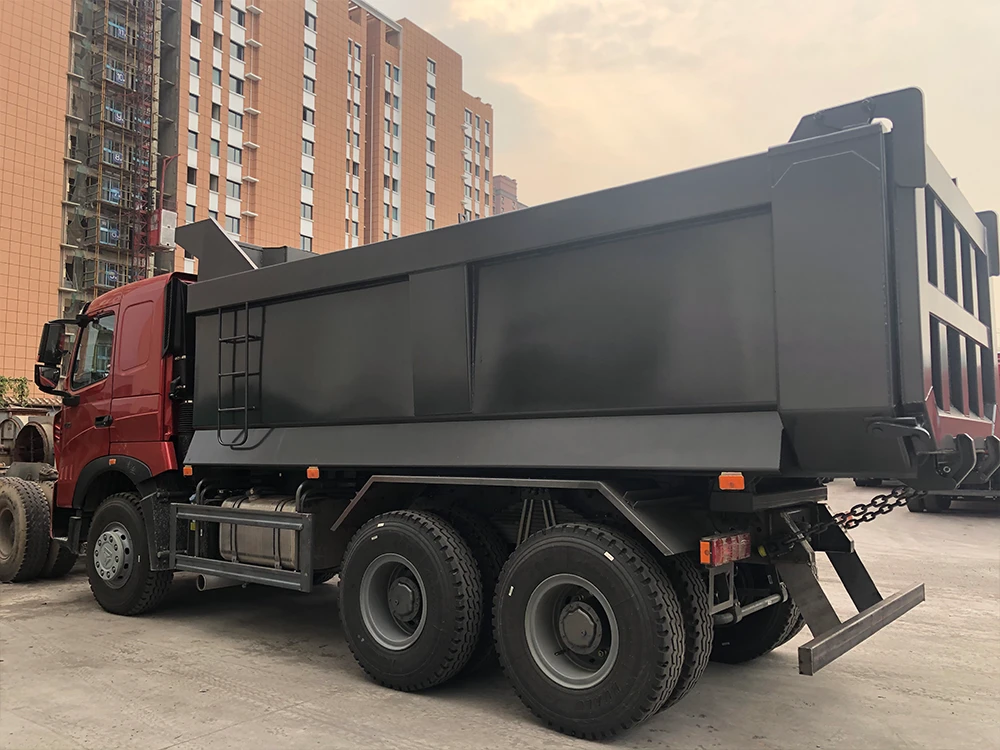

6×4 420HP Special purpose Dump truck
6×4 420HP Special purpose Dump truck

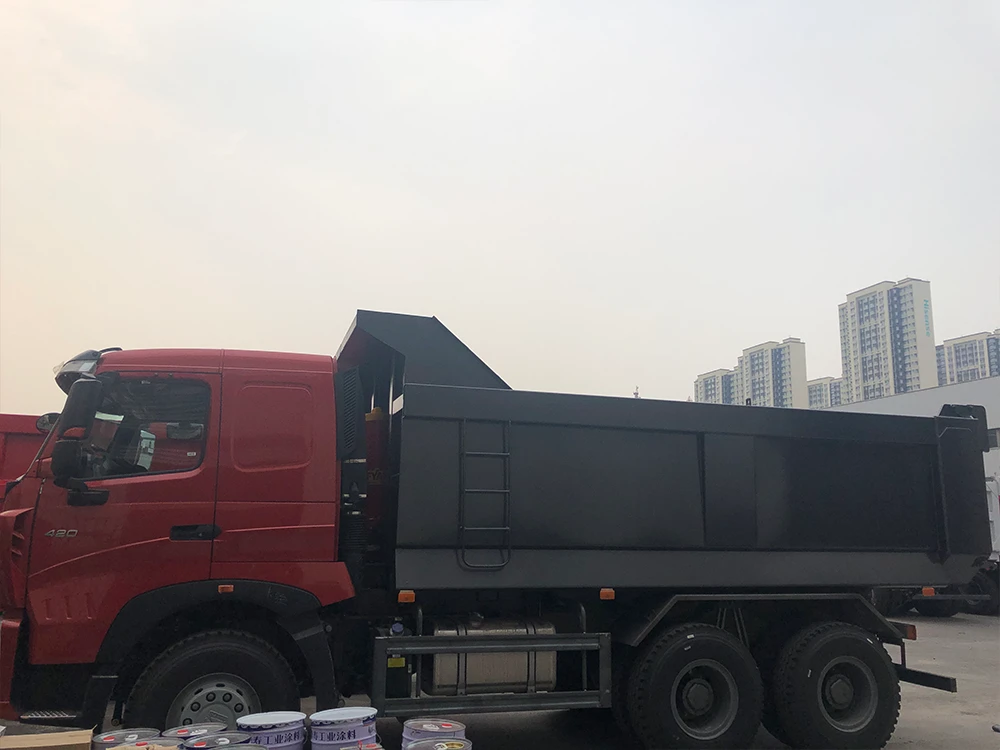

6×4 420HP Special purpose vehicle Dump truck side view

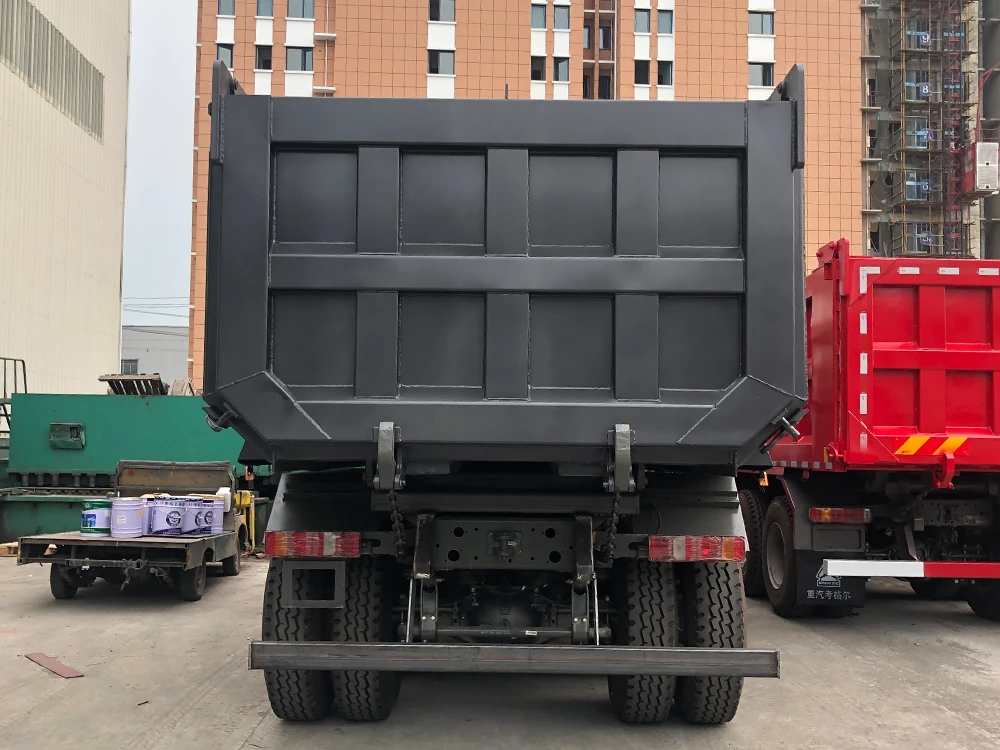

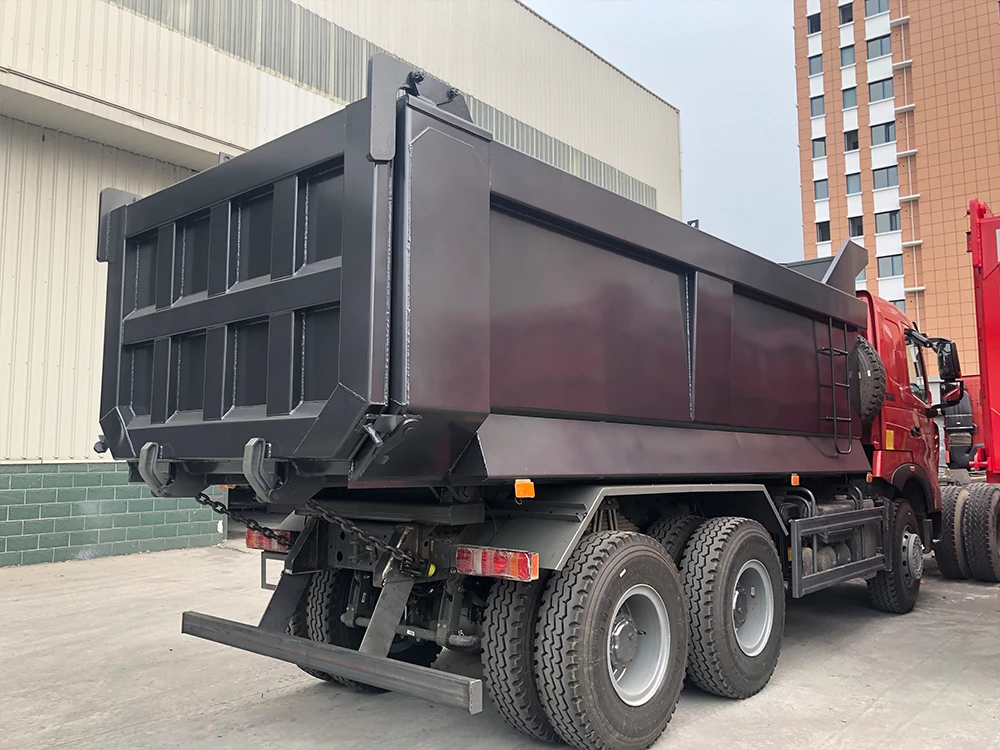

6×4 420HP Special purpose vehicle Dump truck rear view
6×4 420HP Special purpose vehicle
All of our products are fully refurbished to meet international standards, and any parts can be customized by customer’s requests. Our technical team provides comprehensive support for customization and can assist with regulatory compliance documentation for your specific market. For fleet purchases, we offer special pricing and extended warranty packages with global service network coverage.
