Sinotruk HOWO 6×4 Right-hand drive dump truck

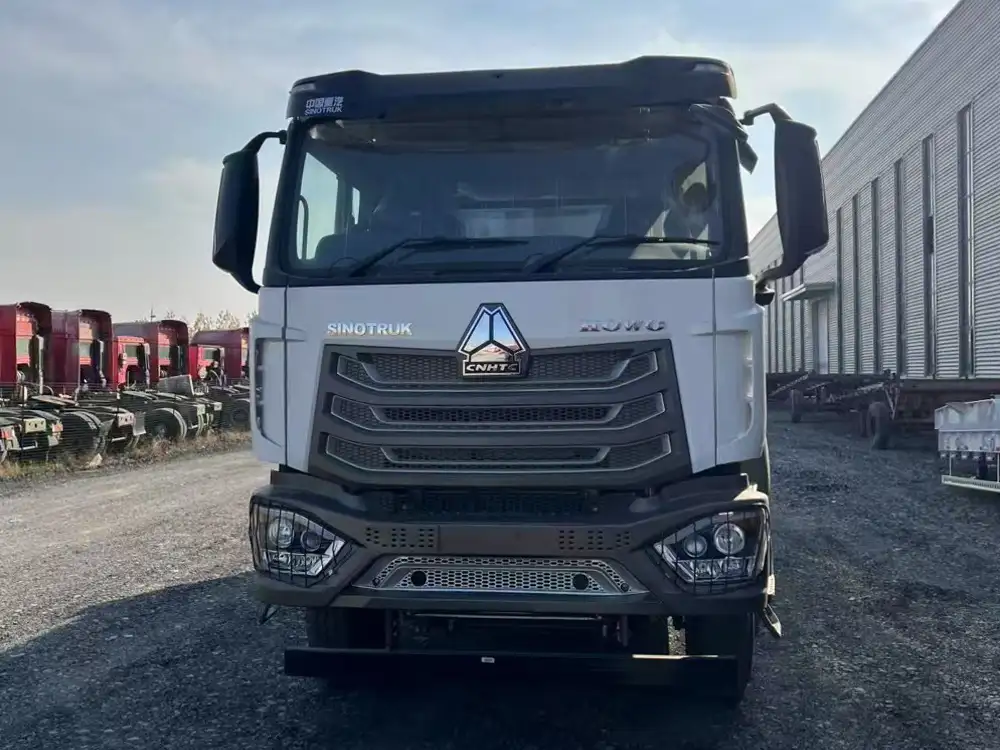

This is a photo of a premium HOWO 6×4 Right-hand drive dump truck featuring a distinctive right-hand drive configuration with modern headlight design protected by stylish lamp covers. The sleek white exterior, robust chassis, and spacious cargo body make it ideal for heavy-duty construction and mining applications in right-hand traffic countries. The truck’s loading capacity, body dimensions, and exterior color can all be customized based on your specific operational requirements.
Sinotruk HOWO 6×4 Right-hand drive dump truck Description:
NX dump truck represents a specialized solution designed for international markets with right-hand traffic regulations. Its 6×4 drive configuration provides excellent balance between traction, stability, and maneuverability in confined worksites. The distinctive right-hand drive positioning makes it ideal for markets including the UK, Australia, Japan, and other countries where right-hand driving is standard. The modern front design features protective lamp covers that enhance visibility while protecting against debris damage during construction operations.
| Product Name | Howo NX 6×4 Dump Truck |
|---|---|
| Model | ZZ3257V384JB1 |
| Engine | Engine model : WP10.400E22 , 400 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :30600 Dead weight (kg): 15270 Gross vehicle weight (kg): 45000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , Front lift |
| Overall Size | 8500 x 2550 x 3450 mm |
| Color | Customer's requests |
HOWO 6×4 Right-hand drive dump truck
HOWO RHD 6×4 NX dump truck side view
HOWO RHD 6×4 NX dump body

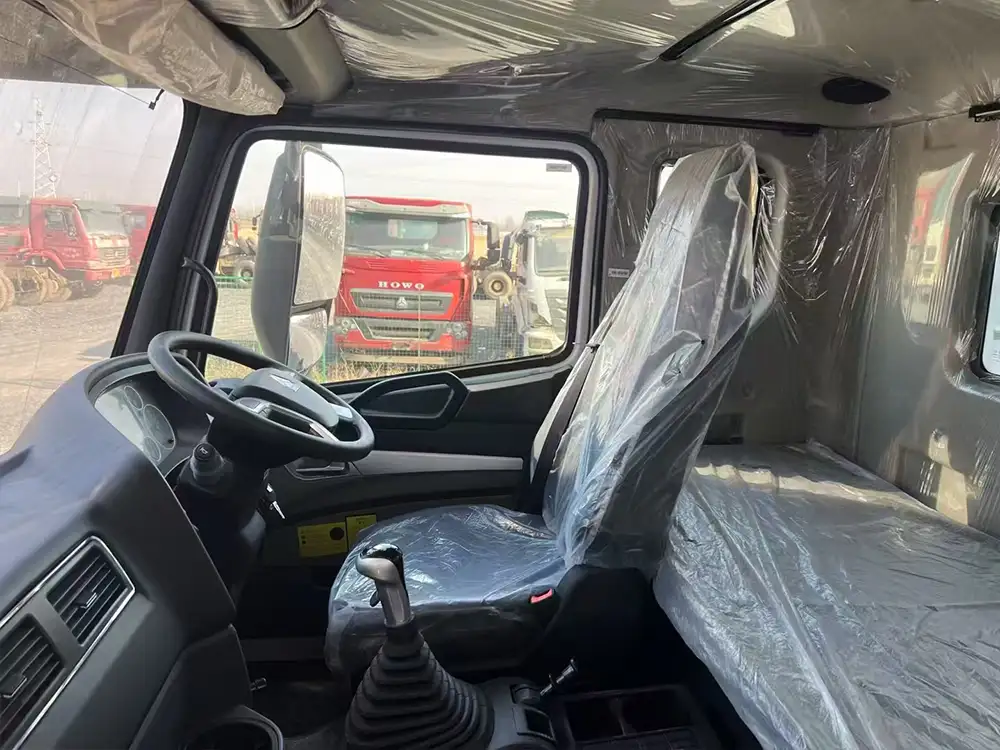

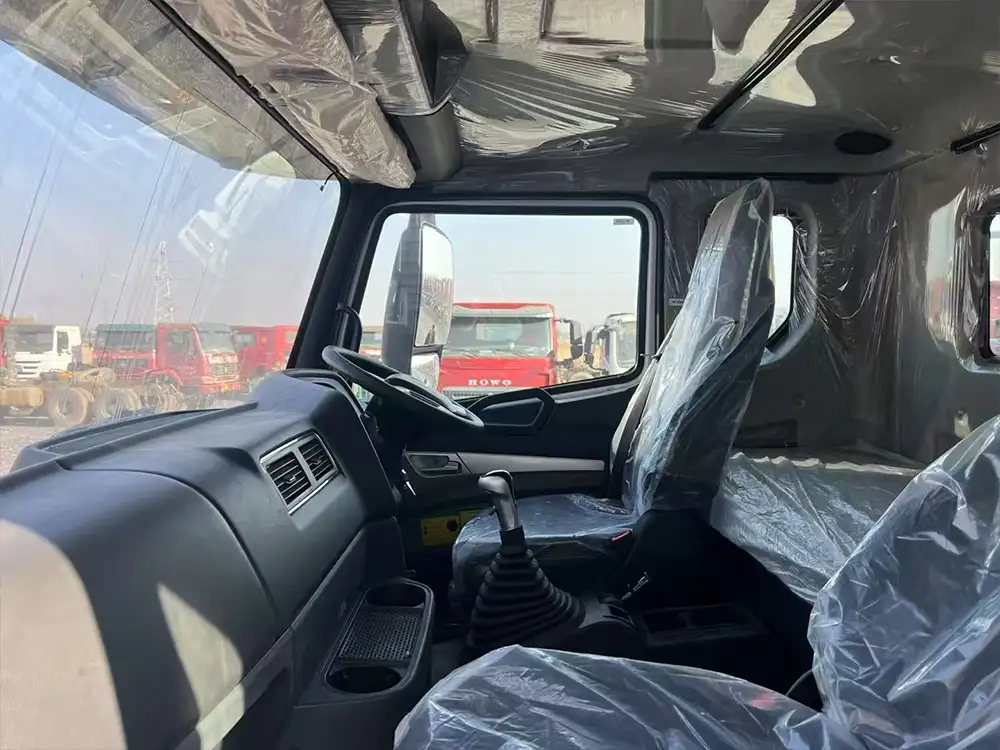

cab of dump truck
Detail view

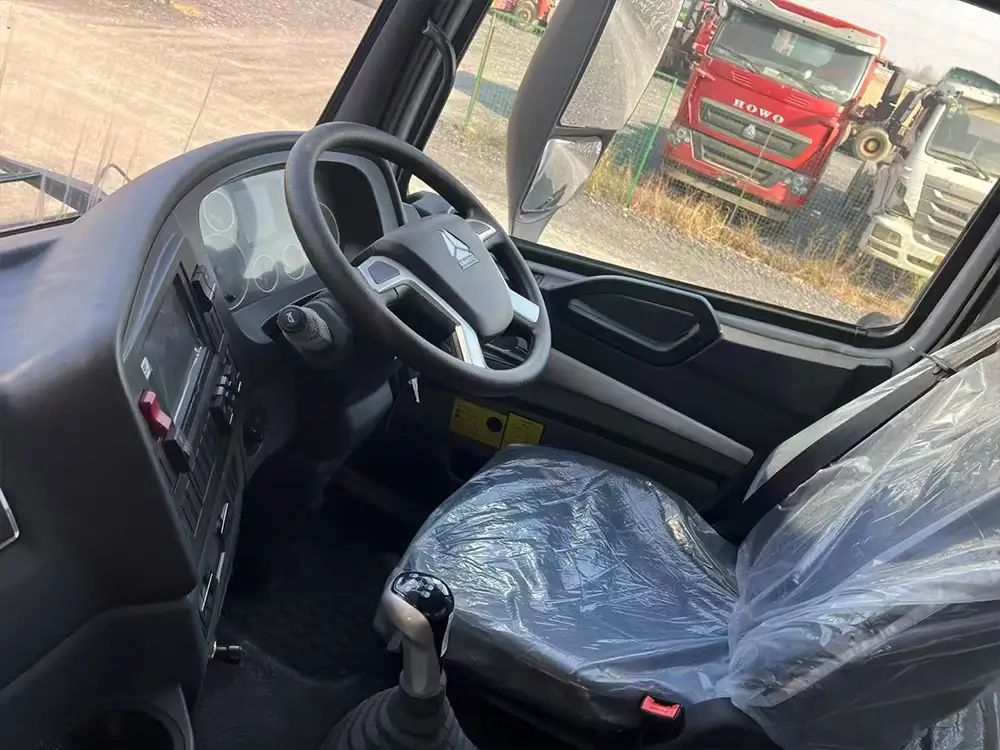

right-hand drive
All of our products are fully refurbished to meet international standards, and any parts can be customized by customer’s requests. With different configurations (engine upgrades, tire options, cargo body materials), we have varying quotations for the Howo NX 6×4 dump truck. In Zonhan, there will always be a solution that matches your operational requirements and budget constraints. Our technical team provides comprehensive support for right-hand drive vehicle compliance in your specific market and can assist with regulatory documentation. For fleet purchases, we offer special pricing and extended warranty packages with global service network coverage.
