Sinotruk Howo 6×4 371HP Front-lift Dump Truck Equipped with Lower Bumper
This is a photo of the Sinotruk Howo 6×4 371HP heavy-duty front-lift dump truck, featuring a protective lower bumper for rugged terrain.
Sinotruk Howo 6×4 371HP Front-lift Dump Truck Equipped with Lower Bumper Description:
The Sinotruk Howo 6×4 371HP Front-Lift Dump Truck is engineered for demanding off-road applications, combining robust performance with superior durability. At its heart lies a powerful 371 horsepower engine, delivering ample torque for efficient loading and hauling on challenging terrain. The reinforced chassis and 6×4 drive configuration ensure exceptional stability and traction under heavy loads. A standout feature is the integrated lower bumper, designed to provide critical protection to the front undercarriage and cooling system from impacts with rocks, debris, and uneven ground, significantly enhancing vehicle longevity in harsh operating environments.
This model utilizes a reliable front-lift dumping mechanism, which offers a more direct force application for faster and more stable tipping cycles compared to traditional side-lift designs. This results in increased operational efficiency and reduced cycle times on sites like mining, quarrying, and large-scale construction projects. The optimized hydraulic system ensures smooth and controlled lifting, while the strategically placed lower bumper safeguards vital hydraulic lines and components during dumping operations close to embankments or in confined spaces, minimizing downtime and maintenance costs.
This model utilizes a reliable front-lift dumping mechanism, which offers a more direct force application for faster and more stable tipping cycles compared to traditional side-lift designs. This results in increased operational efficiency and reduced cycle times on sites like mining, quarrying, and large-scale construction projects. The optimized hydraulic system ensures smooth and controlled lifting, while the strategically placed lower bumper safeguards vital hydraulic lines and components during dumping operations close to embankments or in confined spaces, minimizing downtime and maintenance costs.
| Product Name | Howo 6×4 Dump Truck |
|---|---|
| Drive Type | 6×4 |
| Engine | Engine model : WD615.47, 371HP , Euro 2 emission standard, 4 stroke injection diesel engine ,6 cylinder in-line with water cooling,turbo-charging & inter cooling , common rail Maximum output : 272 KW Maximum torque : 1900N.m Displacement: 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tires | Number of tires: 10, Rims: 8.5-20, 10 hole-steel, Types: 12R22.5 or based on customer's requests |
| Driver's Cab | Long cab, all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3825 Front wheel track (mm) : 2022 Rear wheel track (mm): 1860 / 1860 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 17 Departure angle(°) : 20 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8600 x 2550 x 3450 mm |
| Color | Customer's requests |

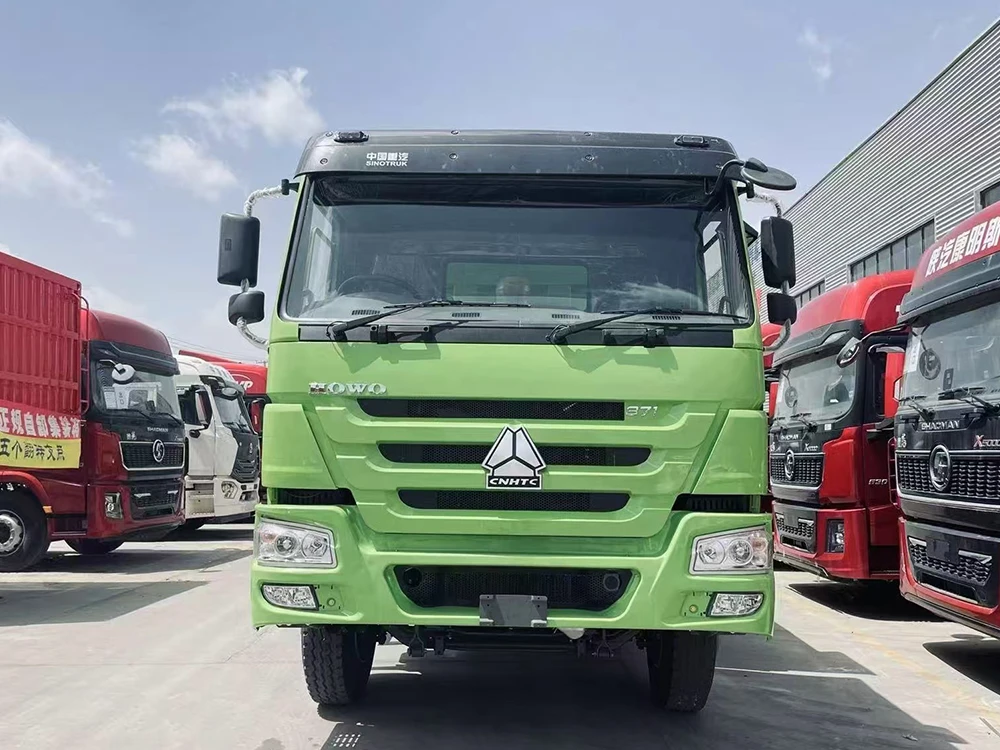

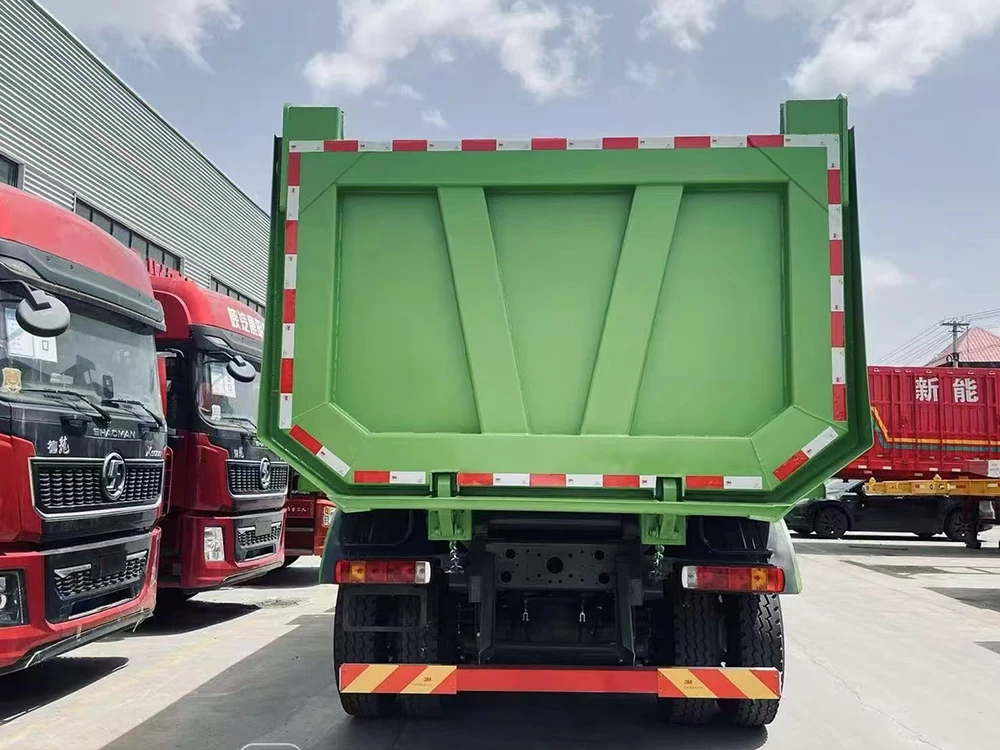

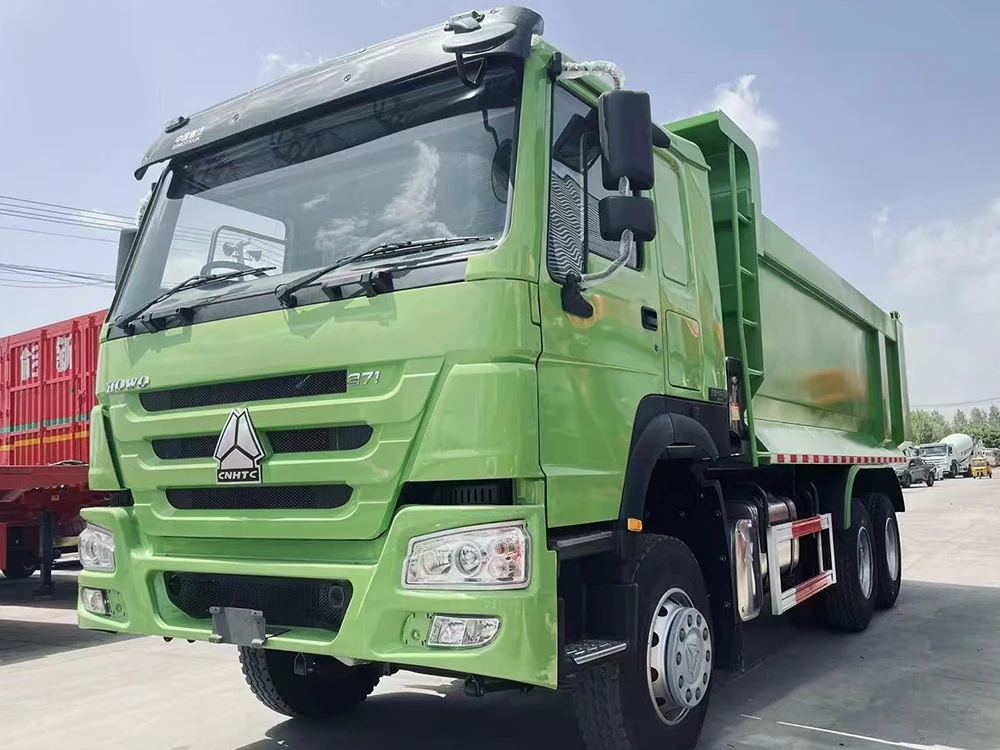

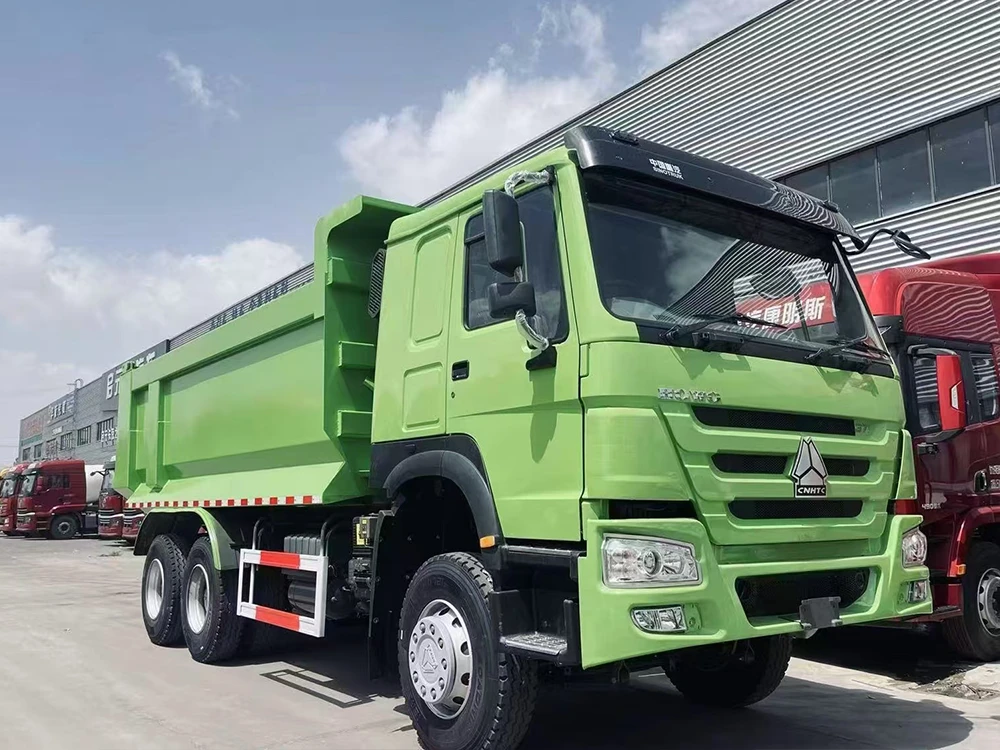

Sinotruk Howo 6×4 371HP Front-lift Dump Truck Sinotruk Howo 6×4 371HP Front-lift Dump Truck front viewSinotruk Howo 6×4 371HP Front-lift Dump Truck side view
To receive detailed specifications, competitive pricing, and discuss how this robust hauler can optimize your fleet’s productivity, contact our sales team today for a prompt consultation and quotation.
