8×4 Shacman F3000 375hp Dump Truck for Sale
8×4 Shacman F3000 375hp Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The configurations like horse power, loading capacity, color of truck body, etc. Are all costumizable.
8×4 Shacman F3000 375hp Dump Truck for Sale Description:
8×4 Shacman F3000 375hp Dump Truck is dedicated to work in conditions like construction site, mining, minerals transprtation, etc. The main advantage of it is high efficiency and low cost transportation.
The big horse power engine helps it get a big torque in low speed which will make it suitable for climb the ramp. The transmission and drive axles help to increase the efficiency of motivation transfer to accomplish fast speed unload. And with a low center of gravity, it will reduce the cost of tyres and maintain.
| Product Name | 8x4 Shacman F3000 375hp Dump Truck |
|---|---|
| Engine | Engine model : WP12.375 , 375 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 11.596 L |
| Clutch | Ф430 Diaphragm type, hydraulically operating with air assistance |
| Transmission | Transmission , model FAST 12 Speeds, Manual |
| Front Axle | 7.5 Ton Man axle, with drum brake system |
| Rear Axle | 16 Ton MAN double reduction axle, single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8098 , hydraulic steering with power assistanceRatio : 4.769 –5.92 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | F3000 Flat Cabin , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 1800+3575+1400 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :900000 Dead weight (kg): 15270 Gross vehicle weight (kg): 85000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 77 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 7500 * 2300 * 1500 , bottom 8mm , side 6mm , Front lift |
| Overall Size | 10600x2490x3450 mm |
| Color | Customer's requests |

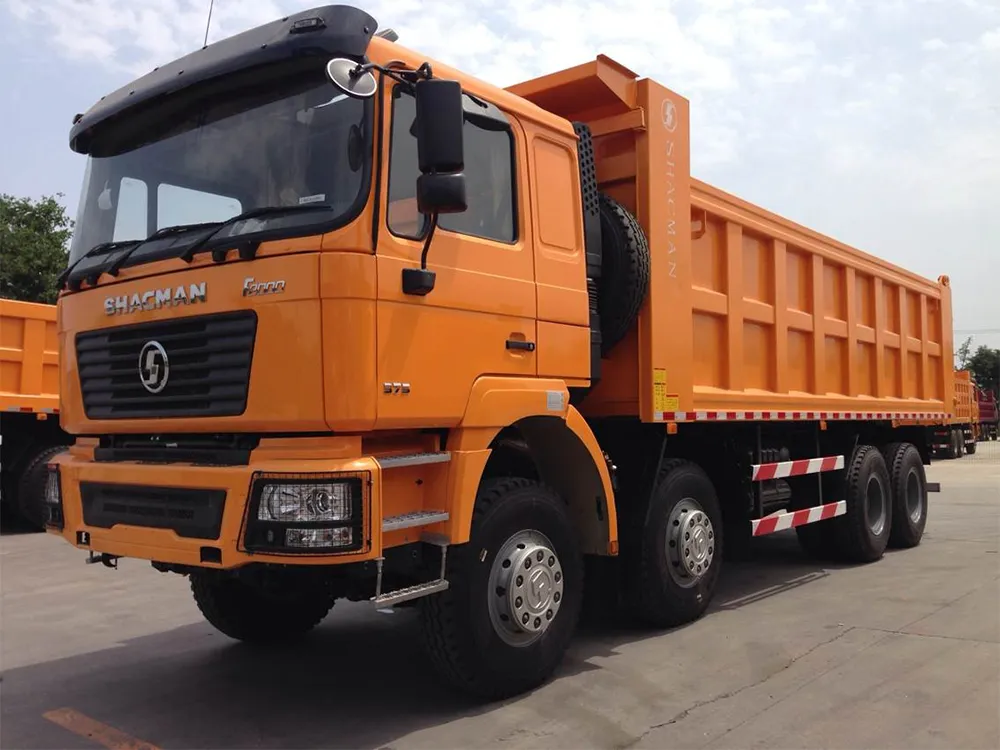

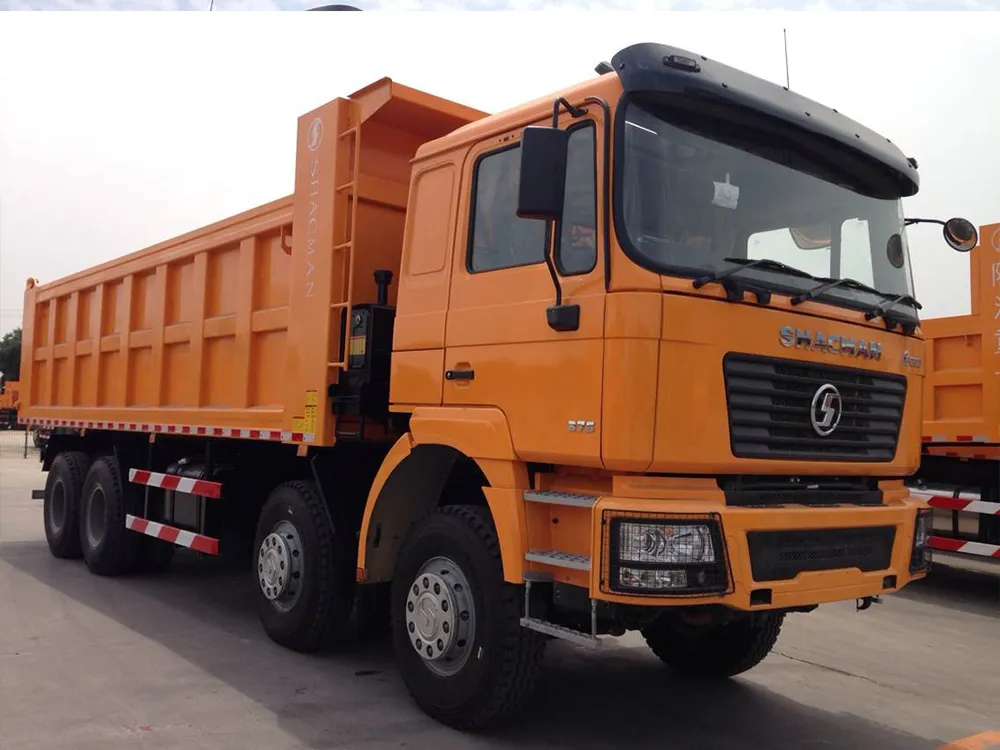

8×4 Shacman F3000 375hp Dump Truck front view
high efficiency and low cost transportation

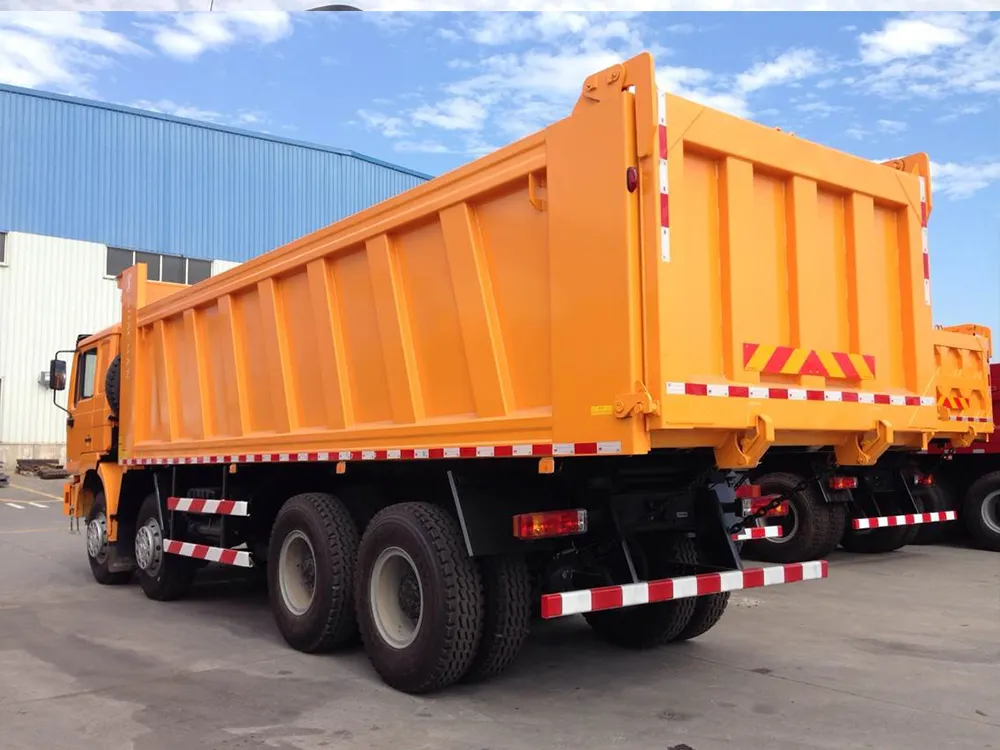

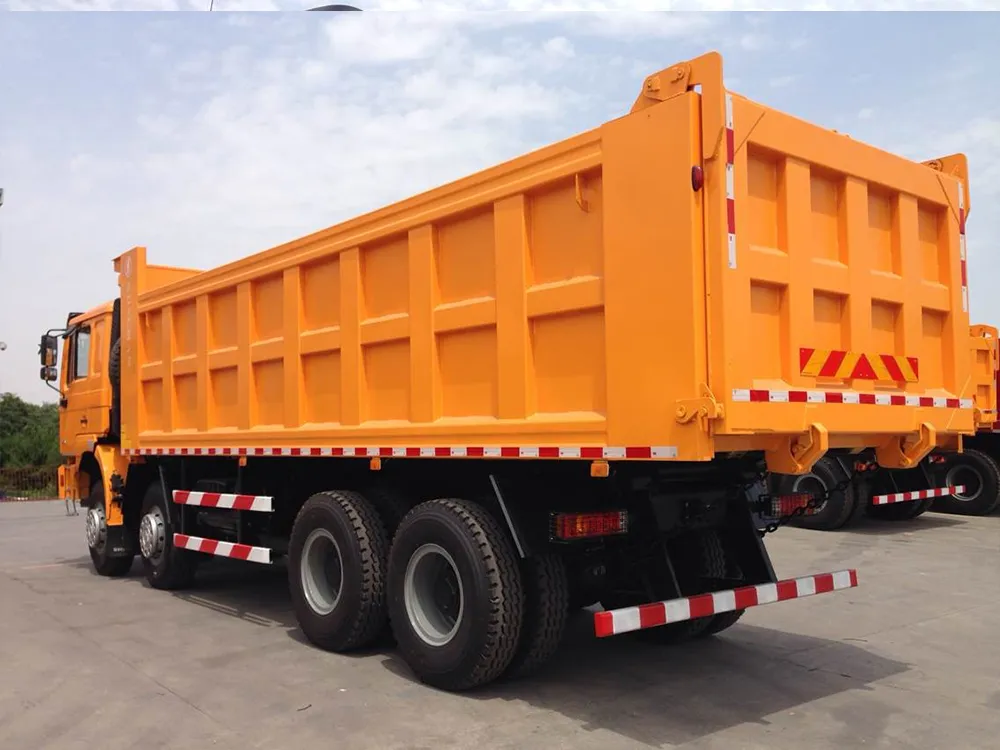

8×4 Shacman F3000 375hp Dump Truck back view
fast speed unload
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
