Good Quality Sinotruk Howo 371 HP 6×4 Dropside Cargo Truck 10 Wheeler
Good Quality Sinotruk Howo 371 HP 6×4 Dropside Cargo Truck 10 Wheeler Description:
Description of Sinotruk Howo 371 HP 6×4 Dropside Cargo Truck
Dropside cargo truck is designed with detachable side walls and a bulkhead to protect the cargo inside. It is widely used to hual general cargo, livestock and other bulk items. Waterproof cover and slider roof can be equipped as option for valuable goods protection. Suitable for heavy goods such as material and dinas.
This product is a commercial vehicle dedicated for heavy duty transportation. Carry with 371 horse power and WD615 engine which provide strong power, the speed can reach up to 85-100km/h, and makes it suitable for long distance transportation and great stability through complex road condition. The size of cargo box is 7.2m*2.5m*1m (changable as customer’s requirements), and loading range is up to 25 tons. Dropside design helps to unload the goods faster which will increase the efficiency of your work. The fuel consume is about 20L per 100 km, helps to reduce your operarion costs.
| Product Name | HOWO Cargo Truck |
|---|---|
| Model | ZZ1257N4341W |
| Engine | Engine model: WD615.47,371hp, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system Maximum output: 371PS (273kW) at 2000 rpmMaximum torque: 1560Nm at 1200-1500rpm Bore: 126mmStroke: 130mmDisplacement: 9.726L |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverseRatio: 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| Wheelbase | 4300mm, can support max 7.5m length of cargo box. |
| Steering | ZF8118, hydraulic steering with power assistanceRatio: 22.2-26.2:1 |
| Wheels&Tyres | Rims: 8.5-20,10 hole-steelTypes: 12.00R20 |
| Driver'sCab | Long cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm): 4325+1350,4300+140 0Front wheel track (mm): 1500/2625, Rear wheel track (mm):2600 Overhang(front/rear) (mm):1500/2734 Approach angle(°):16 Departure angle(°):15 Overall Dimension (mm): 9800x2496x3048 |
| Weight in kg | Permissible loading capacity (kg):1745 0Dead weight (kg):13420 Gross vehicle weight (kg):31000 Front axle loading capacity (kg):9000 Rear axle loading capacity (kg):2*16000 |
| Performance | Maximum driving speed(km/h):90(reference data) Maximum gradeability (%):36 Minimum ground clearance(mm):243 Minimum turning radius (m):11.2 Fuel consumption(L/100km):60(reference data) |
| Cargo body | Customized |

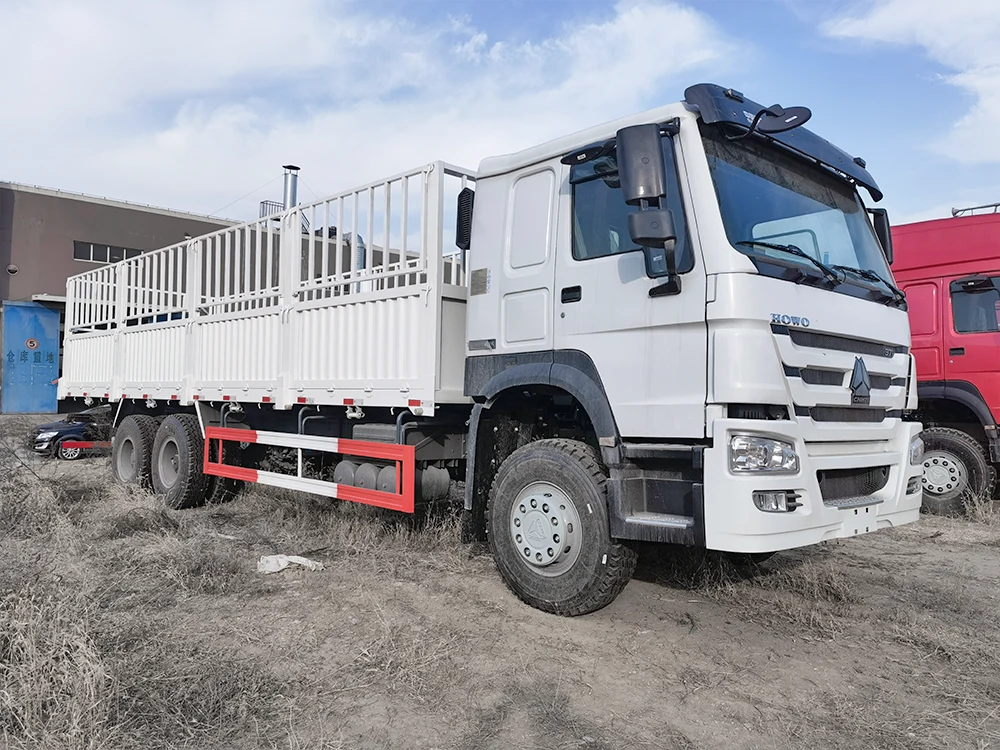

Dropside cargo truck
Dropside design
371 horse power
valuable goods protection

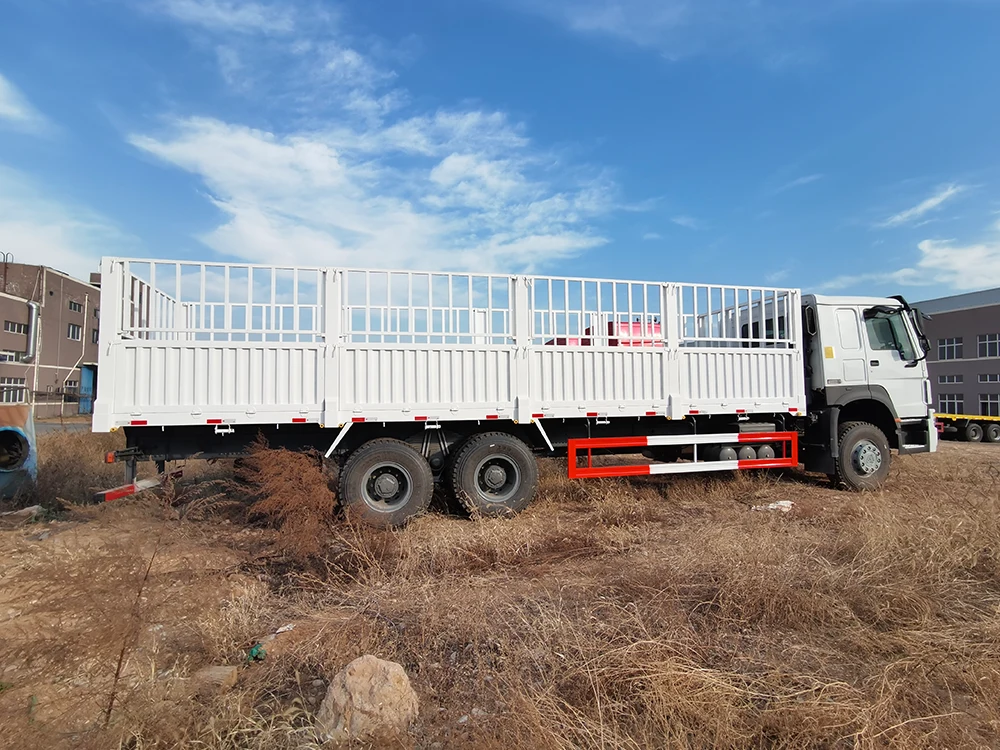

Dropside cargo truck side view
