Specialized Howo 8×4 Timber Transport Truck 380hp
Howo 8×4 Timber Transport Truck is specialized for timber transportatoin with big capacity, strong power, high economic efficiency and safty. The sprcifications like horse power, drive type, color of truck body are all customizable.
Specialized Howo 8×4 Timber Transport Truck 380hp Description:
Howo 8×4 Timber Transport Truck is dedicated for transportation of woods and logs with high efficiency, safty and in large quantities. It’s specially suitable for long term transportation and complex road condition.
The main function of it is big capacity transportation, with 8×4 drive type it got more axles and helps it got a high carrying ability. It can carry more woods in one time which makes it reduce the costs. And 380 big horse power makes it performe well in climb the ramp and cross-country, which fits forest area unpaved roads.
| Product Name | Howo 8x4 Timber Transportation Specialized Truck 380hp |
|---|---|
| Engine | Engine model : WP10.380E22 , 380 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 280 kW at 2200 rpmMaximum torque : 1600 Nm at 1500 - 1800 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver's Cab | HW76 Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :18600 Dead weight (kg): 15200 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Frame/Beam | Double layer high strength steel enhanced version( 8+8/300mm) |
| Overall Size | 10745*2500*3670 mm |
| Color | Customer's requests |

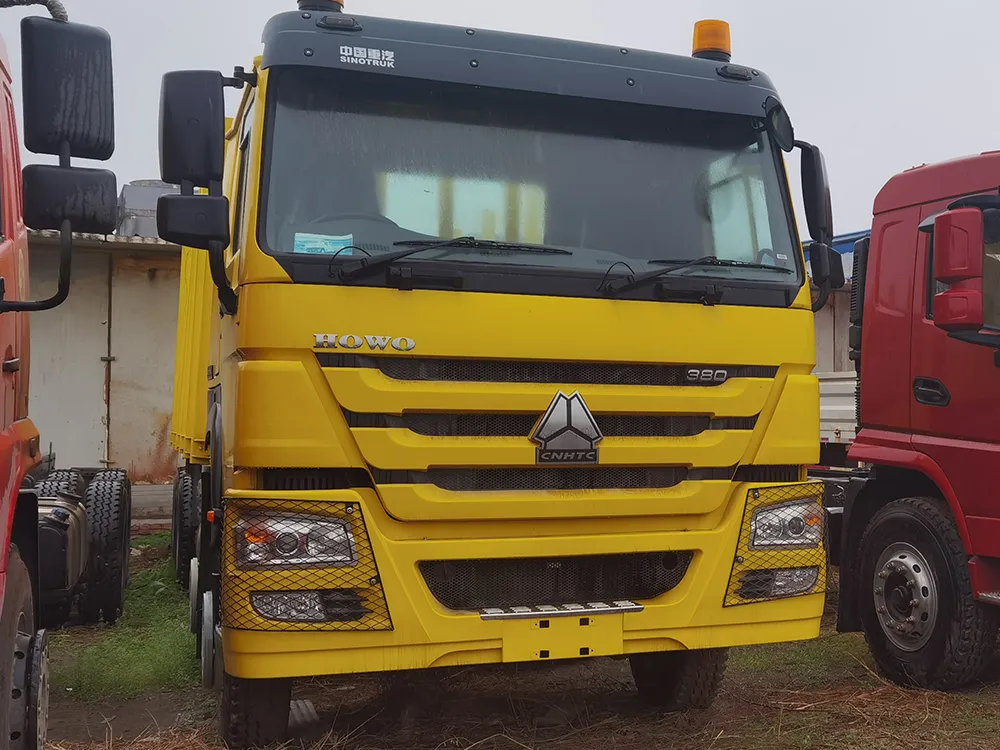

Howo 8×4 Timber Transport Truck front view
suitable for long term transportation and complex road condition
dedicated for transportation of woods and logs with high efficiency
The fence is used to secure the wood
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
