Howo 6×4 336hp Truck Crane with Big Discount
Howo 6×4 336hp Truck Crane with big horse power engine it can face the challenge with heavy duty crane work easily. The integration design with transportation and crane save the cost of extra equipments, help you highly increase the efficiency of work.
Howo 6×4 336hp Truck Crane with Big Discount Description:
Howo 6×4 336hp Truck Crane is a heavy duty specialized vehicle designed for high strength lifting and transportation operations. It’s mainly used to work in engineering construction site, engineering machinery transpotation, infrastruction constrction, etc. It can finish the transportation work and lifting work one time with high efficiency.
With 336 horse power engine it got a high power take off, combine with 6×4 drive type and big torque transmission it can fit the needs with heavy duty crane and complex working condition.
| I. Basic Vehicle Specifications | |
|---|---|
| Model | ZZ5257JSQM4647B1 |
| Emission Standard | Euro II |
| Drive Type | 6×4 (Tri-axle, dual rear-drive) |
| Wheelbase | 5800 + 1350 mm |
| Overall Dimensions (including canopy poles) | 11990 × 2500 × 3850 mm |
| Cargo Box Dimensions | 8350 × 2400 × 600 mm |
| Gross Vehicle Weight (GVW) | 25000 kg |
| Curb Weight | 12500 kg (with stake fence) / 15000 kg (with crane) |
| Rated Payload | 12370 kg (without crane) / 9770 kg (with crane) |
| II. Power System | |
| Engine Model | WD615.36 (Steyr Series) |
| Fuel Type | Diesel |
| Maximum Horsepower | 336 hp |
| Rated Power | 247 kW at 2200 rpm |
| Maximum Torque | 1350 N·m at 1100-1600 rpm |
| Displacement | 9.726 L |
| Cylinder Configuration | In-line 6-cylinder, water-cooled, 4-stroke |
| Fuel System | Mechanical Type P Pump, no urea injection system |
| III. Transmission System | |
| Gearbox | HW19710 (10 forward gears + 2 reverse gears) |
| Power Take-off (PTO) | HW70 PTO (supplies power to the crane) |
| Clutch | Φ430 mm diaphragm spring clutch, hydraulic-pneumatic assistance |
| Steering System | ZF8098 Power Steering |
| IV. Chassis & Load-Bearing System | |
| Front Axle | HF9 (9-tonne class) |
| Middle & Rear Axles | AC16 wheel reducer axles (twin 16-tonne class) |
| Rear Axle Ratio | 4.42 / 5.45 |
| Frame | Double-layer main beam (8+5/300 mm) |
| Suspension | Multi-leaf steel springs (10 front / 12 rear leaves) + hydraulic shock absorbers |
| Tires | 12.00R20 steel radial tires (10 units including spare tire) |
| Braking System | Drum brakes (front disc, rear drum), equipped with ABS |
| V. Upper Body Equipment (Stake Fence + Crane) | |
| Cargo Body Type | Stake fence cargo truck (high fence / lattice fence) |
| Cargo Body Material | High-strength manganese steel floor + section steel columns |
| Side Rail Structure | Double-layer stake fence (lower layer 600mm + upper layer 600-800mm) |
| Column Spacing | Approx. 1000 mm (detachable) |
| Top Canopy Poles | Steel tube canopy poles (detachable, for tarpaulin covering) |
| Side Panel Operation | Both side rails can be tilted down for convenient loading/unloading |
| Crane Type | Knuckle boom truck-mounted crane (yellow as shown in pictures) |
| Crane Lifting Capacity | 8-10 tonnes |
| Crane Model | XCMG / Sany / Shimai SQS300/350 |
| Working Radius | Max. 13-16 meters |
| Hydraulic Outriggers | H-type front and rear outriggers (span approx. 7.2 meters) |
| VI. Cab & Configurations | |
| Cab | HW76 Extended Cab (with black sun visor) |
| Seat | Air-suspension driver's seat |
| Sleeper | Single sleeper |
| Air Conditioner | Heating & cooling air conditioner |
| Other Equipments | Power windows, central locking, radio |
| Fuel Tank | 400 L aluminum alloy fuel tank |
designed for high strength lifting and transportation operations
steady construction firm frame

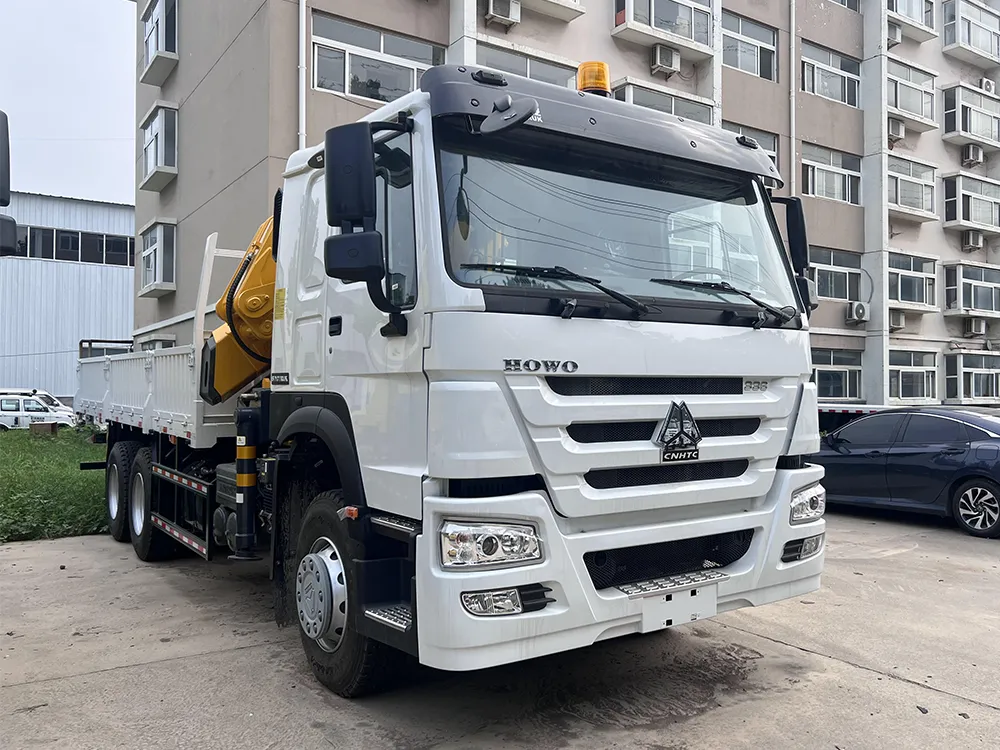

Howo 6×4 336hp Truck Crane front view

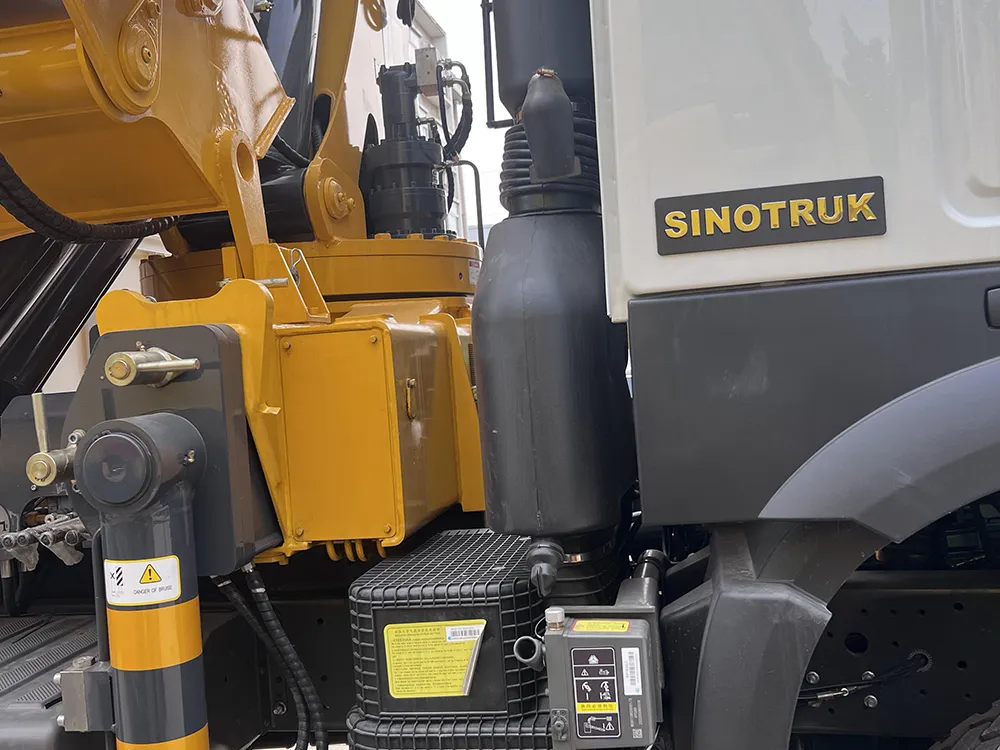

XCMG big loading capacity crane
big capacity cargo box
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
