Best Military green 4×2 SHACMAN F2000 dump truck
This is a photo of a premium 4×2 SHACMAN F2000 dump truck featuring a distinctive military green exterior with red-and-white reflective safety strips and yellow-red warning markings. The 4×2 configuration and robust cargo body make it ideal for construction and mining operations in demanding environments.
Best Military green 4×2 SHACMAN F2000 dump truck Description:
4×2 SHACMAN F2000 dump truck represents a reliable engineering solution designed for challenging construction applications. Its 4×2 drive configuration provides excellent maneuverability while maintaining stability on rough terrain. The military green exterior enhances visibility in various working conditions, while the spacious cargo body (6,250 × 2,300 × 1,300 mm) offers maximum payload capacity of 15,000 kg. The 266 HP engine delivers reliable performance for transporting soils, stones, and construction debris. The modern design features protective elements that enhance visibility while protecting against debris damage during operations.
| Product Name | SHACMAN F2000 4x2 Dump Truck |
|---|---|
| Engine | Engine model : WD615.62 , 266 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Transmission | HW13710, 10 Forwards gear & 2 reverse gear |
| Front Axle | VGD95 front axle, with drum brake system |
| Rear Axle | MCX16ZG single rear axle; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 9.00R20 tubeless tyre 7 pcs or 12.00 R20based on customer's requests |
| Driver's Cab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :15000 Dead weight (kg): 15270 Gross vehicle weight (kg): 20000 Front axle loading capacity (kg): 1*3600 Rear axle loading capacity (kg) : 2*8000 |
| Performance | Maximum driving speed (km/h) : 95 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 6250X2300X1300 , bottom 8mm , side 6mm , front lift |
| Overall Size | 8500 x 2500 x 3000 mm |
| Color | Customer's requests |

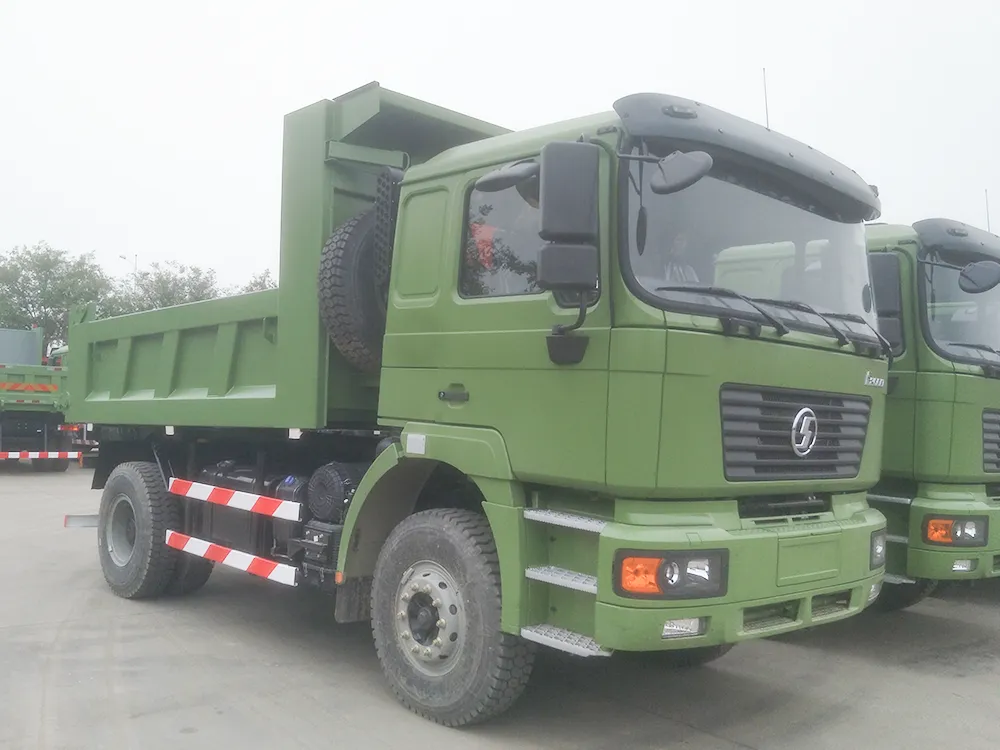

4×2 SHACMAN F2000 dump truck

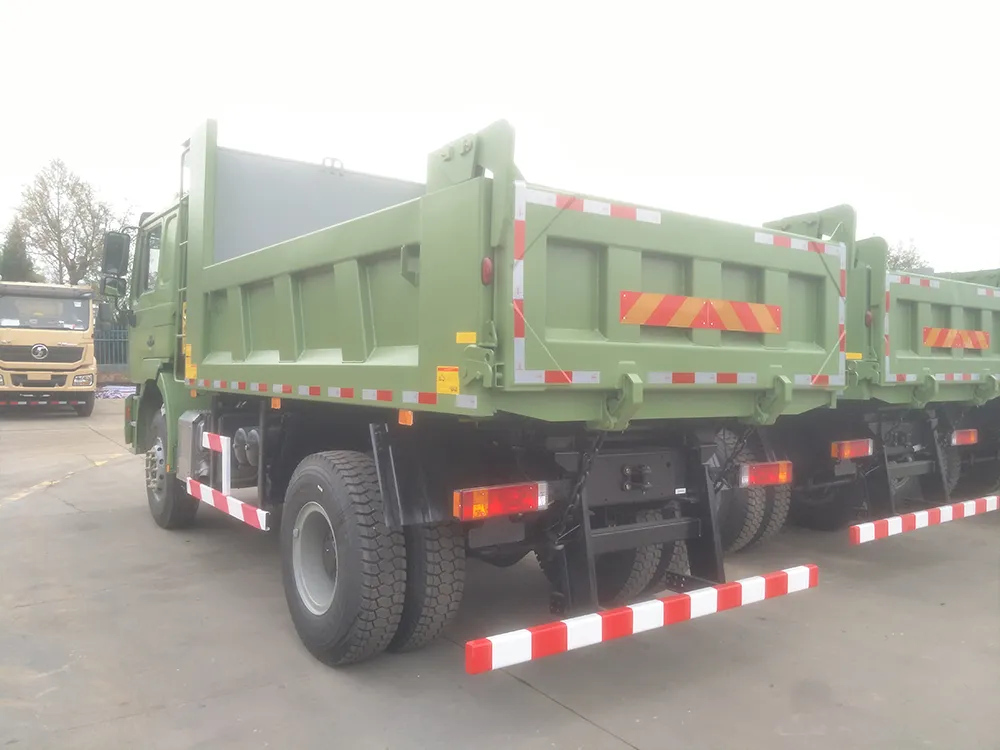

4×2 SHACMAN F2000 dump body

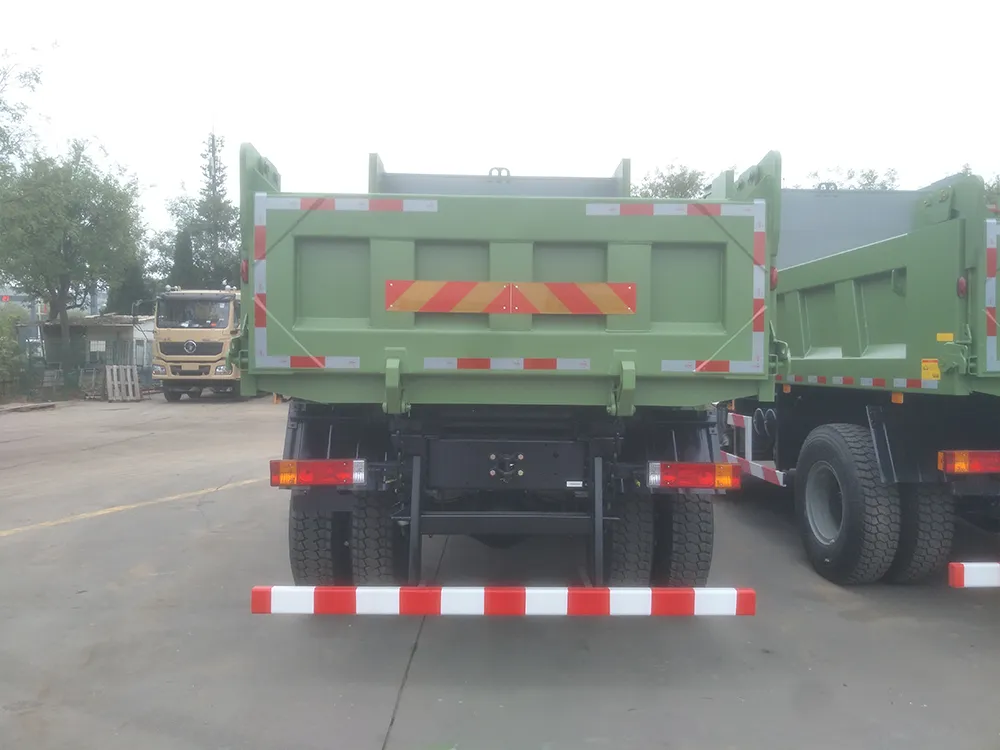

4×2 SHACMAN F2000 dump truck rear view

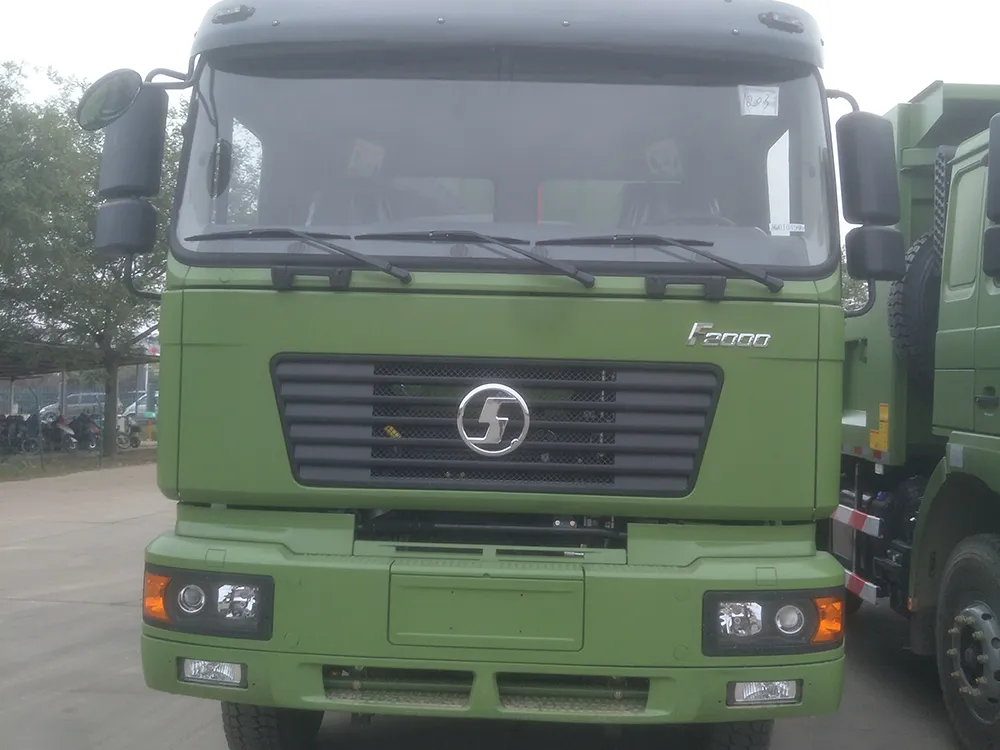

front view

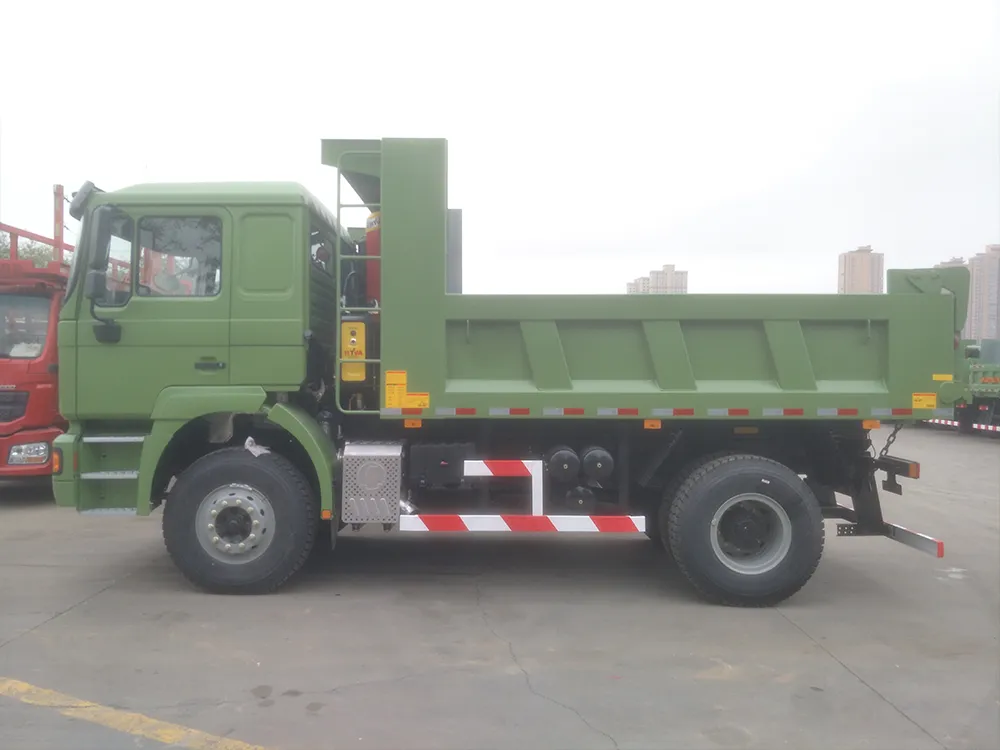

4×2 SHACMAN F2000 dump truck side truck
All of our products are fully refurbished to meet international standards, and any parts can be customized by customer’s requests. With different configurations (engine upgrades, tire options, cargo body materials), we have varying quotations for the 4×2 SHACMAN F2000 dump truck. In Zonhan, there will always be a solution that matches your operational requirements and budget constraints. Our technical team provides comprehensive support for customization and can assist with regulatory compliance documentation for your specific market. For fleet purchases, we offer special pricing and extended warranty packages with global service network coverage.
