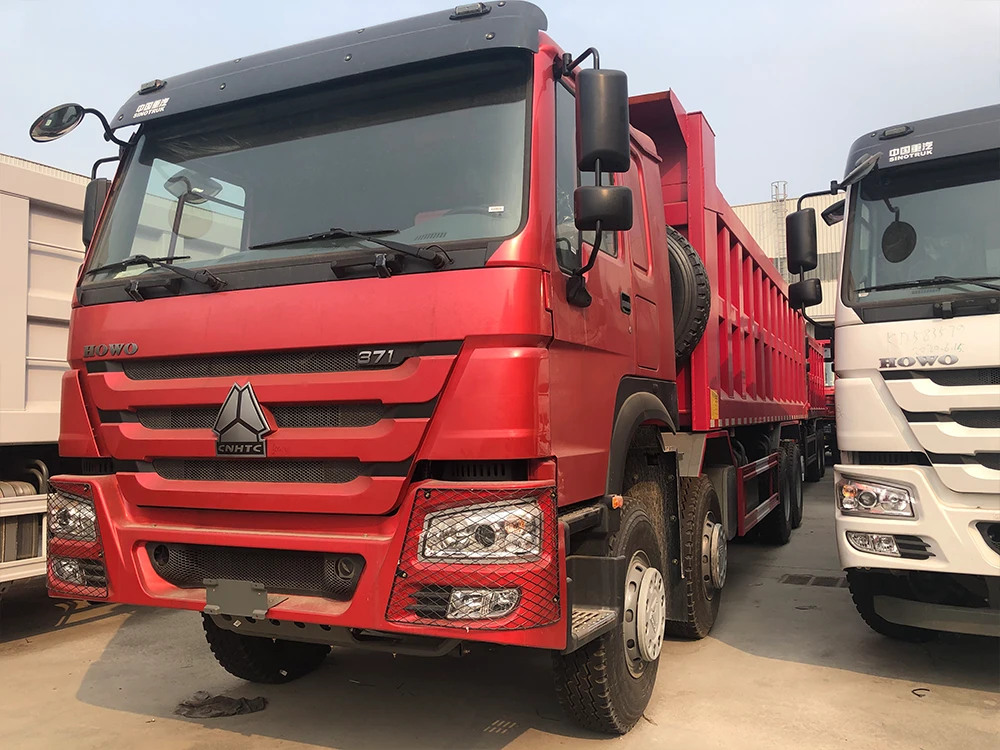

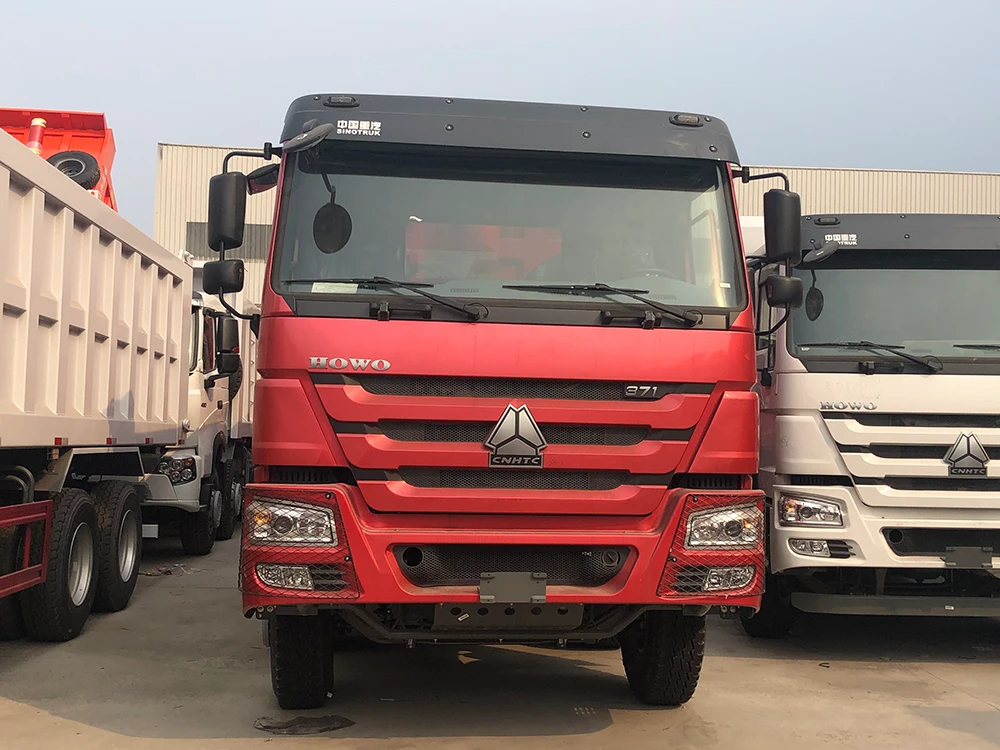

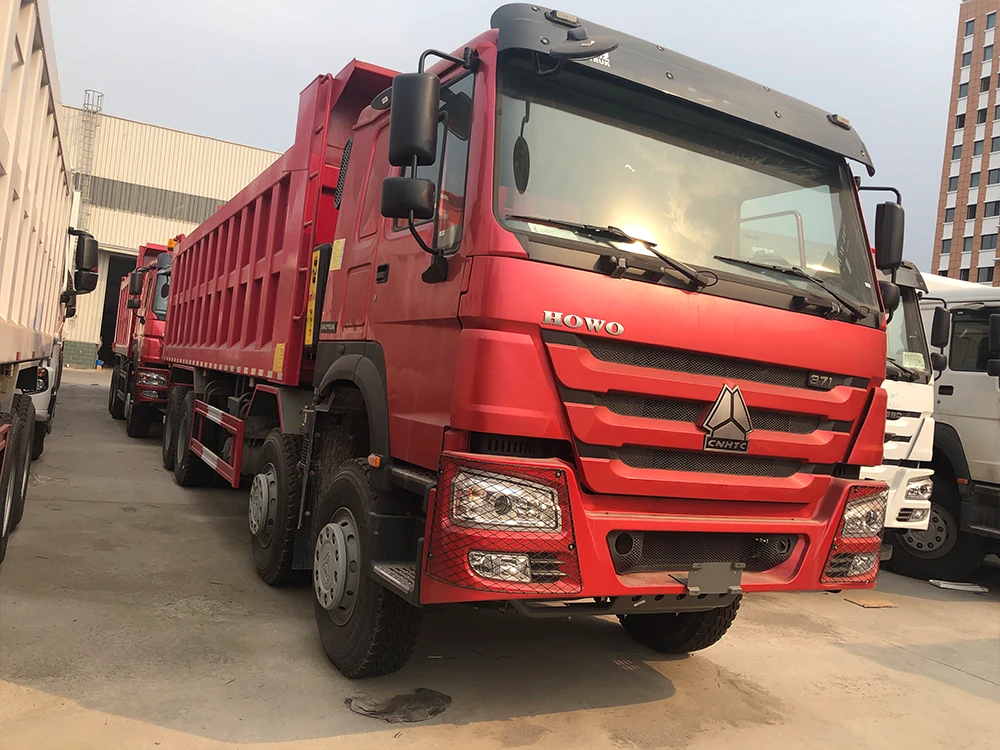

Sinotruk Howo 8×4 371HP used Dump Truck for Sale
In a word, the HOWO 8×4 371HP used Dump Truck is the “king of heavy load” in the field of engineering transportation. It represents a professional solution for extreme load-bearing and harsh working conditions. Choosing it is not for flexibility or economy, but for providing irreplaceable carrying power, passability and reliability in the largest and most arduous projects.
Sinotruk Howo 8×4 371HP used Dump Truck for Sale Description:
This 371HP used Dump Truck is a heavy engineering dump truck in the SINOTRUK HOWO series, which adopts a four-axle (8×4) drive and is equipped with a 371-horsepower engine. It is an “engineering beast” designed to cope with extremely heavy loads and complex and bad road conditions. Its core mission is to efficiently complete the transshipment of a large number of bulk materials such as earth and stone squares and ores.
| Product Name | Howo Dump Truck |
|---|---|
| Model | ZZ3317V3567N1B |
| Engine | Engine model : WP12.400E201 , 400 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system . |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 10500 x 2550 x 3450 mm |
| Color | Customer's requests |
This HOWO 371HP used Dump Truck has top-notch carrying capacity and passability, which is mainly reflected in the strong traction and grip provided by its super load-bearing platform and rear double-axle drive.
This HOWO 371HP used Dump Truck has a strong and reliable power and load-bearing structure. 371 horsepower is a mature choice for heavy dumping conditions, which can provide abundant power output and good fuel economy balance under heavy load. It adopts a double-layer or even three-layer reinforced high-strength steel frame, with an engineering version of the two-stage deceleration heavy rear axle, which can withstand huge impact loads and continuous pressure. Standardly equipped with a large-diameter front top or reinforced F-type hydraulic cylinder to ensure that dozens of tons of goods can be lifted smoothly and vigorously.
