HOWO 6×4 380HP Concrete Mixer Truck 10/12m³ Capacity Weichai Engine for sale
This HOWO 6×4 10/12m³ Capacity concrete mixer truck is powered by a 380HP Weichai engine, delivering reliable performance for construction projects. It features a 10-12m³ mixing tank, heavy-duty suspension, and reinforced frame, making it ideal for transporting concrete over rough terrain.
HOWO 6×4 380HP Concrete Mixer Truck 10/12m³ Capacity Weichai Engine for sale Description:
The HOWO 6×4 380HP 10/12m³ Capacity concrete mixer truck is a robust and high-performance solution for concrete transportation in construction projects. Equipped with a Weichai WD615.46 or WP10.380E32 engine, it generates 380HP and up to 1650N·m of torque, ensuring strong power output even under heavy loads.
The 10/12m³ Capacity mixing tank, finished in white with orange-red decals, maintains concrete homogeneity during transit. Its heavy-duty chassis includes an AC16 tandem rear axle, reinforced frame, and multi-leaf spring suspension, providing exceptional durability and stability on rugged roads. The HOWO Series 7 high-roof cab offers a comfortable sleeper for long-haul operations, while the HW19710 10-speed transmission ensures smooth shifting. With 12.00R20 all-steel tires and a HW70 full-power PTO, this mixer truck is engineered to handle the demands of construction sites worldwide.
| Configuration Item | Technical Parameters & Remarks |
|---|---|
| Model | ZZ1257N464GF1 / ZZ1257M4647B1, 6×4 drive |
| Cab | HOWO Series 7 High-roof Extended Cab, with sleeper, single row |
| Engine | Weichai WD615.46 or WP10.380E32, 380HP / 279kW |
| Maximum Torque | 1460-1650N·m, high torque version |
| Displacement | 9.726L / 9.5L, in-line 6-cylinder, water-cooled |
| Emission Standard | National III / Euro III (mechanical pump or electronic control pump), National II optional for export version |
| Transmission | HW19710 (10 forward gears + 2 reverse gears) or HW19712 (12 gears) |
| Power Take-off (PTO) | HW70 full-power PTO, pneumatic control, special for mixer truck |
| Front Axle | HF9 (9-ton class, disc brake), reinforced type |
| Rear Axle | AC16 tandem axle (16-ton class × 2), drum brake, wheel side reduction |
| Speed Ratio | 4.8 (standard) / 5.73 (heavy load), optional according to working conditions |
| Wheelbase | 5800+1350mm, standard wheelbase for mixer truck |
| Frame | 300×80×(8+5)mm double-layer high-strength steel, reinforced type for mixer truck |
| Front Face | Classic three-piece chrome grille + CNHTC logo |
| Headlights | Combination headlights (protective net optional) |
| Rearview Mirrors | Integral out-swing mirror + wide-angle mirror + down-view mirror |
| Tank Body | 10-12m³, white with orange-red/green decals |
| Tires | 12.00R20 all-steel tires (mine pattern optional) |
| Rims | Aluminum alloy or steel rims |
Front view

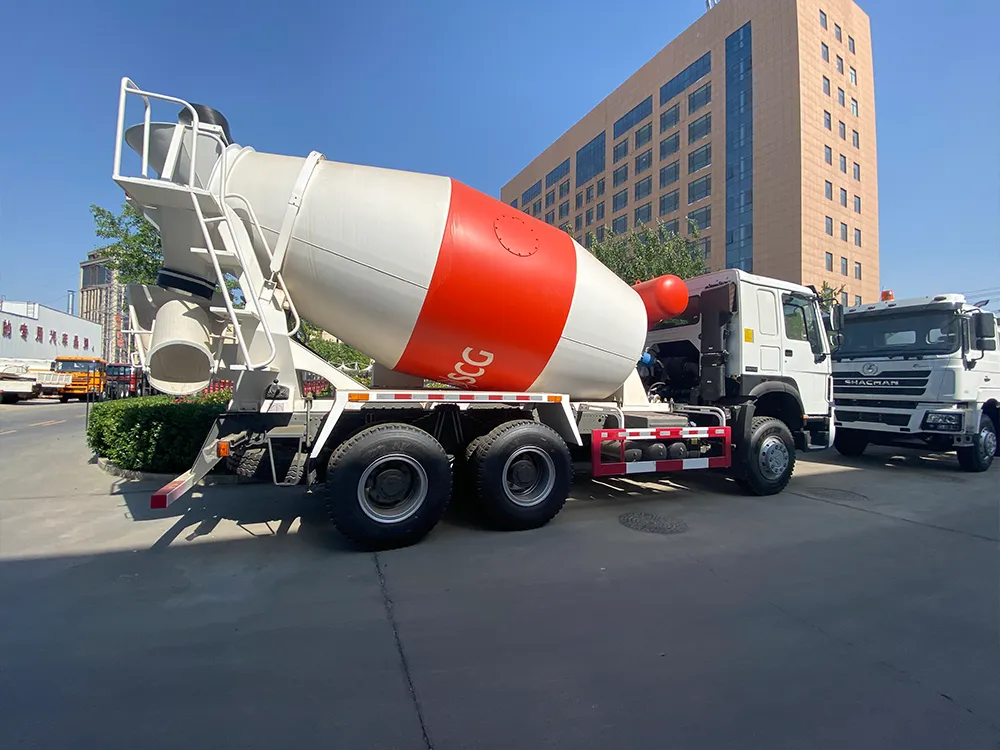

Side view 1
Side view 2
Rear view
Detailed image
Ready to get a quote or learn more about this HOWO 6×4 380HP 10/12m³ Capacity concrete mixer truck? Our team is here to help with custom configurations, shipping details, and after-sales support. Contact us today to start your order!
