HOWO 6×4 Mixer Truck Weichai 400HP 10-12m³ for sale
1. HOWO 6×4 Mixer Truck,Weichai 400HP, 10-12m³ Wear-Resistant Tank, 10-Speed Manual, Suitable for Construction Concrete Transportation.
2. Sinotruk HOWO 6×4 Tandem Rear Axle Mixer Truck, High-Chromium Alloy Blades, National II Emission, Solid Chassis, Efficient Mixing and Discharging.
3. HOWO Mixer Truck 400HP, 16-Ton Tandem Axle, 6mm Thick Tank, ABS Brake, Reliable Quality for Heavy-Duty Engineering Needs.
HOWO 6×4 Mixer Truck Weichai 400HP 10-12m³ for sale Description:
Sinotruk HOWO 6×4 Weichai 400HP mixer truck is a high-performance heavy-duty vehicle for concrete mixing and transportation. It is equipped with a HOWO Series 7 medium-long single-berth cab and adopts 6×4 tandem rear axle drive.
Powered by Weichai WD615.47 engine (Weichai 400HP/294kW, max torque 1460N·m) and matched with HW19710 10-speed manual transmission + HW70 PTO, it has strong power and smooth shifting for harsh construction sites. Adopting the National II/Euro II emission standard with a mechanical pump (no urea system), it features low maintenance costs. The solid chassis includes HF9 9-ton front axle, AC16 16-ton tandem axle (optional speed ratio), and double-layer high-strength alloy girder. The 10-12m³ mixing tank (Q345/520JJ wear-resistant steel, 6mm cylinder, 8mm head) with high-chromium alloy helix blades ensures even mixing and ≤0.5% discharge residue (feeding ≥3m³/min, discharging ≥2m³/min). Equipped with a 400L aluminum fuel tank, 12.00R20 tires, ABS brake, and practical operating configurations, it is reliable, cost-effective, and ideal for construction, road, and bridge projects.
| Item | Specifications |
|---|---|
| Chassis Model | HOWO ZZ1257N4647B1 |
| Cab | HOWO Series 7 Medium-Long Cab, Single Berth |
| Drive Form | 6×4 (Tandem Rear Axle Drive) |
| Engine | Weichai WD615.47, 400HP / 294kW |
| Emission Standard | National II / Euro II (Mechanical Fuel Injection Pump, No Urea System) |
| Maximum Torque | 1460 N·m / 1200-1600rpm |
| Transmission | HW19710 (10-speed Manual) + HW70 PTO |
| Front Axle | HF9 (9-ton Class) |
| Rear Axle | AC16 (16-ton Class Tandem Axle, Optional Speed Ratio 4.8/5.73) |
| Frame | Double-layer Girder (8+8/300mm), High-strength Alloy Steel |
| Wheelbase | 4000+1350mm / 4300+1350mm / 4600+1350mm |
| Suspension | Front 10 & Rear 12 Leaf Spring, with Telescopic Shock Absorbers |
| Braking System | Air Cut-off Brake + Exhaust Brake, ABS |
| Fuel Tank | 400L Aluminum Alloy Fuel Tank |
| Tires | 12.00R20, 10 Pcs Including Spare Tire |
| Gross Weight | 25,000 kg |
| Curb Weight | ~13,800 kg |
| Maximum Speed | 90 km/h |
| Tank Volume | 10 m³ / 12 m³ (Optional) |
| Tank Material | High-strength Wear-resistant Alloy Steel (Q345/520JJ) |
| Cylinder Thickness | 6mm (Wear Layer + Structural Layer) |
| Head Thickness | 8mm |
| Blade Material | High-Chromium Alloy Wear-Resistant Cast Iron, Double Logarithmic Helix Design |
| Blade Thickness | 5mm |
| Reducer | Bonfiglioli / ZF / PMP (Imported from Italy / Germany) |
| Hydraulic Pump | Sauer / Rexroth / Eaton |
| Hydraulic Motor | Sauer / Rexroth / Eaton |
| Radiator | Forced Air-cooled Hydraulic Oil Radiator |
| Feeding Speed | ≥3 m³/min |
| Discharging Speed | ≥2 m³/min |
| Discharging Residue Rate | ≤0.5% |
| Water Supply System | Pneumatic Water Supply, 400L Water Tank |
| Hopper | Large Opening Wear-resistant Manganese Steel, 180° Rotatable |
| Discharge Chute | Extended Chute, 180° Rotatable, with Extension Trough |
| Operating Platform | Double-sided Ladder + Top Guardrail Platform |
| Roof Configuration | Dark Sun Visor |
| Rearview Mirror | Electric Adjustment + Electric Heating |
| Headlight | Standard Headlight, No Protective Net |
Front view

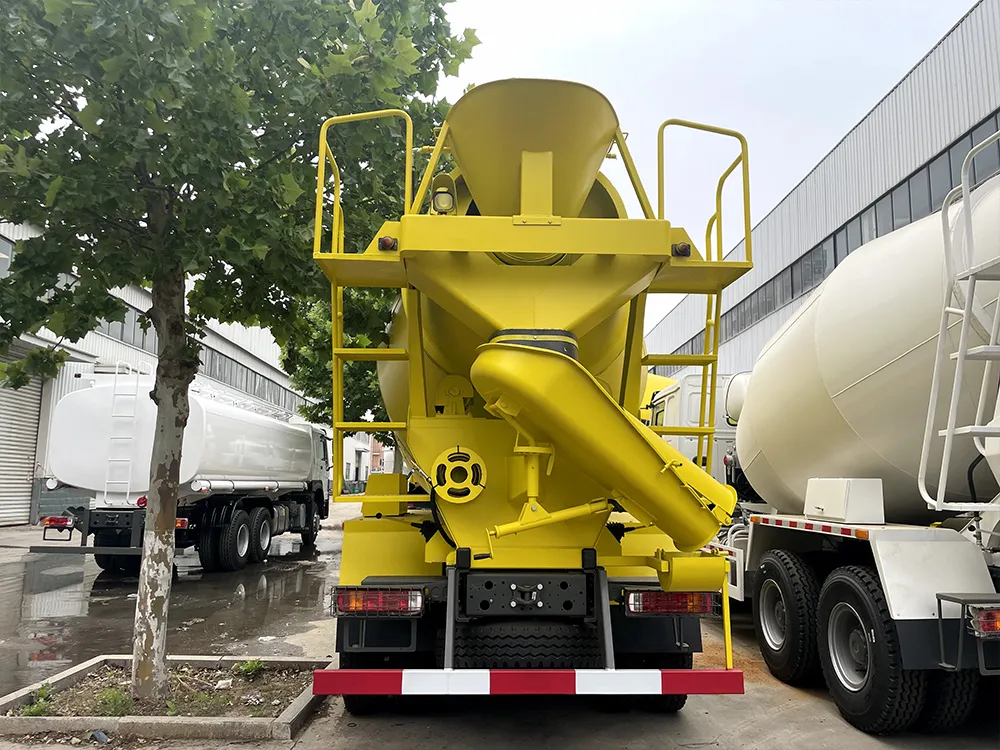

Rear view
Detailed image 1
Detailed image 2
Detailed image 3
Detailed image 4
If you are interested in this Weichai 400HP HOWO 6×4 Mixer Truck, please feel free to contact us and we will reply as soon as possible.
