Factory Price 3 Axles Skeleton Container Trailer
This 3 axles skeleton container trailer is designed for efficient transport of standard 20-foot and 40-foot containers. With its robust steel structure, flexible customization options, and highly competitive factory-direct pricing, it is the ideal equipment for port transport and long-haul logistics.
Factory Price 3 Axles Skeleton Container Trailer Description:
The 3 Axles Skeleton Container Trailer is a fundamental and highly efficient piece of equipment in global logistics and port operations. It’s a heavy-duty transport machine dedicated to moving shipping containers over long distances on highways. Suitable for all types of general and specialized cargo that are packed within ISO standard containers.
Mainly used for port container haulage, intermodal transportation, and logistics yard operations. Its robust skeletal frame provides high strength-to-weight ratio, ensuring durability while maximizing payload capacity. The three-axle configuration offers stability and complies with road weight regulations in many regions. Key components such as the main beam steel grade, suspension type (mechanical or air), brake system, tire specifications, and the brand of landing gear can be customized to ensure the trailer meets the specific strength requirements and operational needs of your business.
| Overall Dimensions | 12400 mm (L) × 2480 mm (W) × 1580 mm (H) |
|---|---|
| Wheelbase | 7000–8000 mm |
| Main Beam Material | Q345 / T700 |
| Main Beam Height | 500 mm |
| Axles | 3 or 4 Axles × 13T – FUWA / BPW / Other Brands |
| Tires | 12R22.5 – Linglong / Double Coin / Other Brands |
| Rims | 12 or 16 pcs, 9.0 × 22.5 Steel or Aluminum |
| Outrigger | 28T Double-Speed – JOST / Other Brand |
| Suspension System | Mechanical / Air Suspension (Optional) |
| Suspension Size | 90 mm × 16 mm × 10 Layers |
| Main Pin | Assembled 90# – JOST / Other Brand |

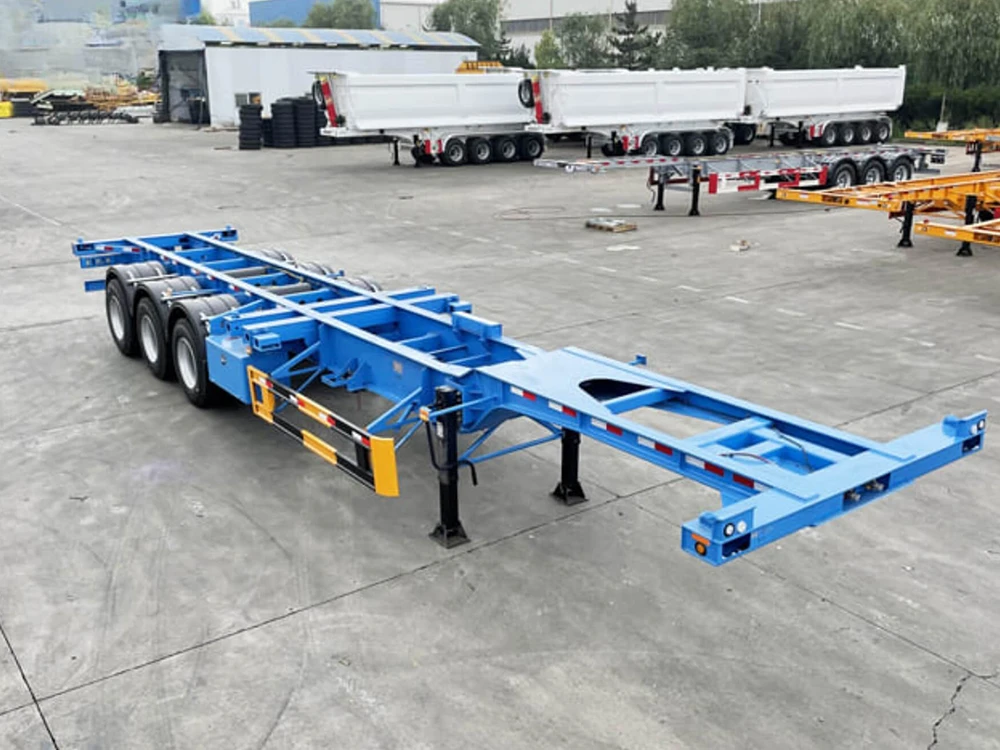

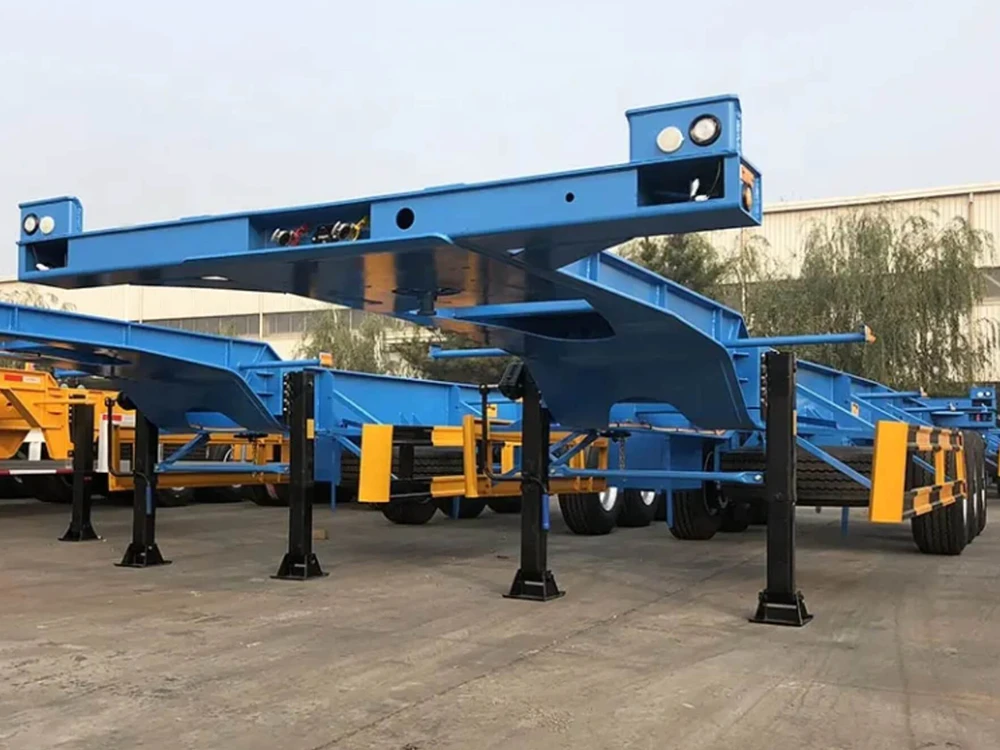

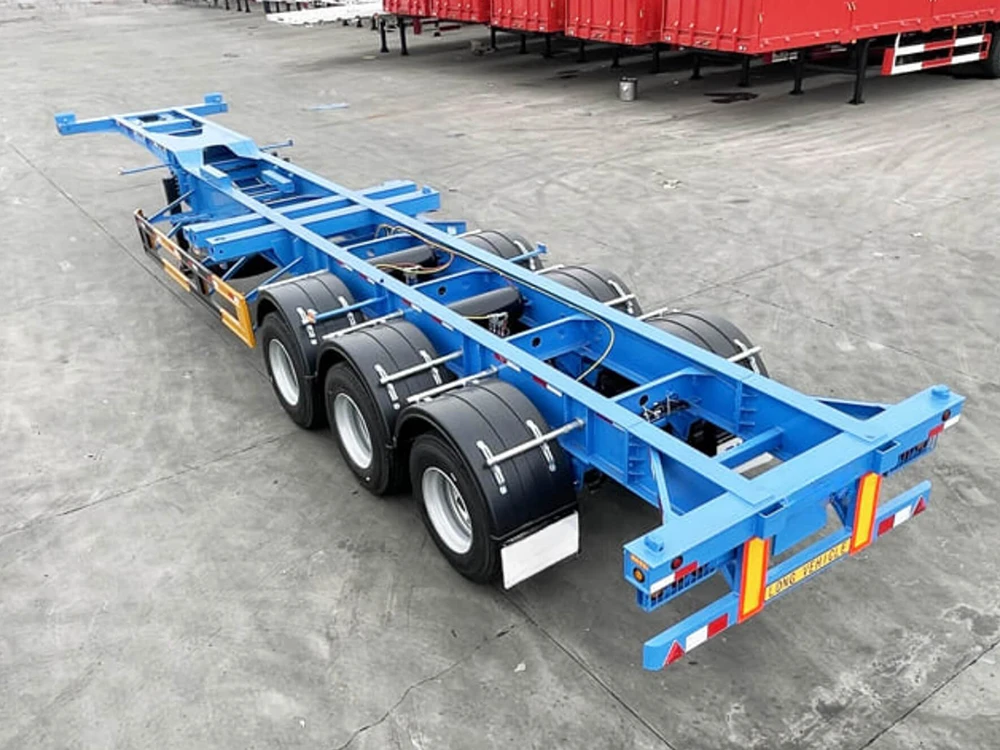

3 Axles Skeleton Container Trailer
3 Axles Skeleton Container Trailer
We are showing a regular 3 Axles Skeleton Container Trailer. This heavy-duty trailer is designed for safe and efficient transportation of 20ft and 40ft standard containers. The structural strength, axle configuration, landing gear, and color are all customizable based on your requests.
All of our trailers are manufactured to high-quality standards, and any parts can be customized by customer’s requests. With different configurations, we provide different quotations. At Zonhan, there will always be equipment that meets your goal price and technical requirements.
