Sinotruk 6×4 HOWO White Used Dump Truck with Warning Light for Sale
In practical application, the use scenario of this HOWO White Used Dump Truck is highly focused on heavy-duty engineering transportation.
This HOWO White Used Dump Truck can not only undertake the transshipment tasks of earth and stone, sand and stone in road construction and real estate infrastructure sites, but also complete the short-distance transportation of ore and slag in open-pit mines and quarries. It is also an overseas construction project in national infrastructure projects along the “Belt and Road”. The common model of the Cheng fleet has become a popular choice in the overseas heavy engineering dump truck market with its reliable performance.
Sinotruk 6×4 HOWO White Used Dump Truck with Warning Light for Sale Description:
This HOWO White Used Dump Truck is a 6×4 heavy-duty dump truck of the China Heavy Automobile Howo 7 series. As the core model for the overseas engineering transportation market, it is designed with heavy load adaptability and durability as the core highlights. It is the main transportation model for infrastructure and mining scenes in Southeast Asia, Africa and other regions.
| Product Name | HOWO DUMP TRUCK 6×4 SPECIFICATIONS |
|---|---|
| Model | ZZ3257N3847A |
| Engine | WD615.47, 371HP,Euro 2 emission standard |
| Transmission | Transmission, model HW19710, 10 forward and 2 reverseRatio: 4.42 4.8 5.73 |
| Front Axle | HF9 |
| Rear Axle | HC16 |
| Driver'sCab | HW76 |
| Performance | Maximum driving speed(km/h):75(reference data) Maximum gradeability (%):36 Minimum ground clearance(mm):314 Minimum turning radius (m):15 Fuel consumption(L/100km):40(reference data) |
| Cargo body | Size:5600*2300*1500, bottom 8mm, side 6mm, middle lift |
| Color | Optional |

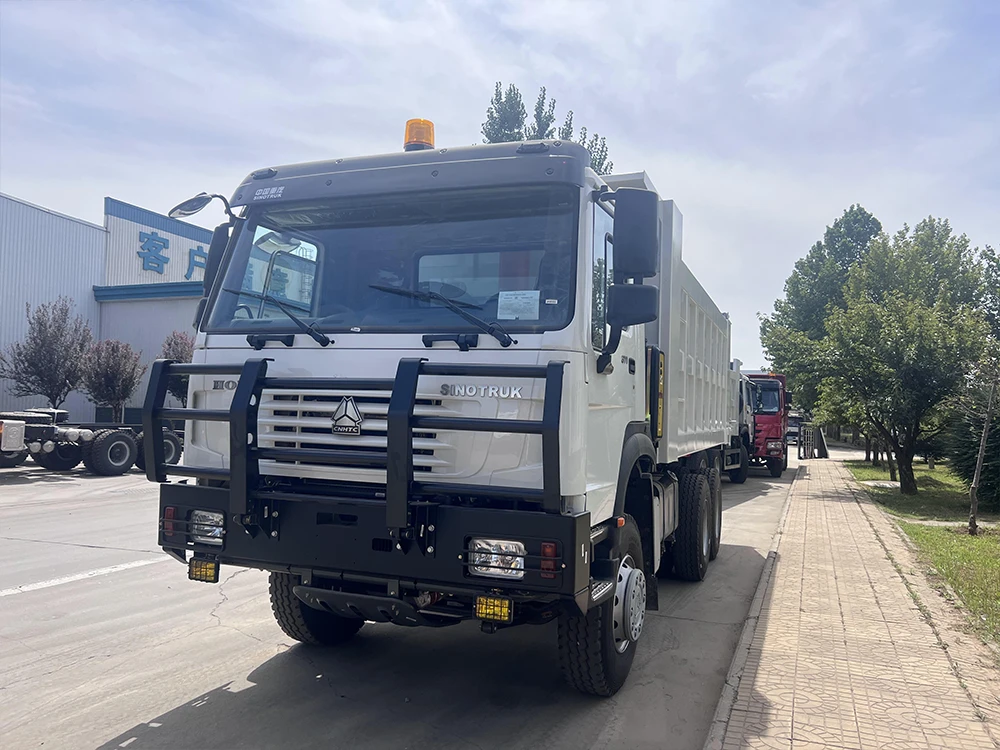

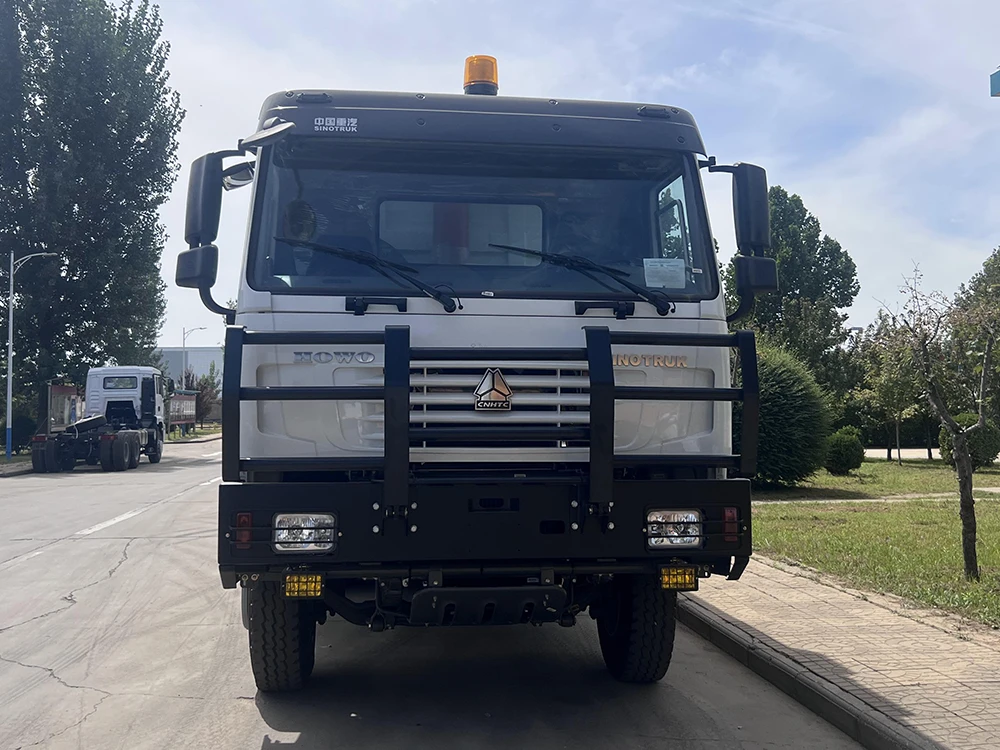

Front View

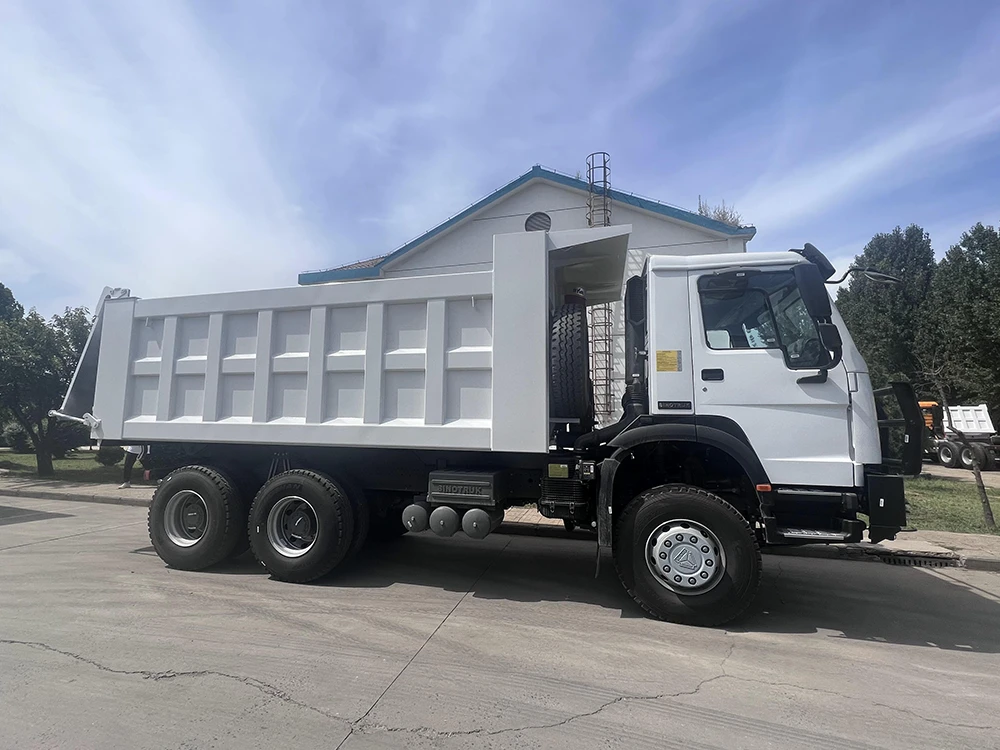

Side View
The core advantages of this HOWO White Used Dump Truck are concentrated in the hardcore configuration of power and chassis. It is equipped with a SINOTRUK WD615.47 in-line six-cylinder diesel engine, which can output 371 horsepower and 1460N·m peak torque. It is matched with the HW19710 ten-speed gearbox. The characteristics of low speed and high torque allow the vehicle to climb hills under heavy loads, There is still strong power under muddy road conditions; the chassis adopts a 6×4 drive form, with a reinforced double-layer frame and a Steyer technology wheel-side deceleration bridge, with a 25-ton bearing capacity and a rear axle speed ratio of 5.73, which can easily cope with the bad road conditions of mines and construction sites.
In terms of upper installation, it is equipped with a 5.6-5.8-meter wear-resistant steel plate cargo box with a volume of 18-20 cubic meters. The front-top hydraulic lifting mechanism can achieve a lifting angle of ≥45°, and the unloading efficiency is high.
At the same time, the calibration of the European 2 emission standard is also accurately adapted to the regulatory requirements of overseas non-strict emission areas, and the cab can also Install anti-roll frames, off-road bumpers and other protective components to meet the special needs of overseas projects.
