Howo TX Dump Truck 430hp 6×4 in Big Discount
We are showing a regular Howo TX Dump Truck 430hp . With 6×4 drive type, suitable for mine and construction site. The loading range, number of axles, color of car body are all customizable based on your requests.
Howo TX Dump Truck 430hp 6×4 in Big Discount Description:
Howo TX Dump Truck 430hp is mainly used to transport construction materials and earthwork transfer in engineering work. With 430 horse power and 6*4 drive type it can provide strong power, suitable for complex road condition and frequent load and unload work needs. The loading ability is outstanding and suitable for mining and construction site.
The main function of Howo TX Dump Truck 430hp is heavy loading transportation like construction materials and fast load and unload work. The 430hp provides strong tractive effort, increase the ability of clamb the ramp and makes it more efficiently. And 6*4 drive type with 3 axles, double rear axles set up with drive wheels gives it strong gradeability and high strength loading ability and a better stability.
| Product Name | Howo TX 430hp 6*4 Dump Truck |
|---|---|
| Model | ZZ3257V384GB1 |
| Engine | Engine model : WP1.430E201 , 430 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 430 PS (316 kW) at 2000 rpmMaximum torque : 2100Nm at 1000 - 1400 rpmBore : 126 mm Stroke : 130 mm Displacement : 10.52 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8545 x 2496 x 3450 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , front lift ( middle lift is for optional ) |
| Overall Size | 10500 x 2550 x 3450 mm |
| Color | Customer's requests |

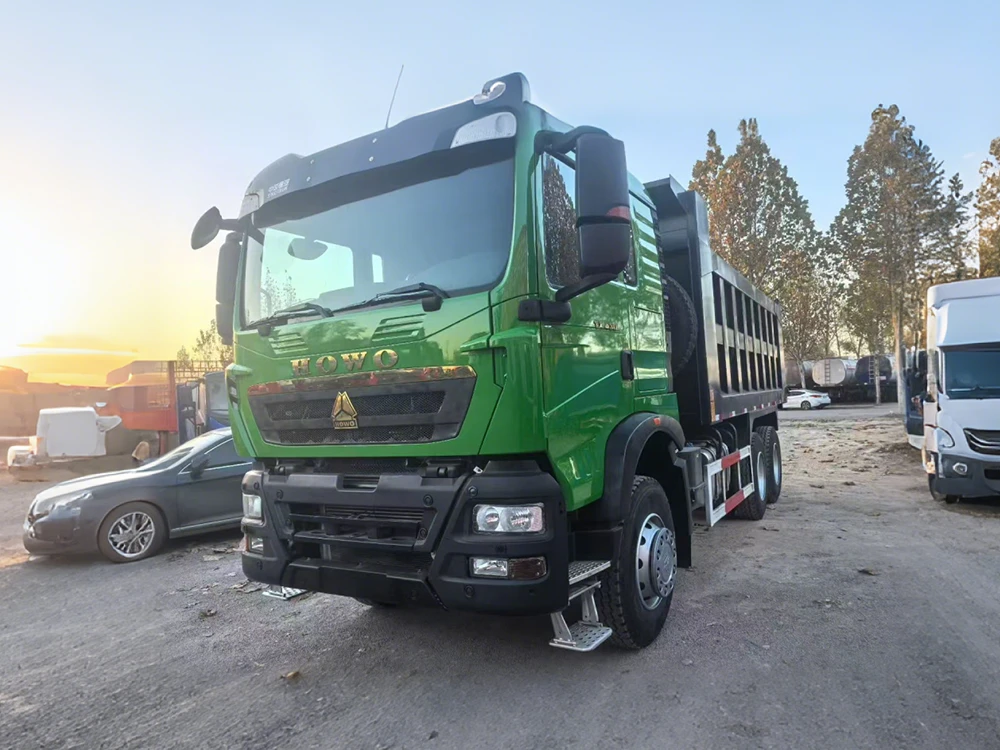

TX 430hp Dump Truck front view
TX 430hp Dump Truck tyres and chassis
TX 430hp Dump Truck back view
TX 430hp Dump Truck driving room
Big space in the driving room
The most important thing we are gonna promise is that all of our products are full refurbished, and any parts can be customized by customer’s requests. With a different configurations, we got different quotations. In Zonhan, there will always be a truck with your goal price.
