Howo TX 6×4 430hp Dump Truck Fully Refurbished
Howo TX 6×4 430hp Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The configurations like horse power, loading capacity, color of truck body, etc. Are all costumizable.
Howo TX 6×4 430hp Dump Truck Fully Refurbished Description:
Howo TX 6×4 430hp Dump Truck is mainly used to work in construction site and urban construction, transport dinas, minerals, earth, etc. With its big loading capacity makes the transportation more efficient with steady performance. It fits high strength working needs through strong horse power, high loading capacity and intelligent equipment.
The biggest advantage of it is high efficiency construction transportation. Equipped with 430 horse power engine it got easier to speed up in heavy loading condition and stronger power to climb the ramp. And enhanced version with the axles and suspension makes it suitable for complex road conditon and reduce the needs for maintain.
| Product Name | Howo TX 6x4 430hp dump truck |
|---|---|
| Model | ZZ3257N364GB1R |
| Engine | Engine model : WP12.430E201, 430HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 486 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710+ HW50 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | MCX16ZG pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | BOSCH , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8265x2496x3490 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5400 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8265x2496x3490 mm |
| Color | Customer's requests |
Suitable for heavy duty transportation
High efficient hydraulic system

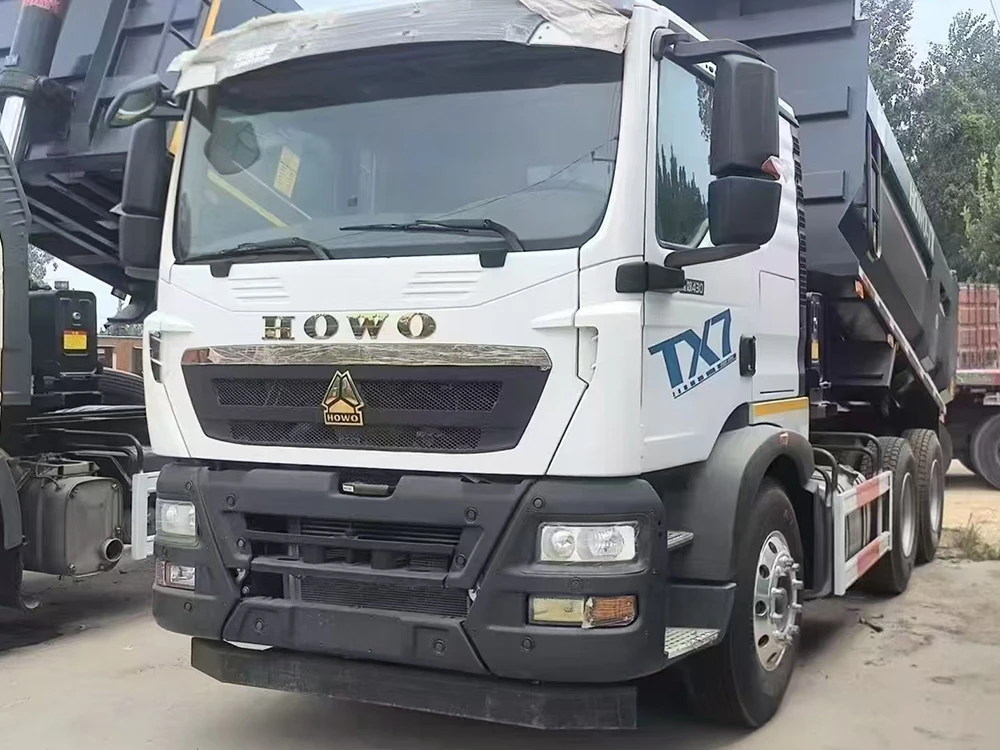

Howo TX 6×4 430hp Dump Truck front view
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
