Howo 6×4 N7 400hp Dump Truck with One Warning Light for Sale
Howo 6×4 N7 400hp Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The warning light increase the safty, and all these configurations are costumizable.
Howo 6×4 N7 400hp Dump Truck with One Warning Light for Sale Description:
Howo 6×4 N7 400hp Dump Truck is dedicated to finish heavy duty transportation work with high efficiency and reliability, especially in complex working condition. It’s mainly used to transport dinas, earth, construction materials in construction site, mining and urban construction. And it’s also suitable for transport minerals and coals in long term transportation.
It’s equipped with 400 horse power weichai engine, with a big torque it can speed up fast and also helps it increase the ability of clambing the ramp. The frame and parts are built by high strength steel and aluminium alloy makes it a strong loading ability and low self weight. The warning light can helps to make the driving work safer.
| Product Name | Howo 6×4 N7 400hp Dump Truck with one warning light |
|---|---|
| Model | ZZ4255N3246E1 |
| Engine | Engine model : WP12.400E201, 400HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 486 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 12 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710+HW50 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | H77L-R cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8265x2496x3490 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8265x2496x3490 mm |
| Color | Customer's requests |

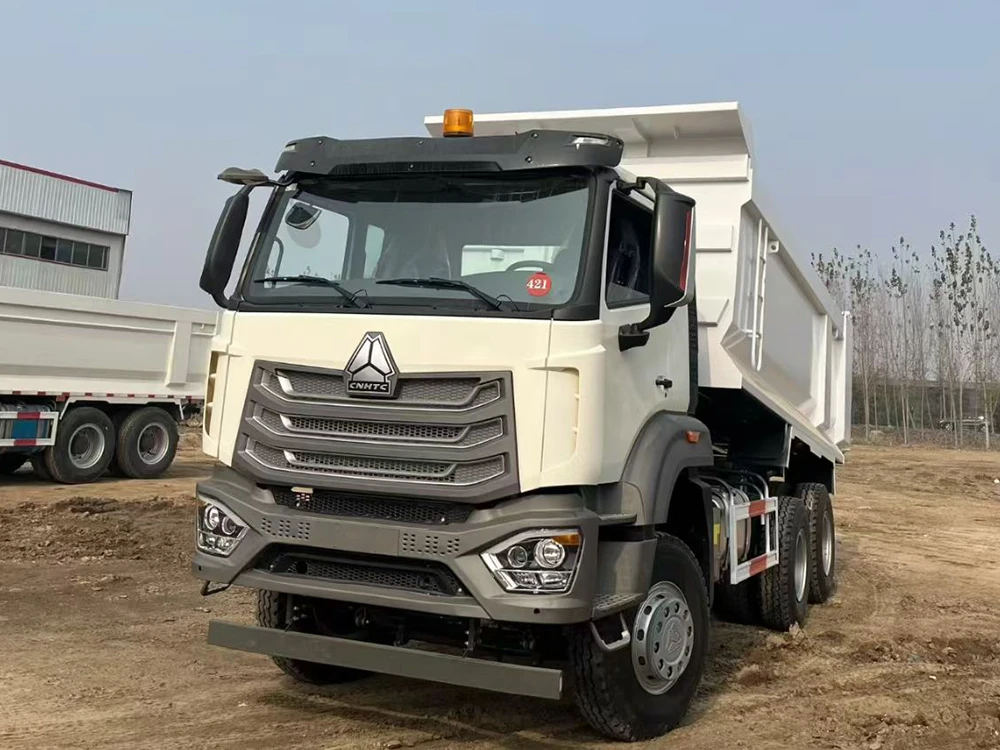

Howo 6×4 N7 400hp Dump Truck with one warning light

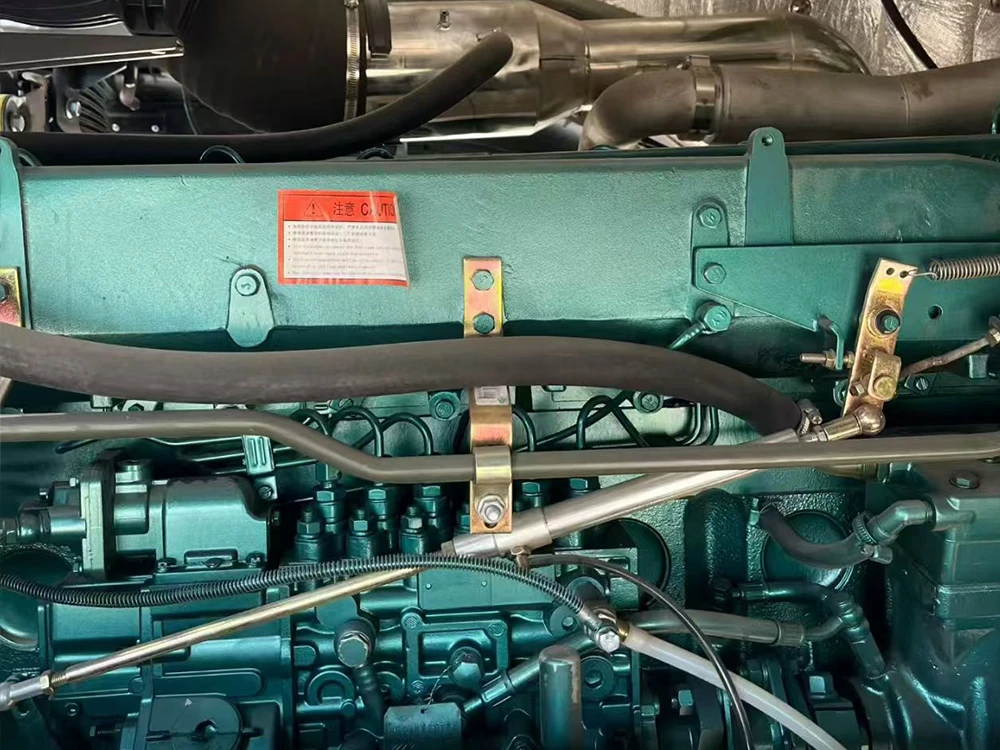

400 big horse power engine

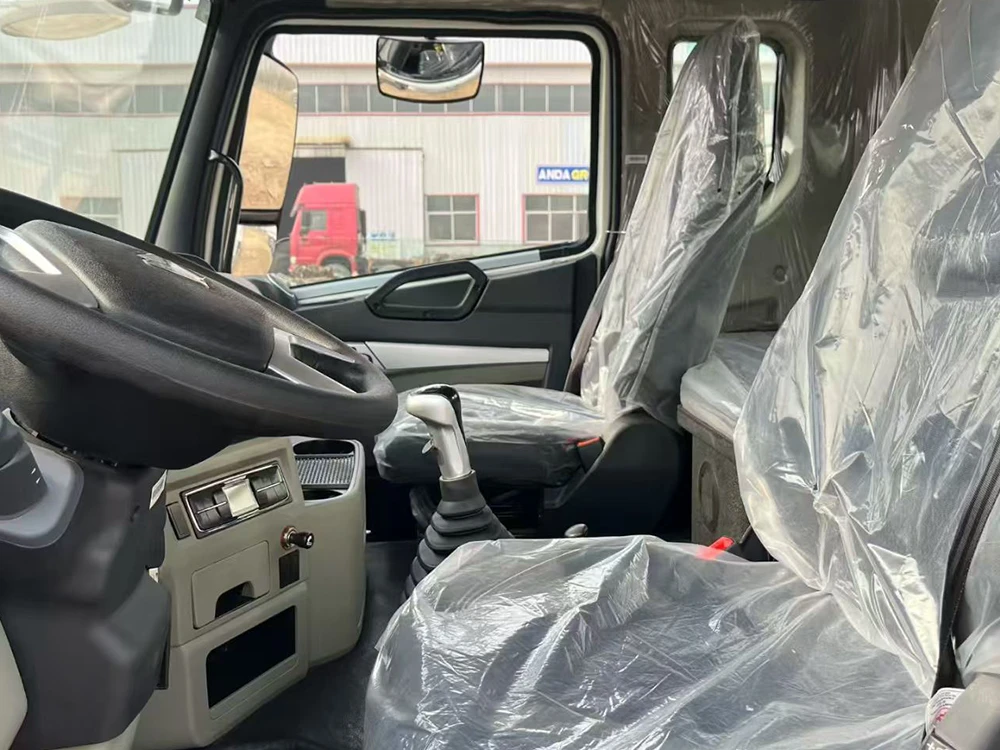

Big room in the driving cab
Hydraulic system helps unload with high efficiency

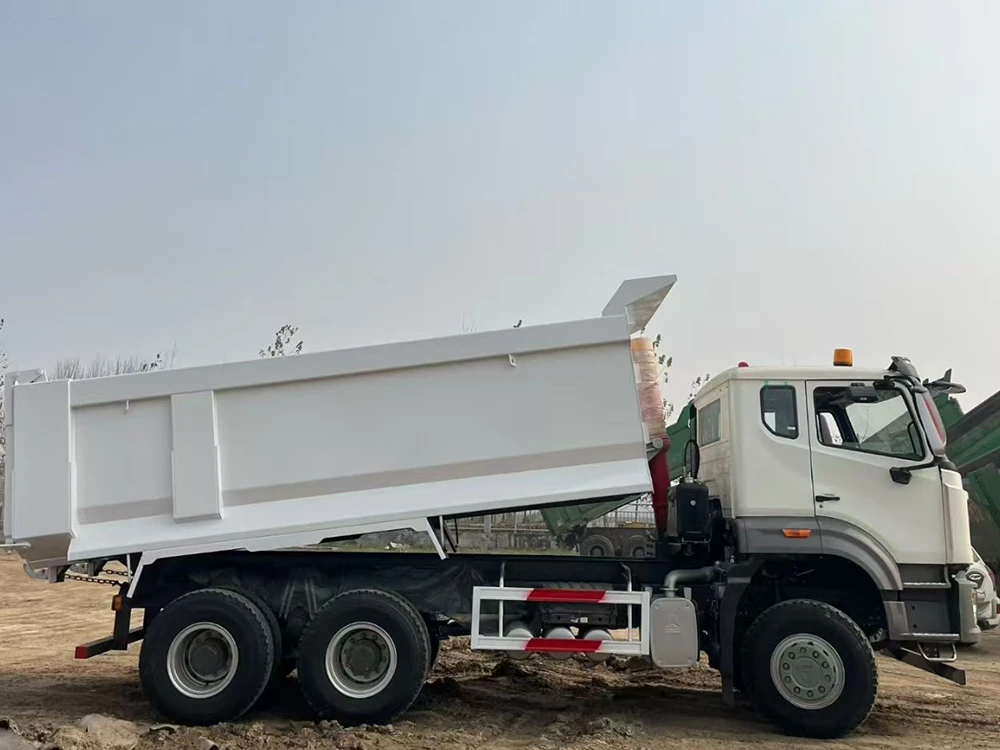

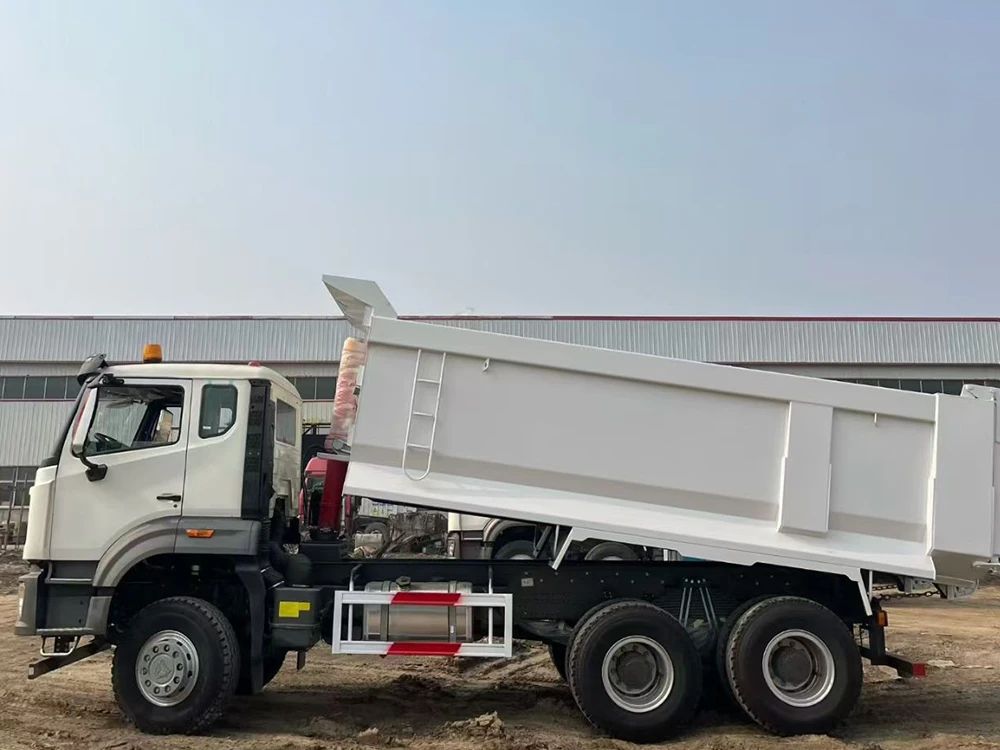

Howo 6×4 N7 400hp Dump Truck side view
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
