Factory Price Sinotruk Howo 6×4 380HP Dump Truck
The Sinotruk Howo 6×4 380HP Dump Truck is designed for demanding mining and construction sites, offering enhanced torque and climbing performance, along with a cost-effective factory-direct price and a full range of customization options.
Factory Price Sinotruk Howo 6×4 380HP Dump Truck Description:
Sinotruk Howo 6×4 380hp dump truck is a powerful and reliable dump truck designed to handle demanding earthmoving tasks, offering exceptional value. A popular choice in the global market, this heavy-duty construction machinery is dedicated to the efficient transport of various bulk materials such as soil, sand, rocks, minerals, coal, and construction waste.
This truck excels in challenging environments such as large construction sites and mines. Its powerful 380-horsepower engine delivers exceptional torque and outstanding climbing ability, ensuring stable performance even on complex terrain. We offer this model at a highly competitive factory-direct price. Furthermore, key components—including the drivetrain, cabin configuration, tire specifications, and cargo box design—can be customized to ensure the vehicle perfectly meets the strength and operational needs of your business.
| Model | ZZ3257V3847B1 |
|---|---|
| Driving Type | LHD (RHD is optional) |
| Cabin | HW76, with one sleeper and two seats, double arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, air conditioner, with transverse stabilizer, with four piont support floating suspension+shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model: WP10.380E22, Euro 2, 380 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Transmission | HW19710, 10F & 2R, with PTO Ratio:14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Front Axle | HF9, 1x9000 KGS |
| Rear Axle | HC16, 2x16000 KGS |
| Chassis | Frame: Uprofile parallel ladder frame with section of 300x80x8mm,reinforced subframe all cold riveted cross members Front suspension:10 semi elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Tyres | 12.00R20, radial tyres with one spare tyre |
| Fuel Tank | 300L |
| Cargo Body | 5600*2300*1500 mm, Floor 8mm Side 6mm |

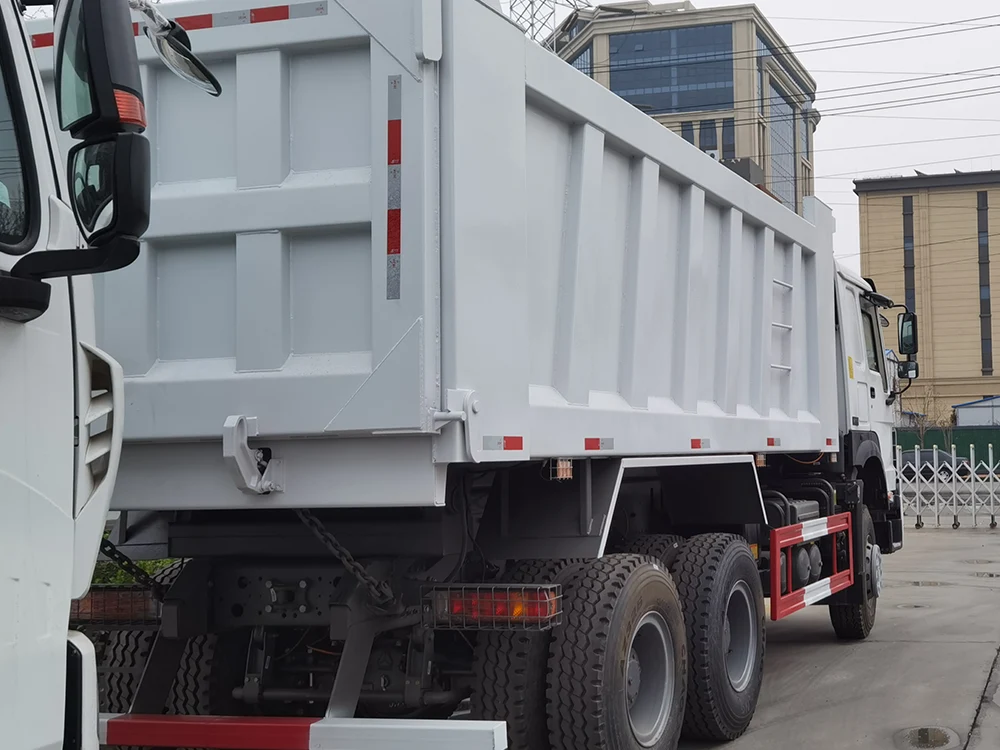

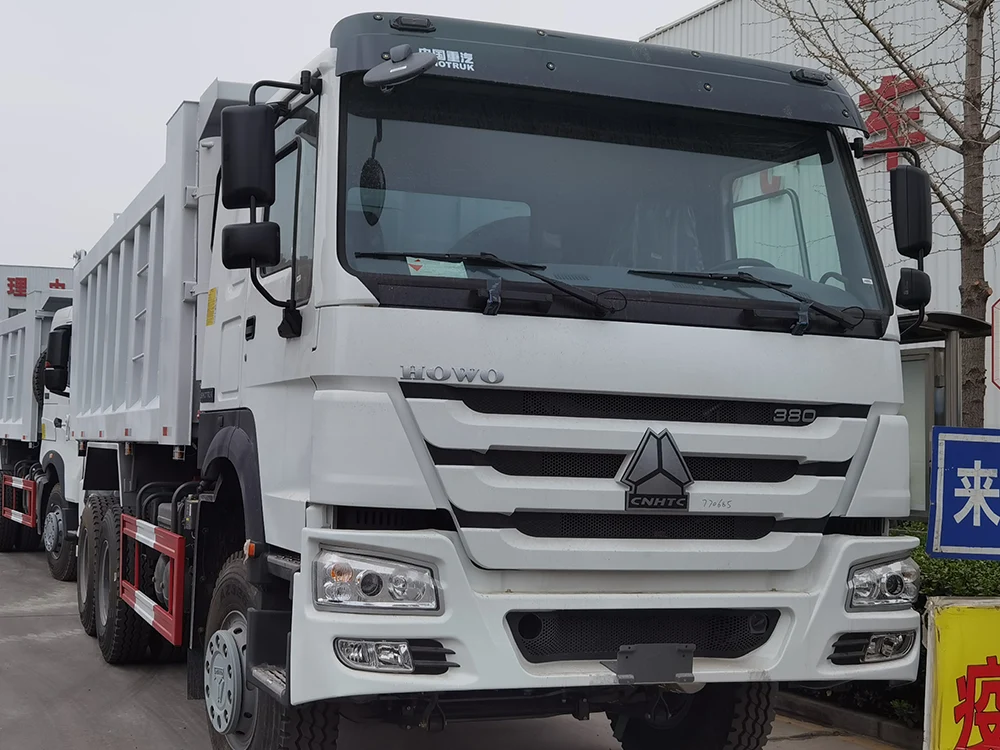

Howo 6×4 380HP Dump Truck
Howo 6×4 380HP Dump Truck
Howo 6×4 380HP Dump Truck
With its 6×4 drive configuration, this dump truck is designed for heavy material transport in mines and construction sites. Engine specifications, cargo box dimensions, lifting mechanism, and vehicle color can all be customized to your specific project requirements.
All our products are offered at highly competitive factory-direct prices. We provide quotes based on different configurations. We are committed to delivering a reliable and efficient truck that meets both your technical specifications and your budget.
