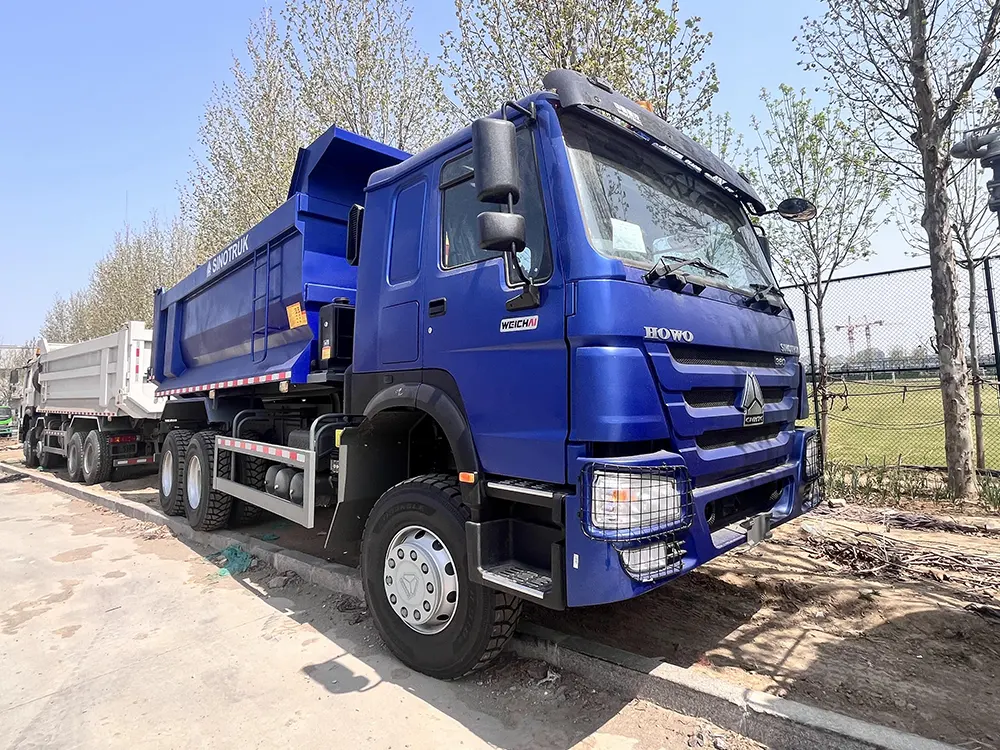

Howo 380hp 6×4 Dump Truck with Headlight Protective Cover and Warning Light
Howo 380hp 6×4 Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The headlight protective cover and warning light increase the safty, and all these configurations are costumizable.
Howo 380hp 6×4 Dump Truck with Headlight Protective Cover and Warning Light Description:
Howo 380hp 6×4 Dump Truck is mainly used to transport earth, minerals, coals, construction materials, etc. In working conditon like construction site, mining, urban construction, and logistic park. Specially suitable for heavy duty transpotation work.
The WP10.380E22 engine with 380 big power 1760N.m torque at 1100-1400 rpm provides it a strong explosive power, which helps it increase the ability of climbing the ramp. And HW19710+QH50 transmission provides 12 gears to make it suitable for complex working conditon. The U shape hydraulic cargo box increase the efficiency of unloading the goods. Equipped with headlight protective cover and warning light make sure driver’s safty, and reduce the cost of maintenance at the same time.
| Product Name | Howo 6x4 380hp Dump Truck with Headlight Protective Cover and Warning Light |
|---|---|
| Engine | Engine model : WP10.380E22, 380HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 486 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710+QH50 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | MCX16ZG pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | HW76 Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8265x2496x3490 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8265x2496x3490 mm |
| Color | Customer's requests |
suitable for heavy duty transpotation work
Howo 380hp 6×4 Dump Truck side view
U shape hydraulic cargo box
suitable for complex working conditon
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
