Green Howo 371hp 6×4 Dump Truck with Headlight Protective Cover
Green Howo 371hp 6×4 Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The headlight protective cover increase the safty, and all these configurations are costumizable.
Green Howo 371hp 6×4 Dump Truck with Headlight Protective Cover Description:
Green Howo 371hp 6×4 Dump Truck is mainly used in working condition like construction site, mining, urban basic construction and transportation for transport heavy duty bulk materials like minerals, earth, coals, etc. It can fit complex road conditon and suitable for heavy duty transportation and frequrnt start and stop.
Equipped with WD615.47 engine which got 371 big horse power it can provide a strong motivation. And HW 19710 transmission gives it 12 gears which can help it fits different transport request and road condition. The headlight protective cover can protect the headlight and reduce the cost of maintenance.
| Product Name | Green Howo 371hp 6x4 Dump Truck with Headlight Protective Cover |
|---|---|
| Model | ZZ3257N3847A |
| Engine | Engine model : WD615.47, 371HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 486 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8265x2496x3490 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8265x2496x3490 mm |
| Color | Customer's requests |
Fits complex road conditon
Suitable for heavy duty transportation

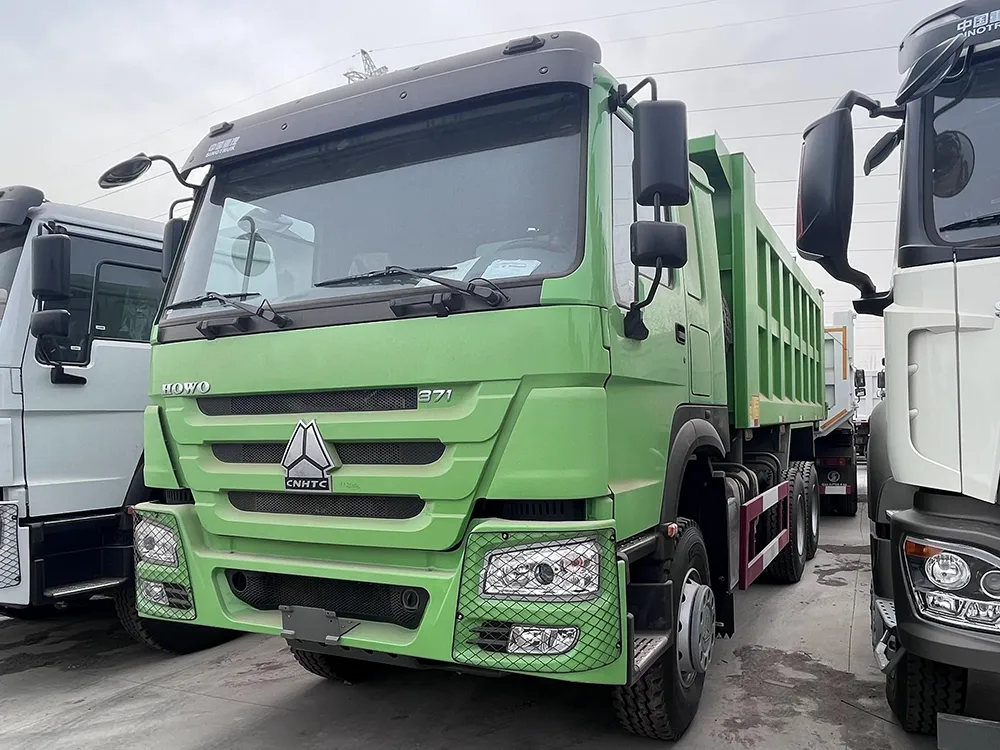

Green Howo 371hp 6×4 Dump Truck front view
Headlight protective cover increase the safty
12.00 R20 tyres
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
