HOWO N7W 8×4 430HP Red U shaped dump truck for sale
This is a photo of a premium 8×4 430HP Red U shaped dump truck featuring a vibrant red exterior with distinctive U-shaped cargo body and red-white reflective safety strips. The 8×4 configuration and spacious U-shaped container make it ideal for heavy construction and mining operations in demanding environments.
HOWO N7W 8×4 430HP Red U shaped dump truck for sale Description:
8×4 430HP Red U shaped dump truck represents a high-performance engineering solution designed for the most challenging construction and mining applications. Its robust 8×4 drive configuration provides exceptional traction and stability on rough terrain while maintaining excellent maneuverability in confined worksites. The distinctive red exterior with black accents enhances visibility in low-light conditions and busy construction zones. With a maximum payload capacity of 30,600 kg and a powerful 430 HP engine, this dump truck delivers reliable performance for transporting soils, stones, minerals, coal, and construction debris. The modern front design features protective headlight covers that enhance visibility while protecting against debris damage during construction operations.
| Product Name | Howo N7W 8×4 Dump Truck |
|---|---|
| Engine | Engine model : WP12.430E201 , 430 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 + 1350 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :30600 Dead weight (kg): 15270 Gross vehicle weight (kg): 45000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 7500 * 2300 * 1500 , bottom 8mm , side 6mm , Front lift |
| Overall Size | 10500 x 2550 x 3450 mm |
| Color | Customer's requests |

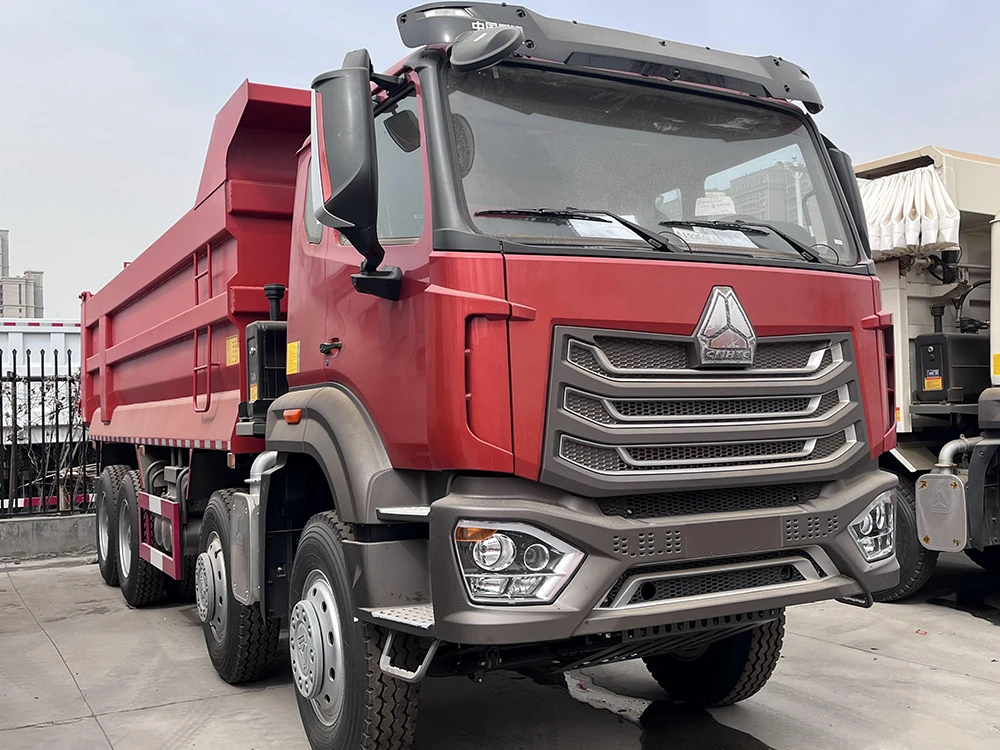

8×4 430HP Red U shaped dump truck

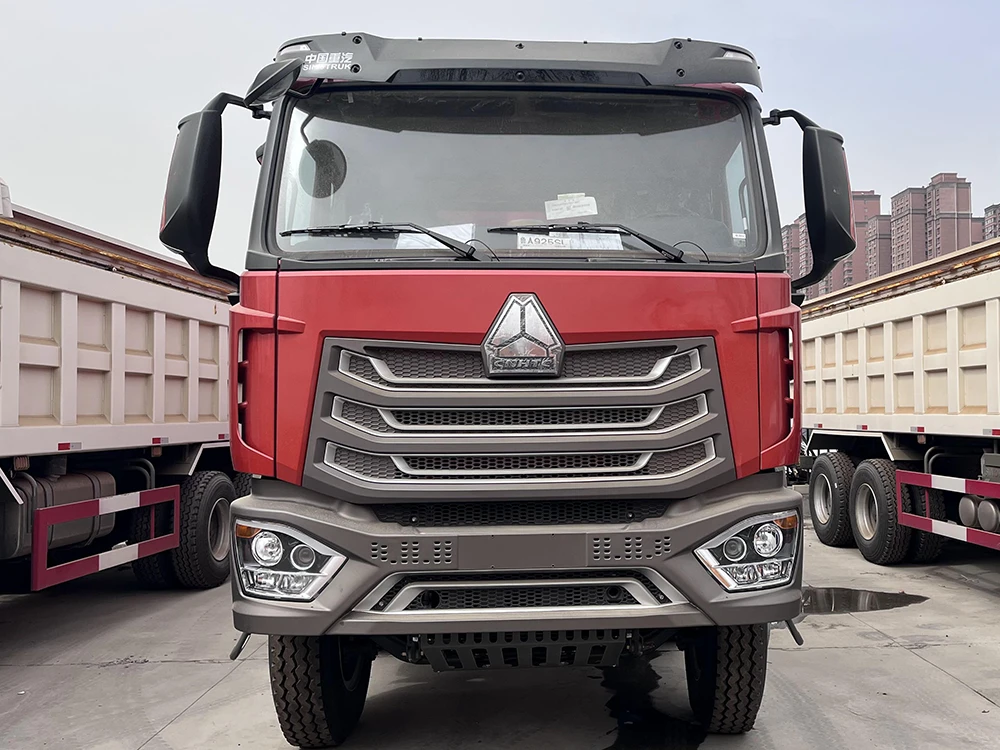

front view

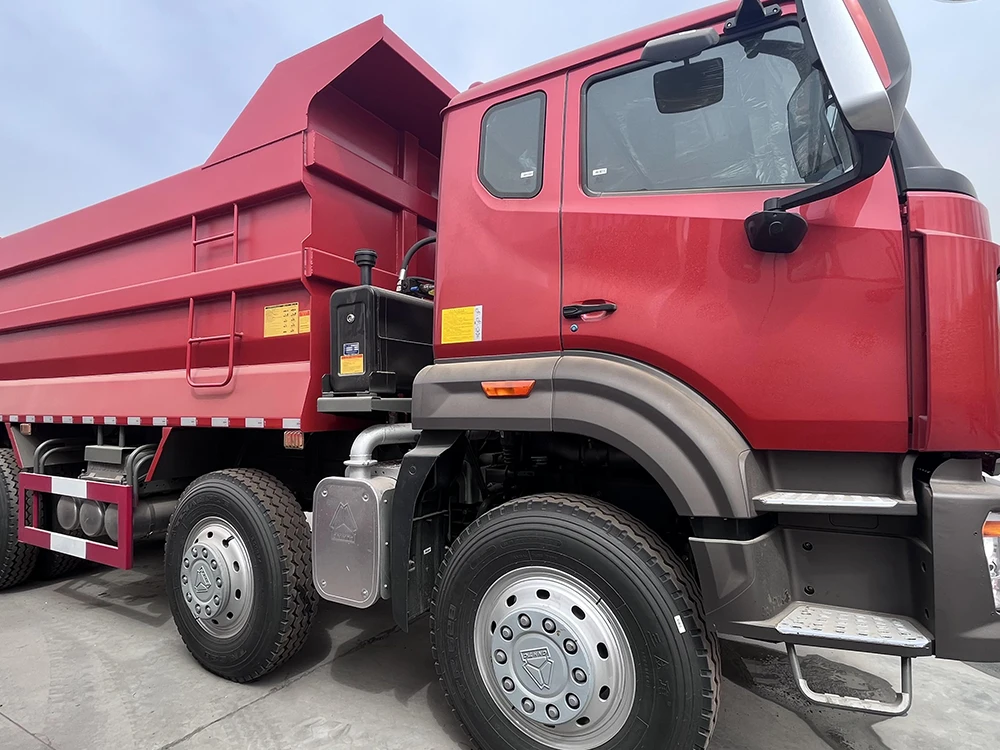

8×4 430HP Red U shaped dump truck

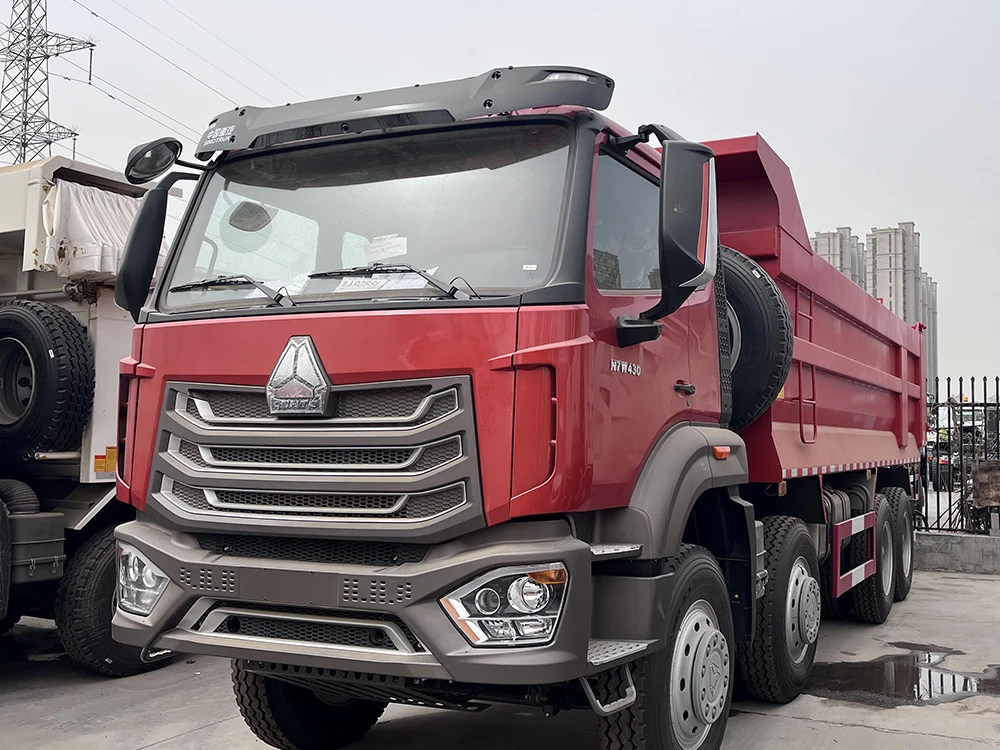

Red U shaped dump truck

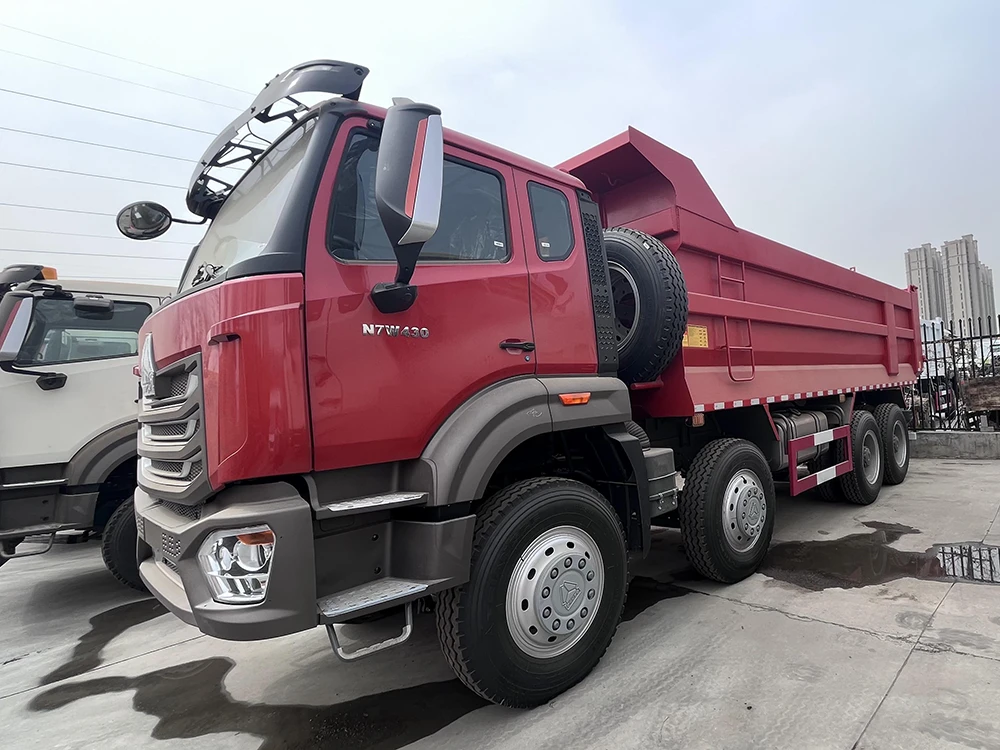

8×4 430HP Red U shaped dump truck side view

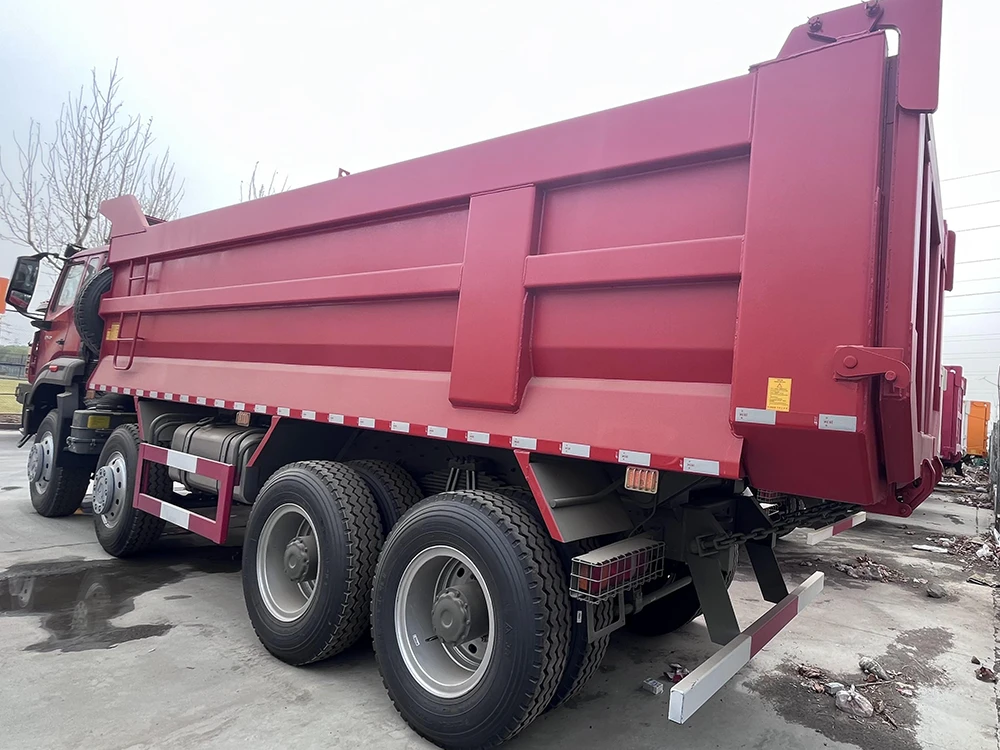

8×4 430HP Red U shaped dump truck rear view

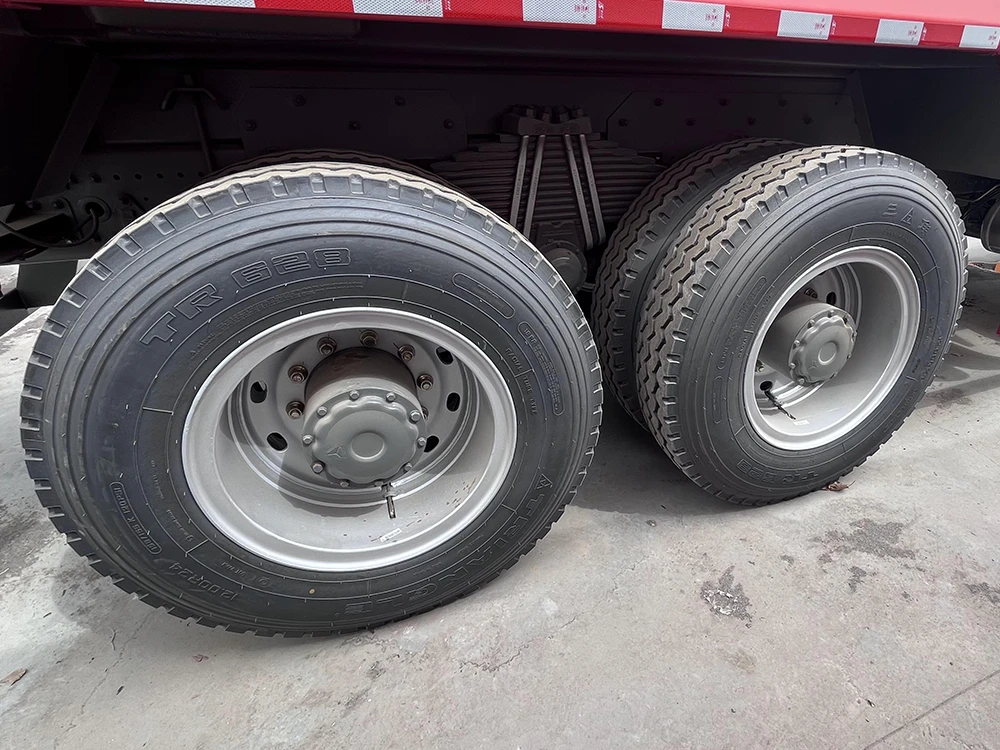

Tires

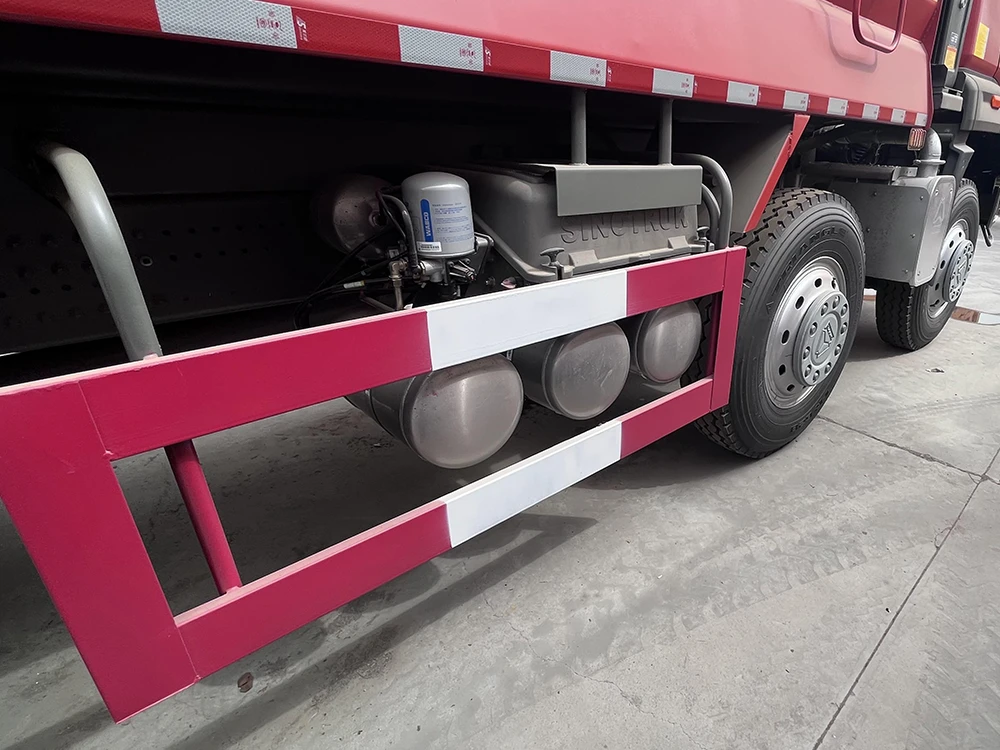

Detail view
All of our products are fully refurbished to meet international standards, and any parts can be customized by customer’s requests. With different configurations (engine upgrades, tire options, cargo body materials), we have varying quotations for the 8×4 430HP Red U shaped dump truck. In Zonhan, there will always be a solution that matches your operational requirements and budget constraints. Our technical team provides comprehensive support for customization and can assist with regulatory compliance documentation for your specific market. For fleet purchases, we offer special pricing and extended warranty packages with global service network coverage.
