Gray 8×4 Sinotruk Howo A7 420HP Tipper for Sale
This is a photo of a robust 420HP Tipper, engineered for demanding heavy-duty hauling with superior power and reliability.
Gray 8×4 Sinotruk Howo A7 420HP Tipper for Sale Description:
This gray 8×4 SINOTRUK HOWO A7 tipper is built for high-intensity transport operations. Its excellent all-wheel-drive configuration and heavy-duty chassis structure deliver outstanding passability and stability when tackling complex worksites and rugged road conditions. The powerful 420HP Tipper powertrain ensures ample energy for heavy-load starts and climbing, significantly improving operational efficiency. The robust front-roof cab design, engineered for special purposes, not only provides a wide field of vision but also prioritizes driver safety and comfort.
This HOWO A7 achieves an excellent balance between reliability, load capacity, and maintenance costs. Comprehensive safety features and user-friendly operational design further reduce driver fatigue. For users seeking high efficiency and long-term stable operation, this represents a highly valuable investment opportunity.
| MODEL: | ZZ3317N3567N1B |
|---|---|
| ENGINE: | Engine model: WD615.47, Euro II emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system Maximum output: 371PS (273kW) at 2000 rpm Maximum torque: 1560Nm at 1200-1500rpm Bore: 126mm Stroke: 130mm Displacement: 9.726L |
| CLUTCH: | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| TRANSMISSION: | Transmission, model HW19710, 10 forward and 2 reverse Ratio: 5.73 |
| FRONT AXLE: | New HF9 series, with drum brake system |
| REAR AXLE: | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| STEERING: | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
| WHEELS&TYRES: | Rims: 8.5-20,10 hole-steel Types: 12.00R20 |
| CARGO BODY: | 7300*2300*1500, bottom 8mm, side 6mm, Front lift system (Other sizes are optional) |
| DRIVER CAB: | A7-W cab, all steel forward control, 55°hydraulic tilting to the front, 2-arm windscreen wiper system with 3 speeds, adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner |
| DIMENSIONS(in mm): | Wheel base (mm): 1800+3500+1350 Front wheel track (mm): 2022/2041 Rear wheel track (mm):1830/1830 Overhang(front/rear) (mm):1500/2295 Approach angle(°):19 Departure angle(°):20 Overall Dimension (mm):11745x2496x3550 |
| WEIGHT(in kg): | Permissible loading capacity (kg):16000 Dead weight (kg):15000 Gross vehicle weight (kg):31000 Front axle loading capacity (kg):2*9000 Rear axle loading capacity (kg):2*16000 |
| PERFORMANCE: | Maximum driving speed(km/h):75(reference data) Maximum gradeability (%):36 Minimum ground clearance(mm):314 Minimum turning radius (m):15 Fuel consumption(L/100km):40(reference data) |

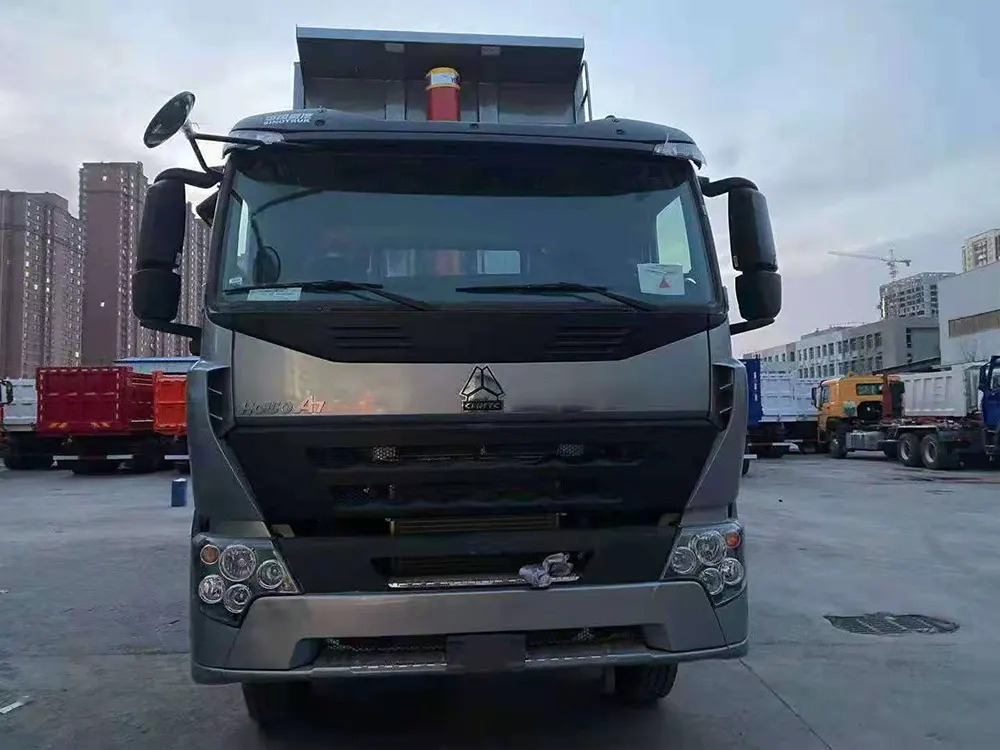

Gray 8×4 Sinotruk Howo A7 420HP Tipper front view
Gray 8×4 Sinotruk Howo A7 420HP Tipper side viewGray 8×4 Sinotruk Howo A7 420HP Tipper rear view
