Sinotruk Homan H3 4×2 Dump Truck in Hot Sale
Sinotruk Homan H3 4×2 Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The configurations like horse power, loading capacity, color of truck body, etc. Are all costumizable.
Sinotruk Homan H3 4×2 Dump Truck in Hot Sale Description:
Sinotruk Homan H3 4×2 Dump Truck is dedicated for construction transportation, it’s specially suitable for mid and short term transport bulk materials like sand, minerals, earth, etc. It provides a steady performance in complex road conditon.
The mainly advantage of it is high efficient transportation, with strong power and good loading capacity. The Wechai engine provides it a 820N·m max torque, which means it can spead up with a low spinning speed and it could performe well with climbing the ramp. And the hydraulic lifting system helps it unload the goods with high efficiency.
| Product Name | Sinotruk Homan H3 4x2 Dump Truck |
|---|---|
| Engine | Engine model : WD615.62 , 266 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Transmission | HW13710, 10 Forwards gear & 2 reverse gear |
| Front Axle | VGD95 front axle, with drum brake system |
| Rear Axle | MCX16ZG single rear axle; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 9.00R20 tubeless tyre 7 pcs or 12.00 R20based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 4700 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :15000 Dead weight (kg): 15270 Gross vehicle weight (kg): 20000 Front axle loading capacity (kg): 1*3600 Rear axle loading capacity (kg) : 2*8000 |
| Performance | Maximum driving speed (km/h) : 95 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 6250X2300X1300 , bottom 8mm , side 6mm , Middle lift |
| Overall Size | 8500 x 2500 x 3000 mm |
| Color | Customer's requests |

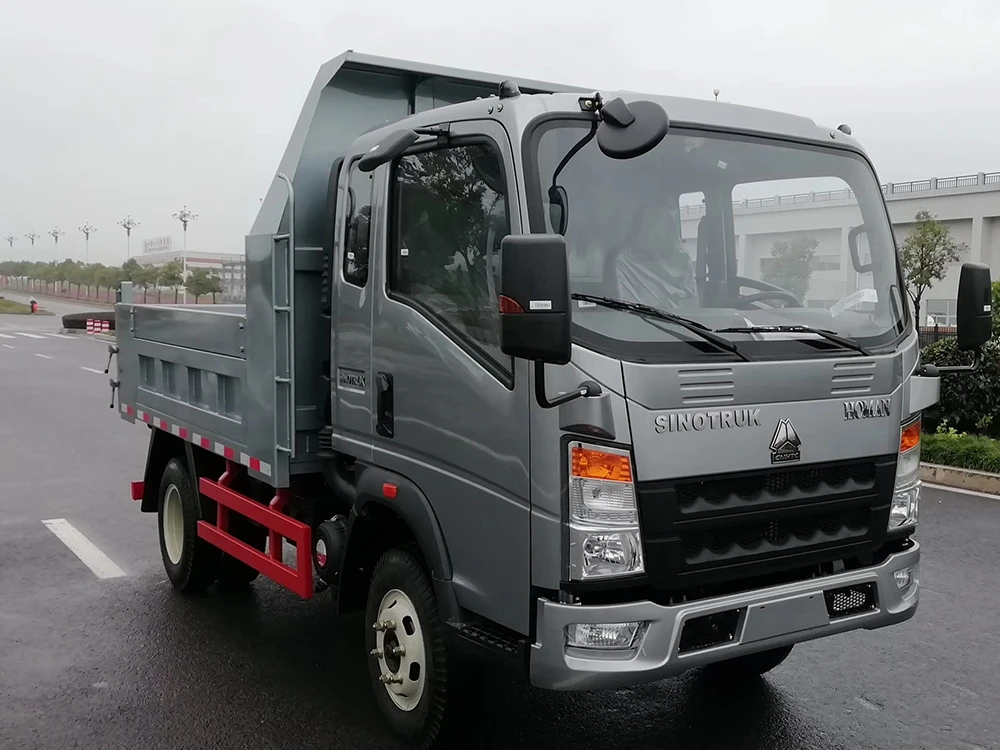

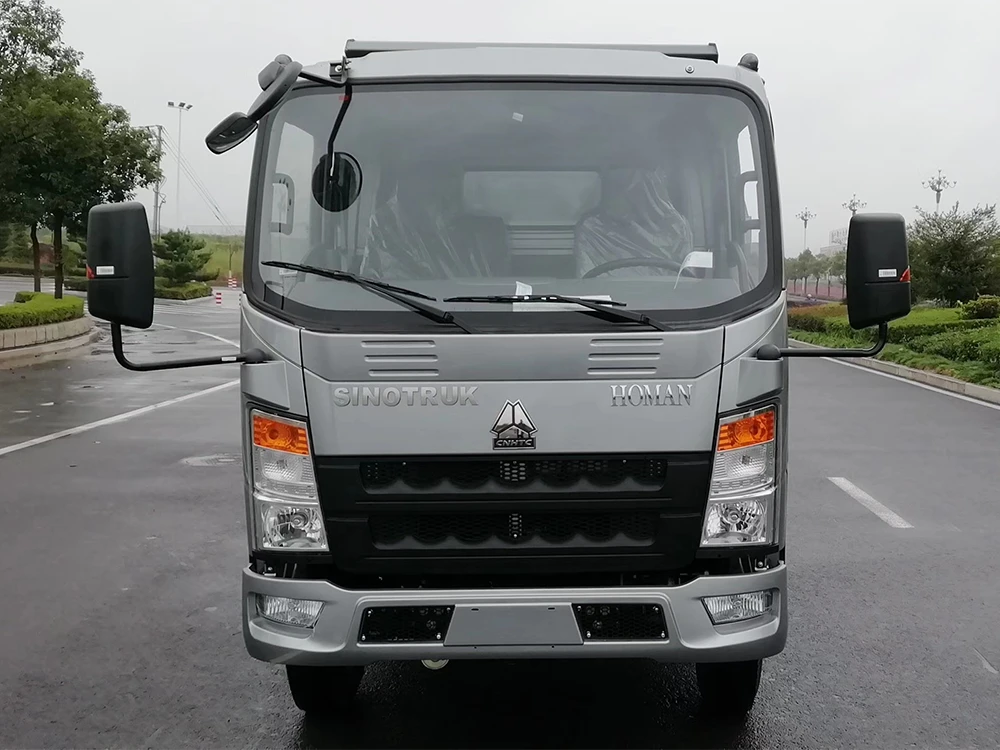

Sinotruk Homan H3 4×2 Dump Truck front view
dedicated for construction transportation

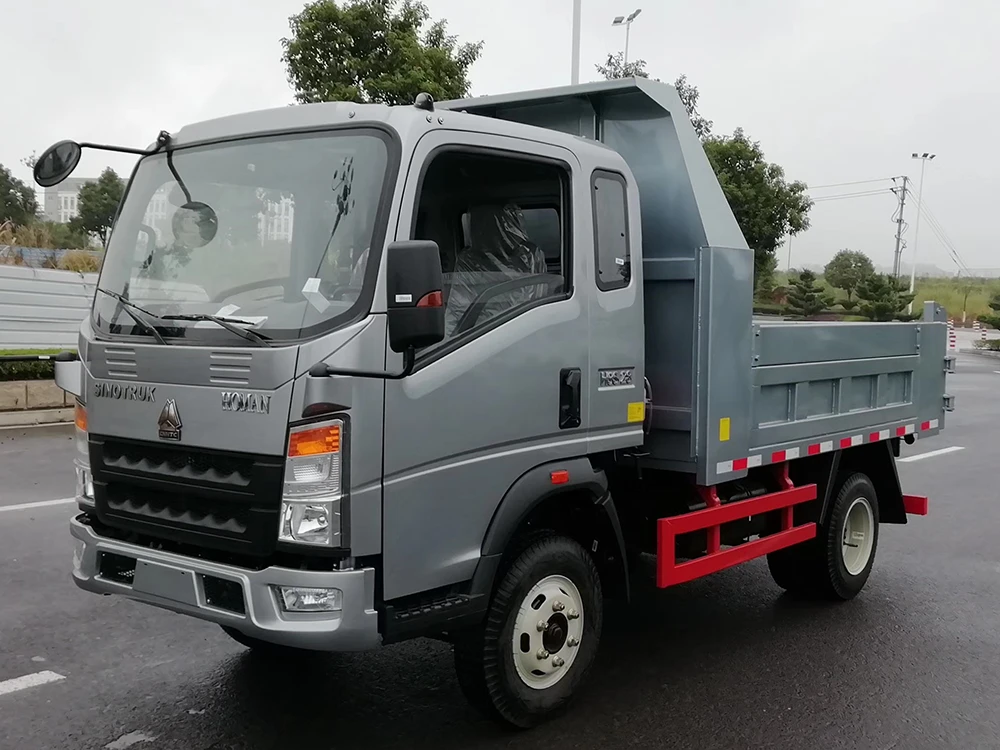

Sinotruk Homan H3 4×2 Dump Truck side view
steady performance in complex road conditon
hydraulic lifting system
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
