Shacman F3000 4×2 Tractor Truck with Cheap Price
Shacman F3000 4×2 Tractor Truck is mainly designed to heavy-duty trasnportation and it can provide high tractive effort and stability, suitable for complex road condition. The configurations like horse power, drive type, color of truck body, etc. Are all costumizable.
Shacman F3000 4×2 Tractor Truck with Cheap Price Description:
Shacman F3000 4×2 Tractor Truck is a heavy duty truck dedicated for long term transportation, construction transportaton, and logistics transportation. The main advantage of it is high efficiency transportation, economical efficiency and reliability.
With 371 big horse power, it provides enough motivation and suitable for driving on expressway. And Weichai series engine combine Hw transmission it can reduce the cost of fuel. The shacman product are famous with it’s steady performance and reliability. The 4×2 design make sure it got low self weight and high flexibility. With these advantage it can accomplish the long term transportation with good performance.
| Product Name | Shacman F3000 4x2 Tractor Truck |
|---|---|
| Engine | Engine model: WP10.371E22, 371HP, Euro 2 emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling,common rail Maximum output: 371PS (276kW) at 2000 rpmMaximum torque: 1560Nm at 1200-1500rpmBore: 126mmStroke: 130mmDisplacement: 9.726L |
| Clutch | φ430 diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model FAST, 10 forward and 2 reverseRatio: 4.42 4.8 5.73 |
| Front Axle | MAN 5.5 – 7.5 ton, with drum brake system |
| Rear Axle | MAN 11.5 – 13 ton single or double reduction; with drum brake system. |
| Steering | ZF8098, hydraulic steering with power assistanceRatio: 22.2-26.2:1 |
| Wheels&Tyres | Rims: 8.5-20,10 hole-steelTypes: 12.00R20 Option:12R22.4 ,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20 |
| Driver'sCab | Lengthened high roof cabin(Lengthened flat roof optional),1 sleepers, 4 point ful -floating air suspension , adjustable steering wheel with various heights and angles,Air suspension seat. |
| Dimensions in mm | Wheel base (mm): 3600 0Front wheel track (mm): 2022/2041 Rear wheel track (mm):1830/1830 Overhang(front/rear) (mm):1500/725 Approach angle(°):16 Departure angle(°):70 Overall Dimension (mm): 6150×2490×3725 |
| Weight in kg | Rated loading capacity at fifth wheel (kg):1566 0Dead weight (kg):9210 Gross vehicle weight (kg):7500 Gross combination weight（kg）：50000 Front axle loading capacity (kg):7000 Rear axle loading capacity (kg):2*13000 |
| Performance | Maximum driving speed(km/h):102(reference data) Maximum gradeability (%):33 Minimum ground clearance(mm):265 Minimum turning radius (m):18.5 Fuel consumption(L/100km):40(reference data) |
high efficiency transportation

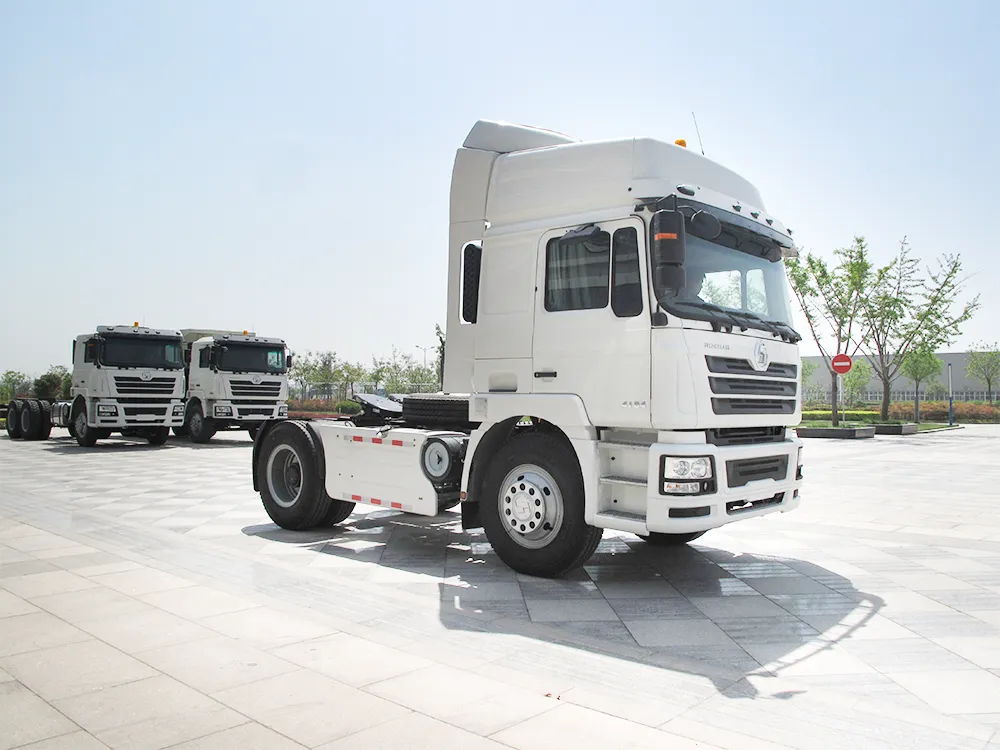

Shacman F3000 4×2 Tractor Truck side view
front view
economical efficiency and reliability
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
