Howo 6×4 380hp V7 Dump Truck with Low Bumper for Sale
Howo 6×4 380hp V7 Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The configurations like horse power, loading capacity, color of truck body, etc. Are all costumizable.
Howo 6×4 380hp V7 Dump Truck with Low Bumper for Sale Description:
Howo 6×4 380hp V7 Dump Truck is dedicated to transport sand, earth, minerals, coals, bricks, etc. in working condition like construction site and mining. It fits complex road conditon severe environment. With strong horse power and high loading capacity it is suitable for heavy duty transportation.
With high speed hydraulic lifting device it can unload the goods within a shprt time, save the cost of load and unload. The 6×4 drive type and high ground clearance can help it siutable for complex road situation. The low bumper can protect the driver and reduce the severity of accident.
| Product Name | Howo 6x4 380hp V7 Dump Truck with Low Bumper |
|---|---|
| Engine | Engine model : WD10.38-50, 380HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 486 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | MCX16ZG (16 Tons), single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | V7X Lengthened Cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 Overall Dimension (mm) : 8265x2496x3490 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8265x2496x3490 mm |
| Color | Customer's requests |

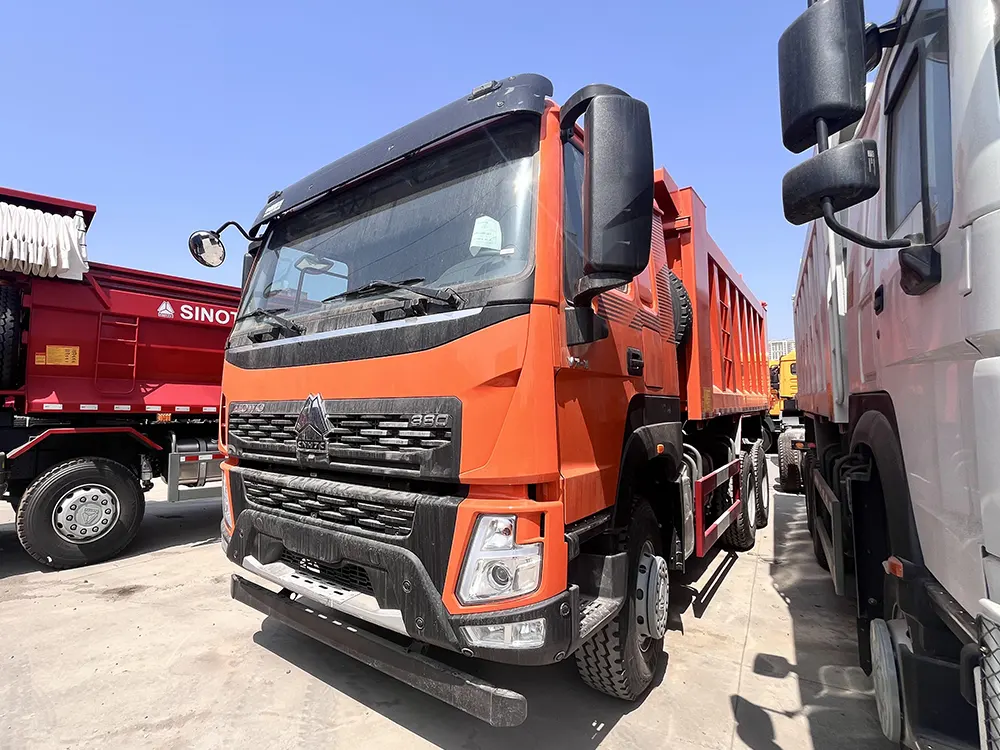

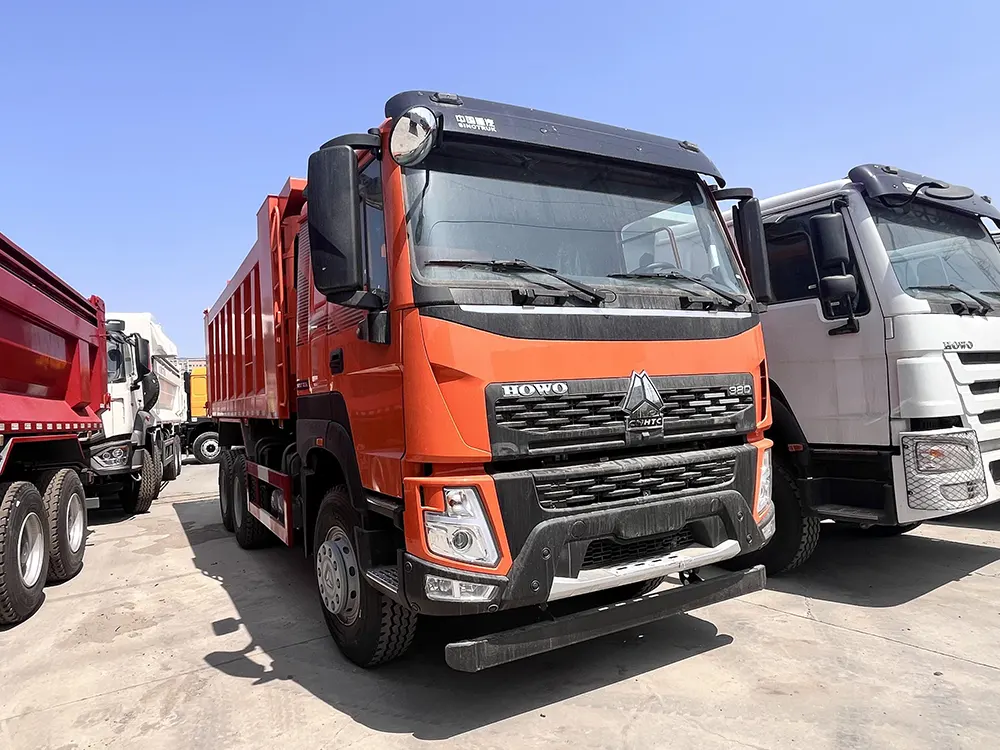

Howo 6×4 380hp V7 Dump Truck front view
suitable for heavy duty transportation

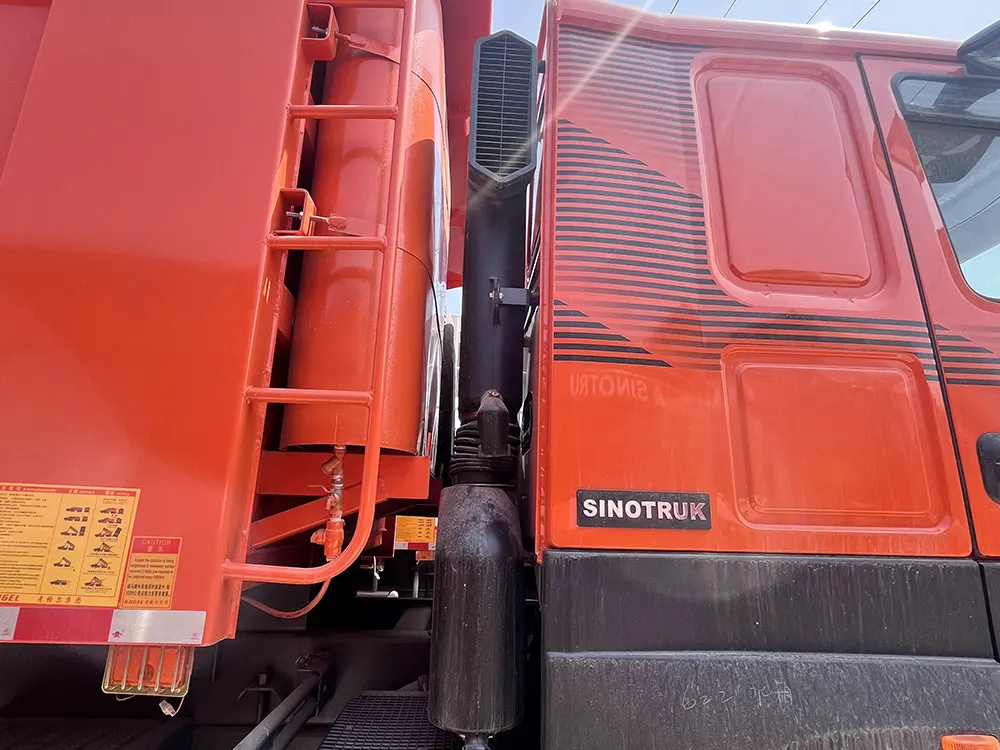

high speed hydraulic lifting device

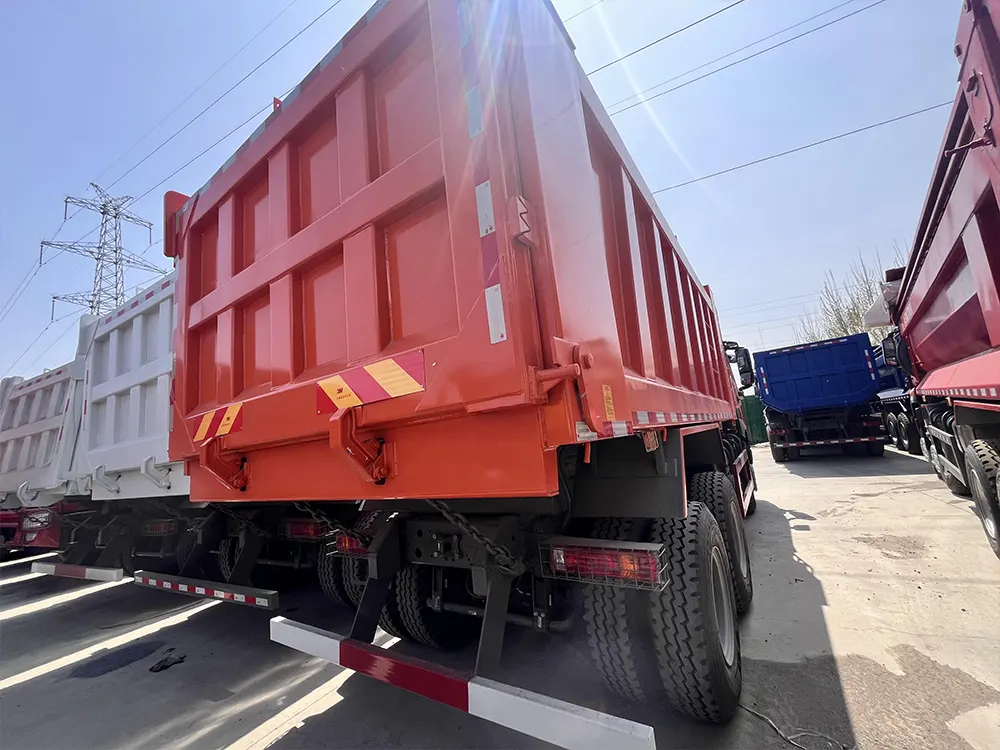

high loading capacity
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
