Howo 430hp 8×4 Dump Truck with Two Warning Lights
Howo 430hp 8×4 Dump Truck is mainly used to work in construction site or mining, transport dinas, earth, mineral, etc. The warning lights increase the safty, and all these configurations are costumizable.
Howo 430hp 8×4 Dump Truck with Two Warning Lights Description:
Howo 430hp 8×4 Dump Truck is dedicated for engineering construction and transportation, it’s used to tranport bulk materials like minerals and earth. So it’s specially suitable for heavy duty working condition like construction site and mining.
Equipped with 430hp WP12.430E62 engine it got a strong enough power, and with a 8×4 drive type plus double axles design makes it good at heavy duty loading and it could provide a steady performance. The warning lights and head lights protective cover can increase the safty of the drving and reduce the chance for extra maintain.
| Product Name | Howo 8×4 430hp Dump Truck with two warning lights |
|---|---|
| Engine | Engine model : WP12.430E201 , 430 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel Types: 12.00 R20 or 12R22.5 or based on customer's requests |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 + 1350 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :30600 Dead weight (kg): 15270 Gross vehicle weight (kg): 45000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Performance | Maximum driving speed (km/h) : 75 (reference data ) Maximum gradeability (% ) : 36 Minimum ground clearance (mm) : 314 Minimum turning radius (m): 15 Fuel consumption ( L / 100 km ): 40 (reference data) |
| Cargo body | Size : 7500 * 2300 * 1500 , bottom 8mm , side 6mm , Front lift |
| Overall Size | 10500 x 2550 x 3450 mm |
| Color | Customer's requests |

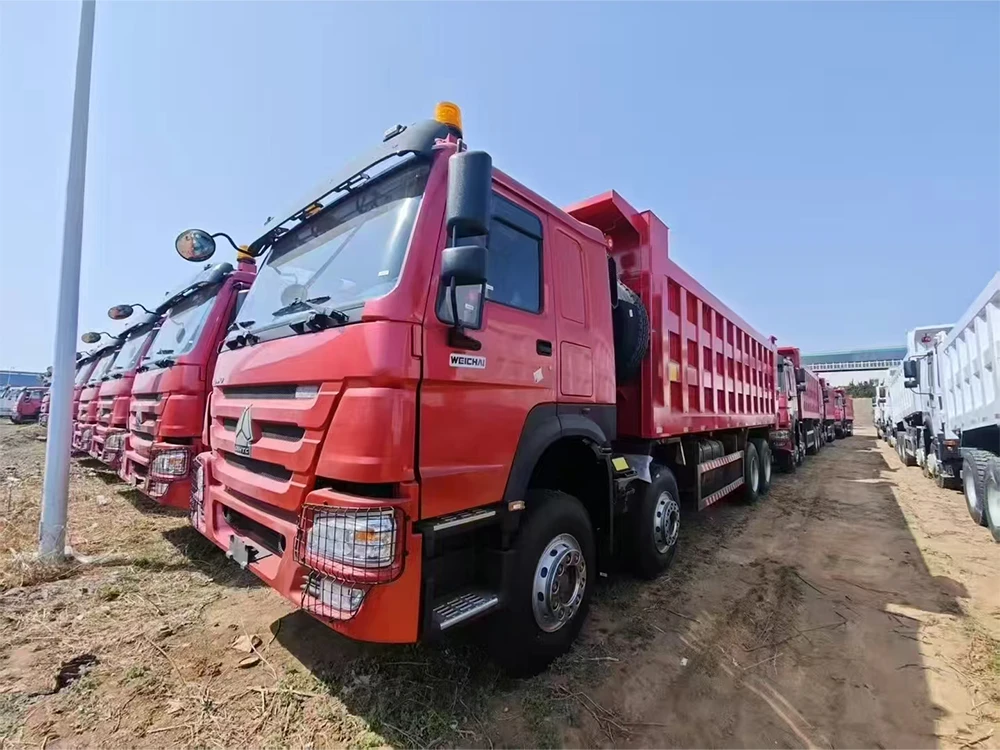

Howo 430hp 8×4 Dump Truck front view

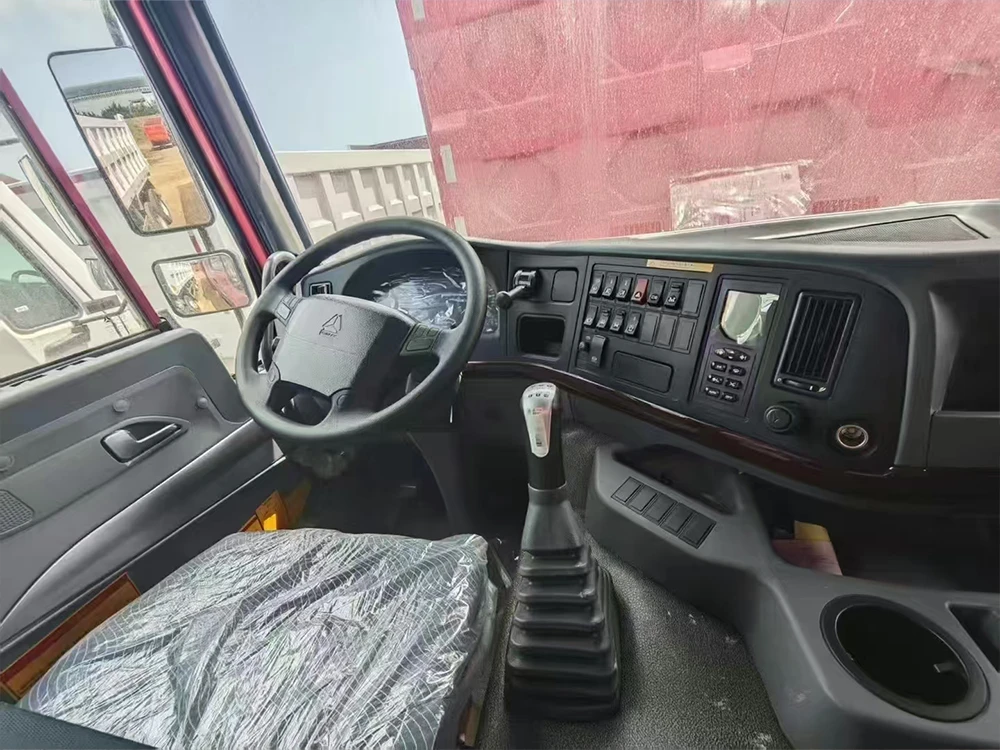

Big room in the cabin
Big room for rest in the cabin
High efficient hydraulic system
Side cover to protect the gear box
The most important promise we can make is that all of our products are full refurbished, and any parts can be customized by customer’s requests. We check every our products to make sure that it helps your business perfectly. In Zonhan, there will always be a truck with your goal price.
