Howo Oil tanker truck 16000Liters 6×4 10 Wheels Factory Price
We are showing a regular Howo 6*4 oil tanker truck here. The capacity of water tanker, drive type, horse power, color of car body, are all customizable based on your requests.
Howo Oil tanker truck 16000Liters 6×4 10 Wheels Factory Price Description:
Howo Oil tanker truck is mainly used to transport or storage liquid fuel, it’s equipped with mobile pumping station, suitable for lots of industrail and commercial situation.
The main fuction of this production is transport liquids like gasoline, diesel, lubrication etc. The capacity is up to 16000L (customizable based on your requests) which is suitable for transport to petrol station and power station with high efficiency, and as a temporary moblie oil depot it can fit the need of oil store. The 6*4 design with 16 tons double axles make sure the loading ability of the truck head, equipped with overflow prevention device, vapor recovery system, and fire extinguisher acord with ADR saftey standard.
| HOWO 16000L Fuel Tank Truck SPECIFICATIONS | |
|---|---|
| Model | ZZ1257N4347D1B |
| Engine | Engine model:WD615.47, 371HP, Euro II emission standard |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model HW19710+HW70 PTO, 10 forward and 2 reverse |
| Front Axle | HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| Steering | ZF8118, hydraulic steering with power assistanceRatio: 22.2-26.2:1 |
| Wheels&Tyres | 12.00R20*13pcs |
| Driver'sCab | HW76 Cabin, with one sleeper and A/C |
| Dimensions inmm | 4300MM |
| Weight in kg | Permissible loading capacity (kg):13540Dead weight (kg):11330Gross vehicle weight (kg):25000Front axle loading capacity (kg):9000Rear axle loading capacity (kg):2*16000 |
| Performance | Maximum driving speed(km/h):102(reference data)Maximum gradeability (%):62Minimum ground clearance(mm):314Minimum turning radius (m):10.8Fuel consumption(L/100km):36(reference data) |
| Fuel Tanker | 20000Liters volume, Carbon steel fuel tank 5mm, with flow valves, tool box, manhole,climbing ladder, fire extinguisher |

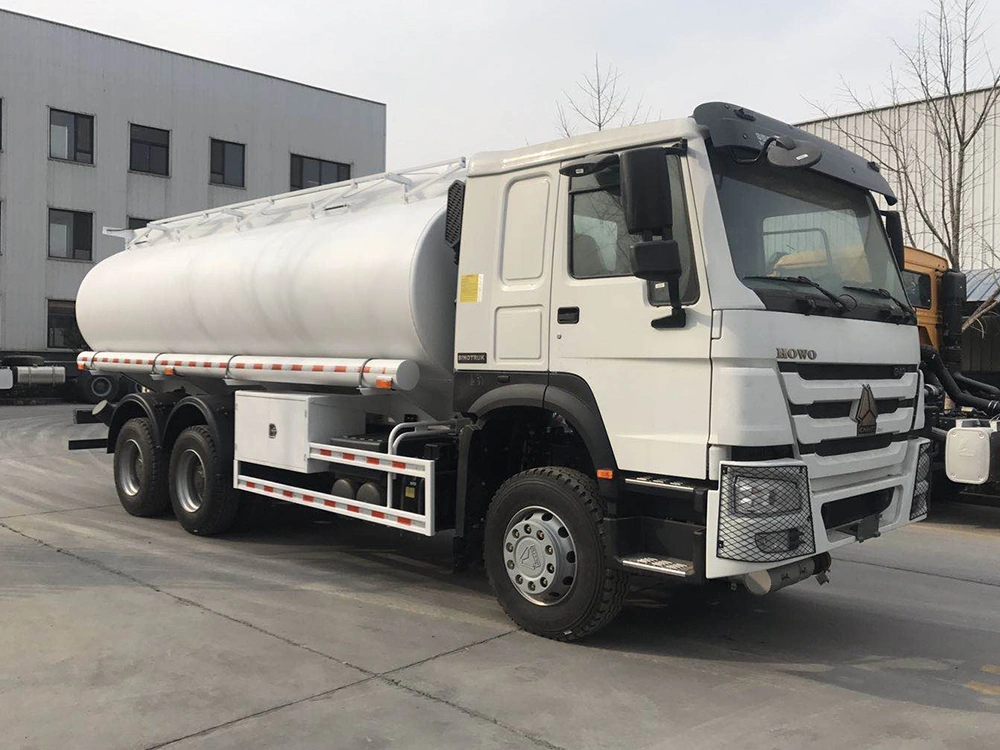

Oil tanker truck front view
transport or storage liquid fuel
temporary moblie oil depot

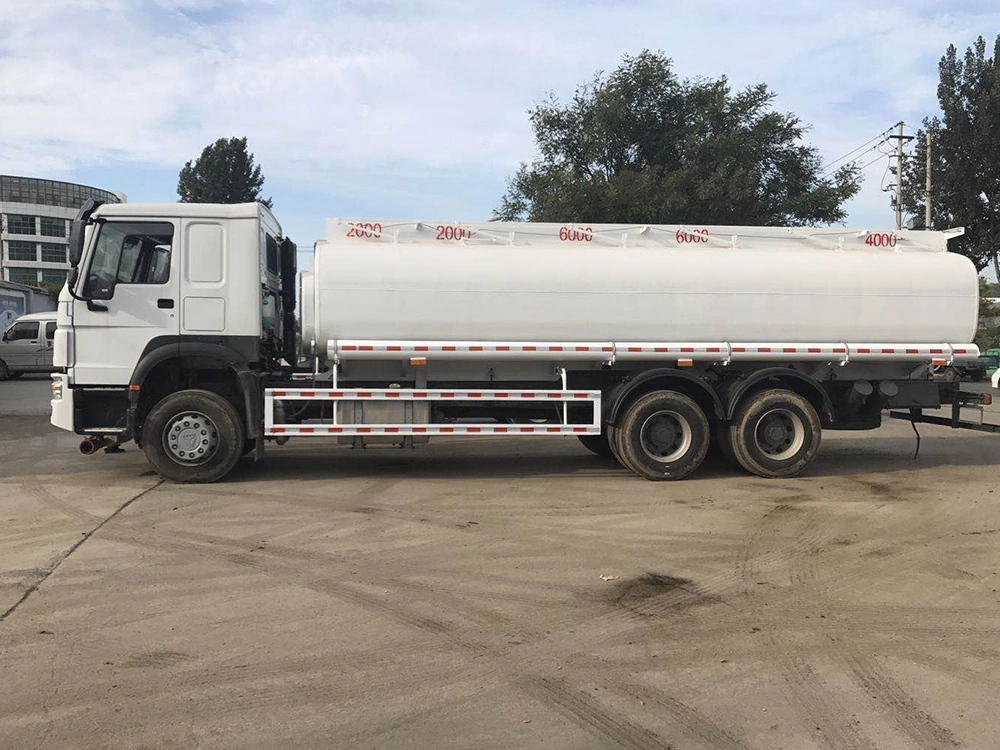

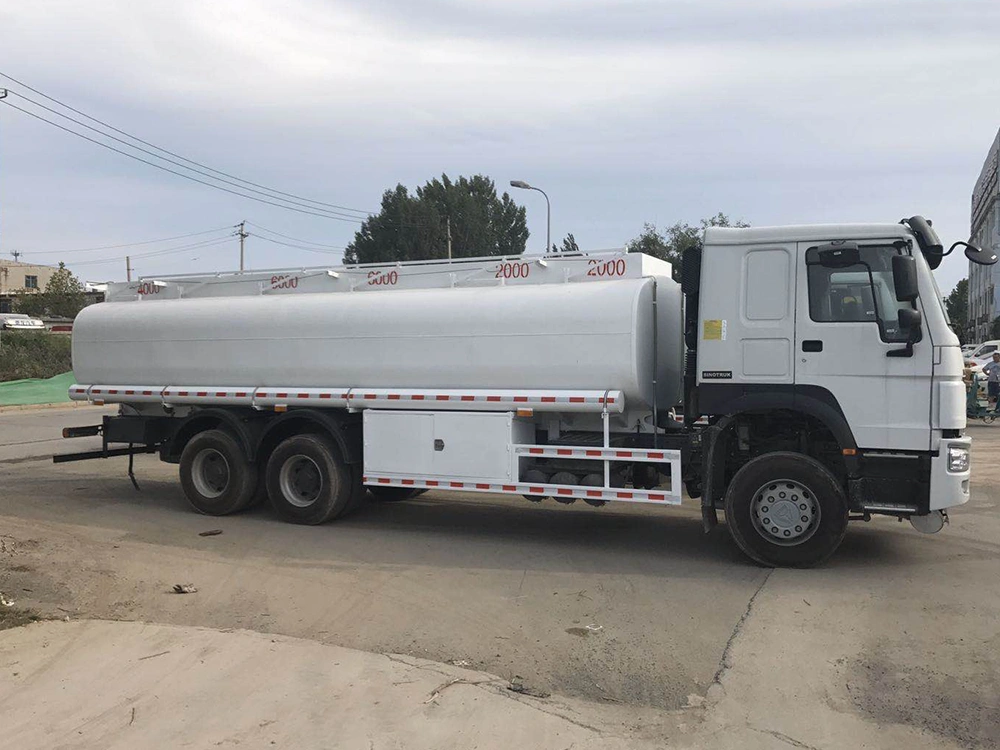

Oil tanker truck side view
