Sinotruk Howo V7 420HP 8×4 Dump Truck

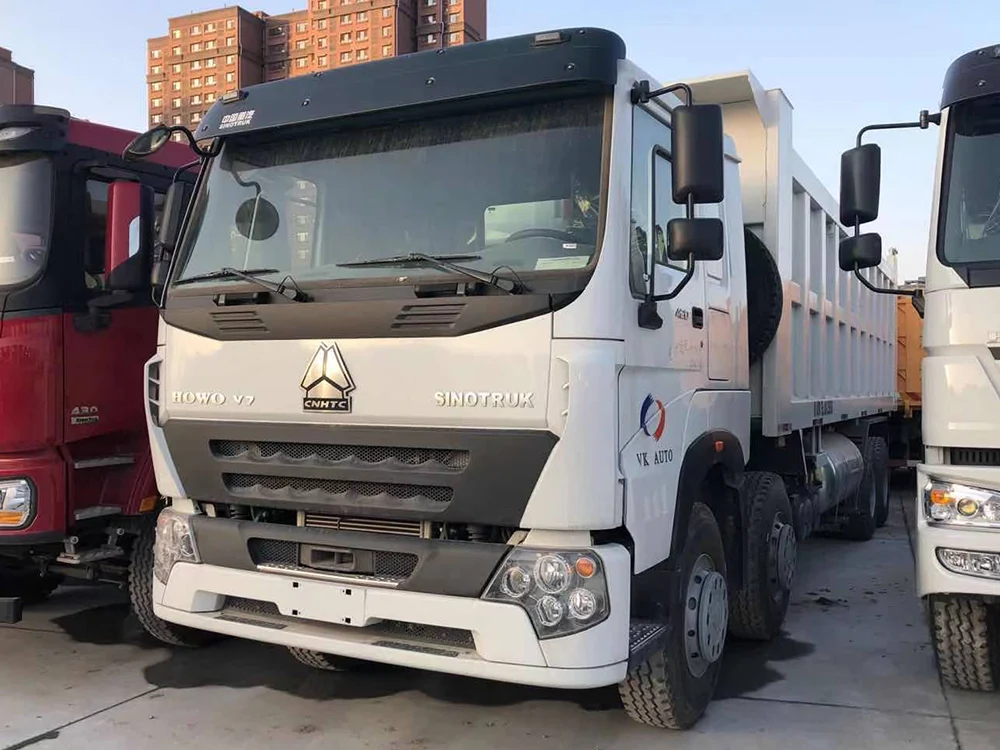

This is a photo of the robust Sinotruk HOWO V7, an 420HP 8×4 dump truck engineered for high-intensity hauling operations.
Sinotruk Howo V7 420HP 8×4 Dump Truck Description:
The Sinotruk HOWO V7 8×4 dump truck is powered by a high-efficiency 420HP engine, paired with an optimally tuned powertrain that delivers robust and stable performance during heavy-load starts, climbing, and complex working conditions. Its 8×4 drive configuration and reinforced chassis design ensure exceptional load capacity and off-road capability under extreme loads, making it an ideal power solution for high-intensity earthmoving and mining operations.
Built with high-strength engineering materials, the truck body features an optimized structure for significantly improved impact resistance and wear durability. Its scientifically designed tipping system enables fast and stable unloading, working in harmony with the excellent chassis stability to ensure both operational efficiency and safety. The vehicle strikes a balance between long-term durability and operational economy, helping users tackle the challenges of continuous, demanding work cycles.
This 420HP dump truck‘s cabin is designed with a user-centered approach, featuring a multi-adjustable suspension seat, an intuitive smart control interface, and excellent noise insulation, all of which greatly enhance comfort during long driving hours. The vehicle integrates multiple active safety technologies and robust body protection, providing comprehensive security for both the driver and the equipment. From power and reliability to the operator experience, the HOWO V7 8×4 is committed to being the core partner for your efficient operations.
| Product Name | Howo 8×4 Dump Truck |
|---|---|
| Drive Type | 8×4 |
| Engine | Engine model : WD615.47, 420HP , Euro 2 emission standard, 4 stroke injection diesel engine ,6 cylinder in-line with water cooling,turbo-charging & inter cooling , common rail Maximum output : 272 KW Maximum torque : 1900N.m Displacement: 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tires | Number of tires: 12, Rims: 8.5-20, 12 hole-steel, Types: 12R22.5 or based on customer's requests |
| Driver's Cab | Long cab, all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 1800+3500+1350 Front wheel track (mm) : 2022 Rear wheel track (mm): 1860 / 1860 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 17 Departure angle(°) : 20 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Cargo body | Size : 7500*2300*1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8600 x 2550 x 3450 mm |
| Color | Customer's requests |
Sinotruk Howo V7 420HP 8×4 Dump Truck Sinotruk Howo V7 420HP 8×4 Dump Truck front viewSinotruk Howo V7 420HP 8×4 Dump Truck local view
For more details on configurations, pricing, or to schedule a test drive, please contact us promptly!
