Efficient Sinotruk NX 6×4 460hp tractor truck
This is a photo of Sinotruk NX 6×4 460hp tractor truck. It’s a fully refurbished used vehicle in excellent condition, reliable for long-distance logistics.
Efficient Sinotruk NX 6×4 460hp tractor truck Description:
The Sinotruk NX 6×4 460hp tractor truck is a high-performance transportation equipment developed by Sinotruk for long-distance trunk line logistics scenarios, laying a solid foundation for transportation security with its powerful power and reliable performance. Equipped with a 460-horsepower high-performance engine and matched with a mature and efficient transmission system, the vehicle delivers strong and smooth power output, ensuring effortless starting under heavy load and sufficient power reserve during high-speed cruising, easily coping with complex working conditions such as climbing and long-distance driving. The 6×4 drive form combined with a robust chassis structure greatly enhances load-bearing stability, while the combination of multiple large-capacity air reservoirs and an efficient braking system further guarantees the safety and cruising reliability of long-distance transportation.
This tractor truck also excels in driving experience and scenario adaptability. The cab adopts a humanized design, equipped with a multi-function steering wheel, central control entertainment system, comfortable seats and other configurations, effectively relieving driver fatigue during long-distance driving. Meanwhile, the vehicle balances fuel economy and durability, and has passed rigorous working condition tests, enabling it to adapt to climate and road condition differences in different regions. Whether it is inter-city trunk line logistics, bulk cargo transportation, or special transportation scenarios such as cold chain and dangerous chemicals, the Sinotruk NX 6×4 460hp tractor truck can serve as a reliable partner for logistics practitioners with its efficient and stable performance.
| Product Name | Tractor Truck |
|---|---|
| Model | ZZ4255N3446F1 |
| Engine | Engine model: WP10.5H460E62, 460HP, Euro 6 emission standard, 4 stroke injection diesel engine, 6 cylinder in-line with water cooling,turbo-charging & inter cooling,common rail Maximum output: 371PS (276kW) at 2000 rpm Maximum torque: 1560Nm at 1200-1500rpmBore: 126mm Stroke: 130mm Displacement: 9.726L |
| Clutch | SINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission, model HW25712XSTL, 10 forward and 2 reverseRatio: 4.42 4.8 5.73 |
| Front Axle | New H153 series, with drum brake system |
| Rear Axle | MCJ12BGpressed axle housing, single reduction and differential locks between axles; with drum brake system. |
| Steering | ZF8118, hydraulic steering with power assistance Ratio: 22.2-26.2:1 |
| Wheels&Tyres | Rims: 8.5-20,10 hole-steelTypes: 12.00R20 Option:12R22.4,12.00-24,12.00-20,13R22.5, 315/80R22.5, 295/80R22.5, 11.00R20 |
| Driver'sCab | Flat Roof ，2 persons, 4 point ful -floating air suspension , adjustable steering wheel with various heights and angles,Air suspension seat. |
| Dimensions inmm | Wheel base (mm): 3400+1400 Front wheel track (mm): 2022/2041 Rear wheel track (mm):1830/1830 Overhang(front/rear) (mm):1500/725 Approach angle(°):16 Departure angle(°):70 Overall Dimension (mm): 6800x2496x3230 |
| Weight in kg | Rated loading capacity at fifth wheel (kg):1566 0Dead weight (kg):9210 Gross vehicle weight (kg):25000 Gross combination weight（kg）：7000 Front axle loading capacity (kg):9000 Rear axle loading capacity (kg):2*16000 |
| Performance | Maximum driving speed(km/h):102(reference data) Maximum gradeability (%):33 Minimum ground clearance(mm):265 Minimum turning radius (m):18.5 Fuel consumption(L/100km):40(reference data) |

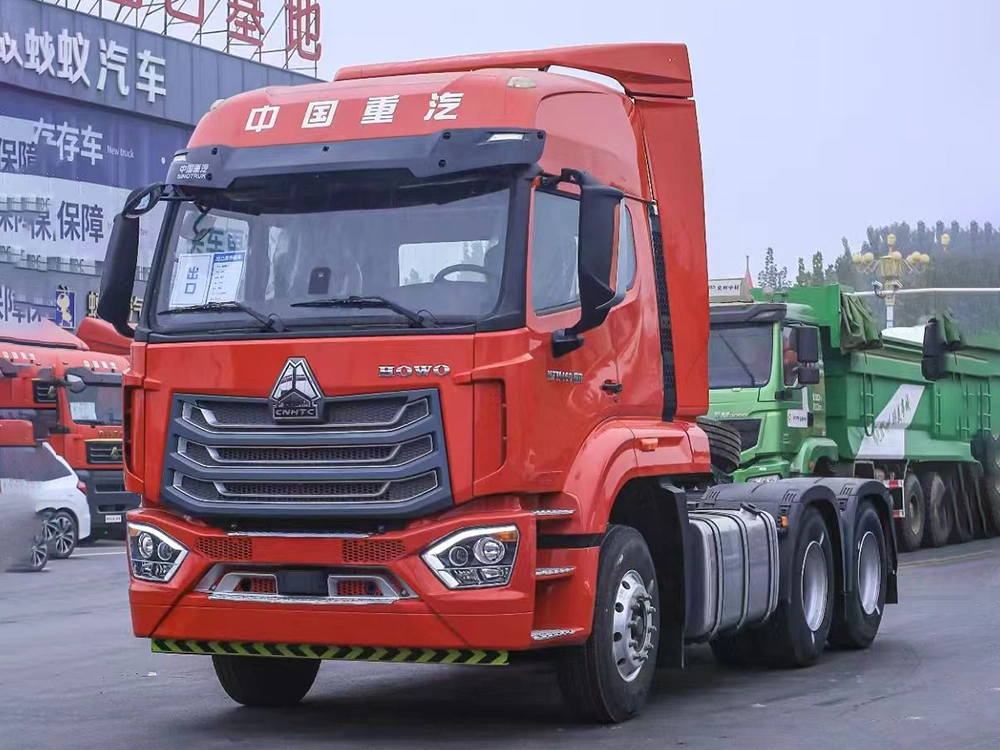

Sinotruk NX 6×4 460hp tractor truck front view

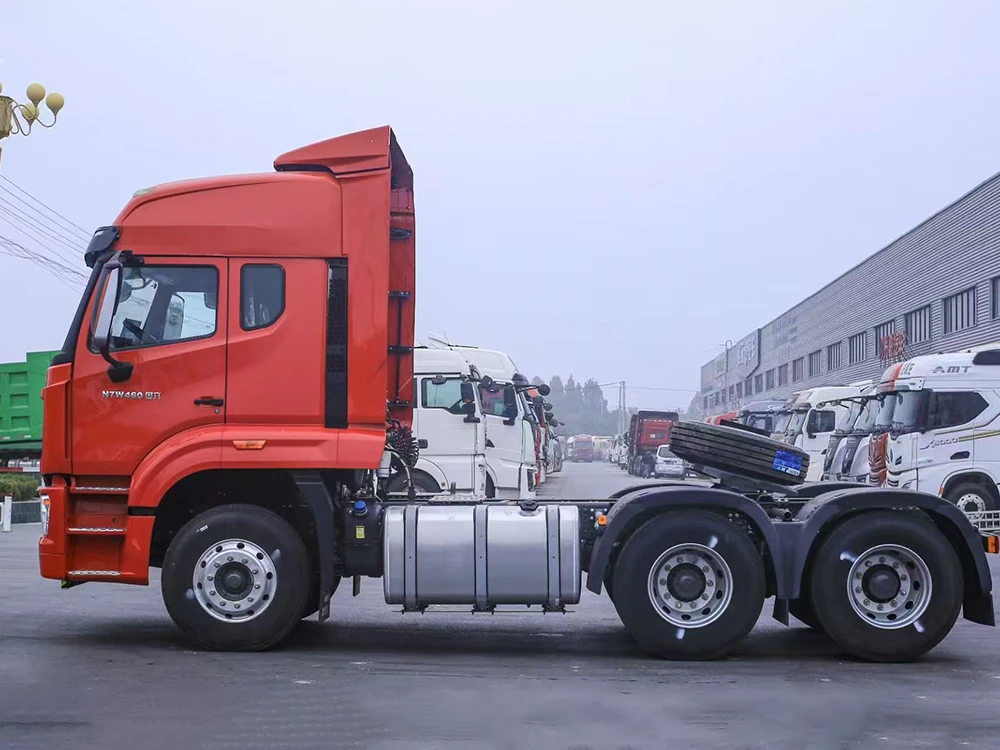

Sinotruk NX 6×4 460hp tractor truck side view

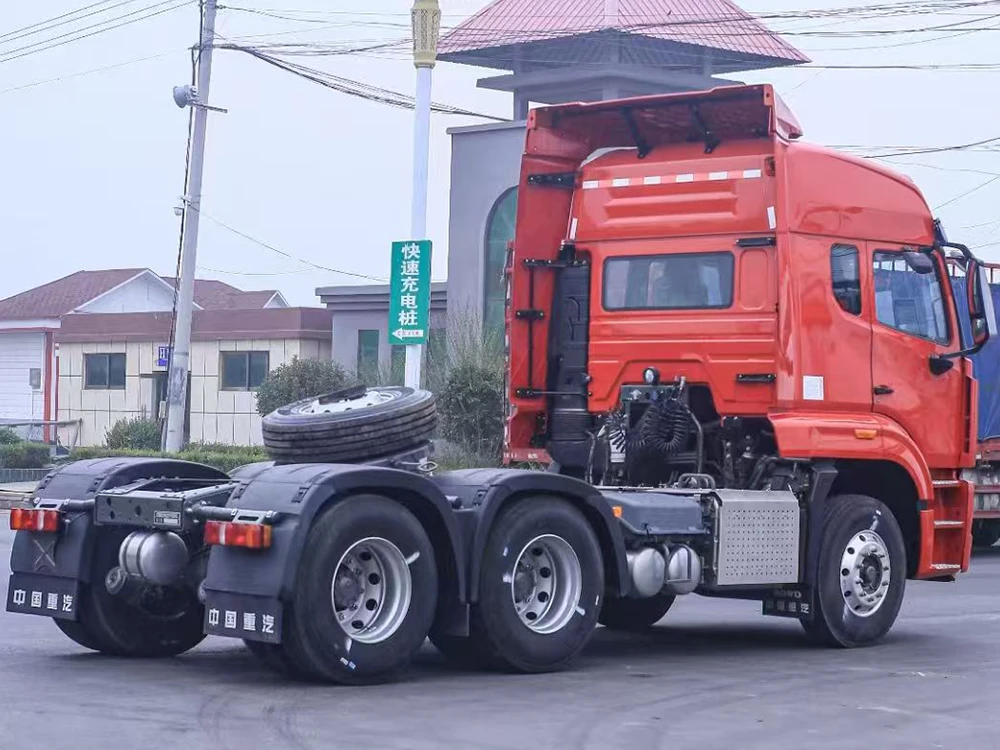

Sinotruk NX 6×4 460hp tractor truck rear view

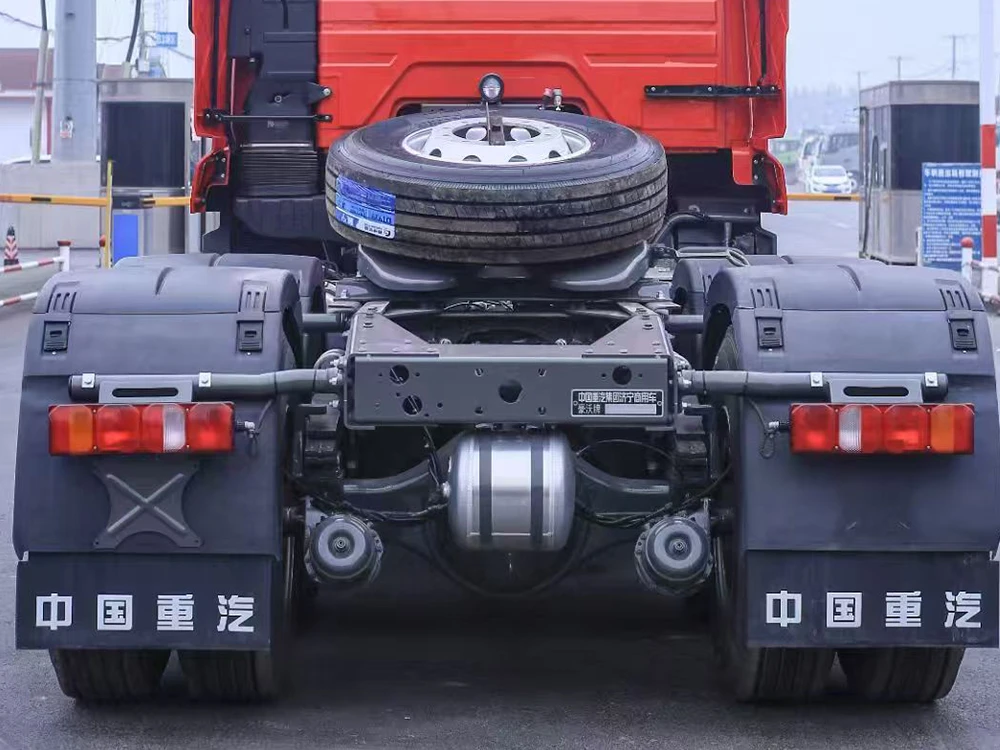

Sinotruk NX 6×4 460hp tractor truck fifth wheel

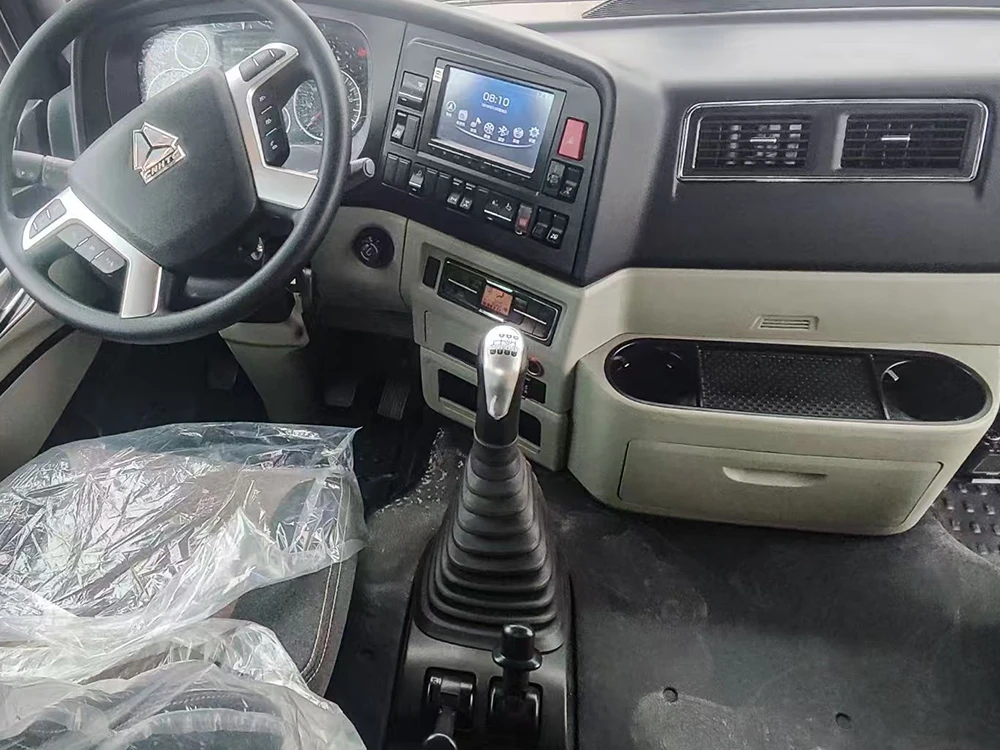

Sinotruk NX 6×4 460hp tractor truck cab
