Best Sinotruk Howo 6X4 Center-lift 371HP Tipper Truck with Headlight Protection Grille
This is a photo of the Sinotruk Howo 6×4 heavy-duty 371HP tipper truck, featuring a durable center-lift system and protective headlight grille.
Best Sinotruk Howo 6X4 Center-lift 371HP Tipper Truck with Headlight Protection Grille Description:
The Sinotruk Howo 6×4 Center-Lift 371 HP Tipper Truck, powered by a robust 371 HP engine and a durable 6×4 chassis, is engineered for global markets in heavy-duty construction, mining, and infrastructure development. Its center-lift system delivers superior stability and efficient material unloading, ensuring reliable operation in various demanding conditions. The distinctive headlight protection grille not only enhances the vehicle’s protection rating in harsh environments but also highlights its professional engineering attributes. This is an efficient transportation solution built to tackle challenges worldwide.
Precision engineering defines every detail of this model. The reinforced cargo box and optimized hydraulic system ensure operational continuity and ultra-low failure rates over long-term, high-load cycles. The cabin focuses on ergonomics, guaranteeing operator efficiency and comfort. External protective features like the headlight protection grille significantly reduce maintenance costs and downtime caused by accidental impacts in complex working environments, offering overseas operators excellent Total Cost of Ownership (TCO) advantages.
As a leading heavy-duty truck manufacturer in China, we are committed to providing global clients with high-quality products that meet international standards and comprehensive support. From flexible product configurations and professional export certifications (such as CE, GOST) to parts supply and technical service networks covering key markets, we ensure a smooth procurement experience and lasting operational support for every international partner.
| Product Name | Howo 6×4 Dump Truck |
|---|---|
| Drive Type | 6×4 |
| Engine | Engine model : WD615.47, 371HP , Euro 2 emission standard, 4 stroke injection diesel engine ,6 cylinder in-line with water cooling,turbo-charging & inter cooling , common rail Maximum output : 272 KW Maximum torque : 1900N.m Displacement: 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW 19710 , 10 forward and 2 reverseRatio : 5.73 |
| Front Axle | New VGD 95 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Wheels & Tires | Number of tires: 10, Rims: 8.5-20, 10 hole-steel, Types: 12R22.5 or based on customer's requests |
| Driver's Cab | Long cab, all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3825 Front wheel track (mm) : 2022 Rear wheel track (mm): 1860 / 1860 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 17 Departure angle(°) : 20 |
| Weight in kg | Permissible loading capacity (kg) :15600 Dead weight (kg): 15270 Gross vehicle weight (kg): 25000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |
| Cargo body | Size : 5600 * 2300 * 1500 , bottom 8mm , side 6mm , middle lift ( Front lift is for optional ) |
| Overall Size | 8600 x 2550 x 3450 mm |
| Color | Customer's requests |

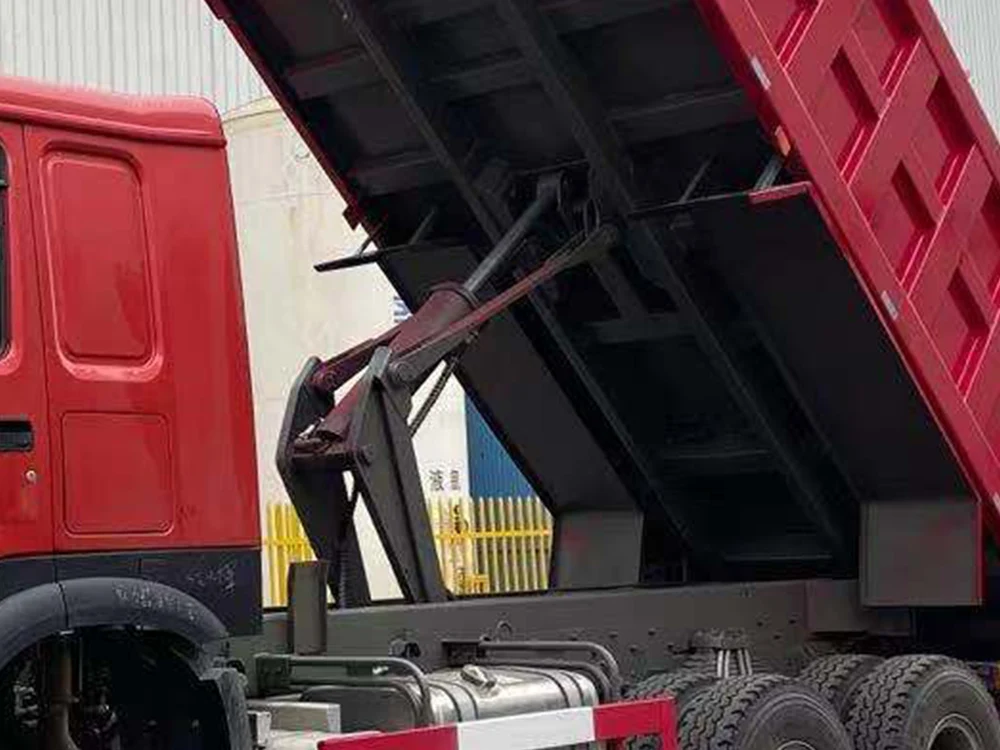

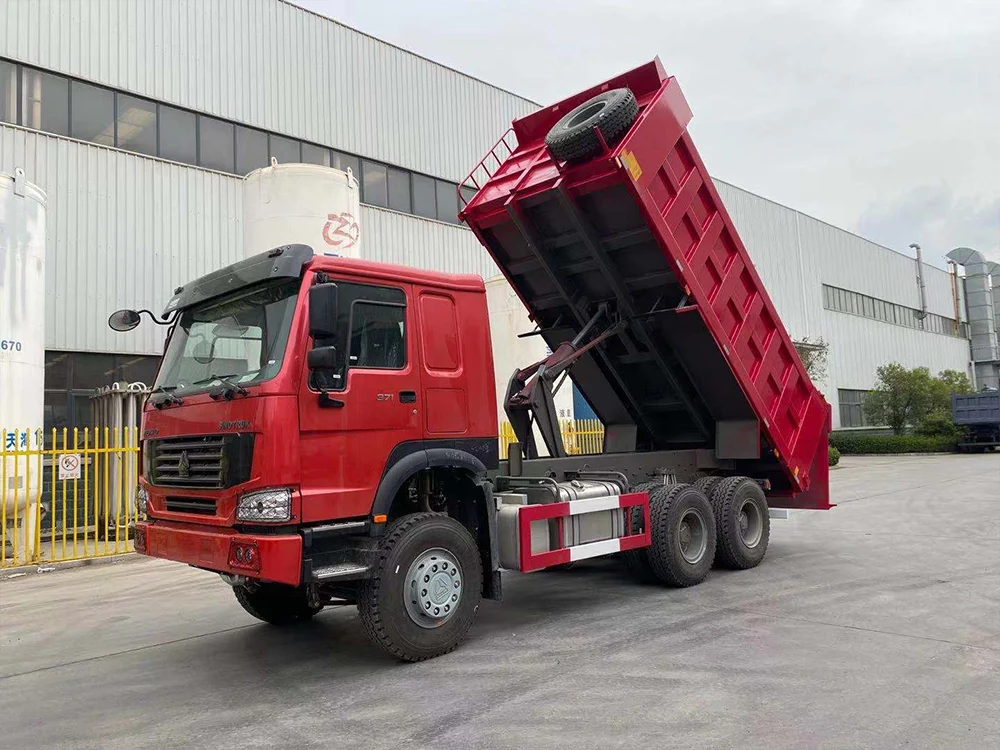

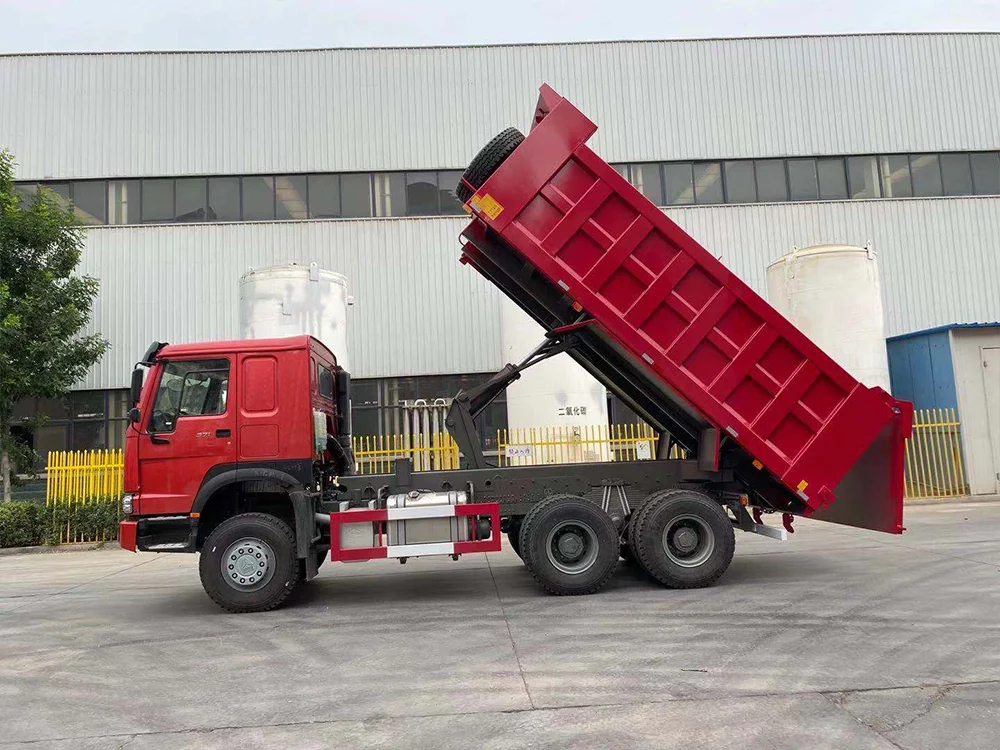

Best Sinotruk Howo 6X4 Center-lift 371HP Tipper Truck with Headlight Protection Grille Best Sinotruk Howo 6X4 Center-lift 371HP Tipper Truck with Headlight Protection Grille side viewBest Sinotruk Howo 6X4 Center-lift 371HP Tipper Truck center-mounted cylinder
If you are seeking a high-performance, economical, and durable dump truck for your market, please feel free to contact us for detailed English technical documentation, compliance certificates, and competitive FOB/CIF quotations. We look forward to establishing a successful business partnership with you!
