HOWO 8×4 371HP Light blue Dump Truck for Sale
In a word, the Sinotruk HOWO 8×4 371HP Light blue Dump Truck is the “king of heavy load” and “attack weapon” in the field of engineering transportation. It is not a model that pursues economy and flexibility, but a professional solution to cope with the largest and most arduous engineering tasks.
HOWO 8×4 371HP Light blue Dump Truck for Sale Description:
This HOWO 8×4 371HP Light blue Dump Truck is a four-axle dump truck based on the mature heavy platform of SINOTRUK HOWO. Its core design goal is to provide the largest one-way carrying capacity and the strongest complex road condition passability within the scope allowed by regulations, and it is the “load capacity responsibility” of large-scale mines and infrastructure projects.
| Product Name | HOWO 371HP Light blue Dump Truck |
|---|---|
| Engine | Engine model : WD615.47 , 371 HP , Euro 2 emission standard , 4 stroke injection diesel engine , 6 cylinder in-line with water cooling , turbo-charging & inter cooling , common railMaximum output : 400 PS (276 kW) at 2000 rpmMaximum torque : 1560 Nm at 1200 - 1500 rpmBore : 126 mm Stroke : 130 mm Displacement : 9.726 L |
| Clutch | SINOTRUK’s 430 C diaphragm spring clutch, hydraulically operating with air assistance |
| Transmission | Transmission , model HW19710 , 10 forward and 2 reverseRatio : 4.42 4.8 5.73 |
| Front Axle | New HF9 series, with drum brake system |
| Rear Axle | HC16 pressed axle housing , single reduction and differential locks between axles ; with drum brake system |
| Steering | ZF 8118 , hydraulic steering with power assistanceRatio : 22.2-26.2:1 |
| Driver'sCab | Long cab , all steel forward control , 55° hydraulic tilting to the front , 2-arm windscreen wiper system with 3 speeds , adjustable co-driver’s seat, heating & ventilation system , with stereo radio / cassette recorder, sun visor, safety belt, air conditioner |
| Dimensions inmm | Wheel base (mm) : 3800 + 1350 Front wheel track (mm) : 2022 / 2041 Rear wheel track (mm): 1830 / 1830 Overhang ( front / rear) (mm) : 1500 / 1870 Approach angle (°): 19 Departure angle(°) : 23 |
| Weight in kg | Permissible loading capacity (kg) :30600 Dead weight (kg): 15270 Gross vehicle weight (kg): 45000 Front axle loading capacity (kg): 2*9500 Rear axle loading capacity (kg) : 2*16000 |

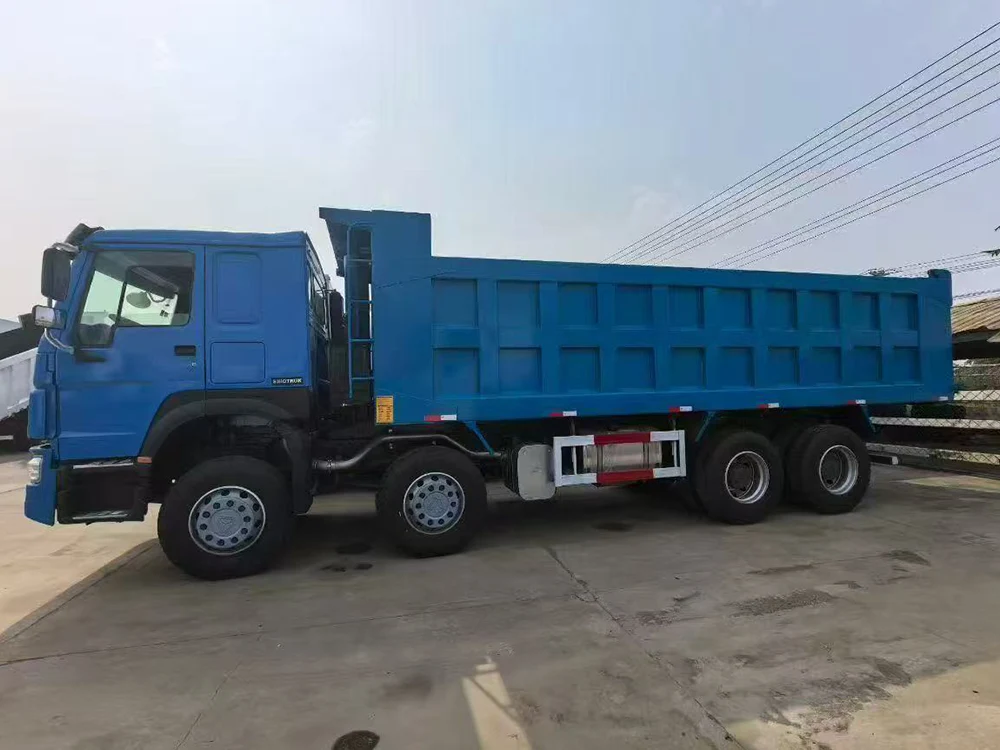

Side View

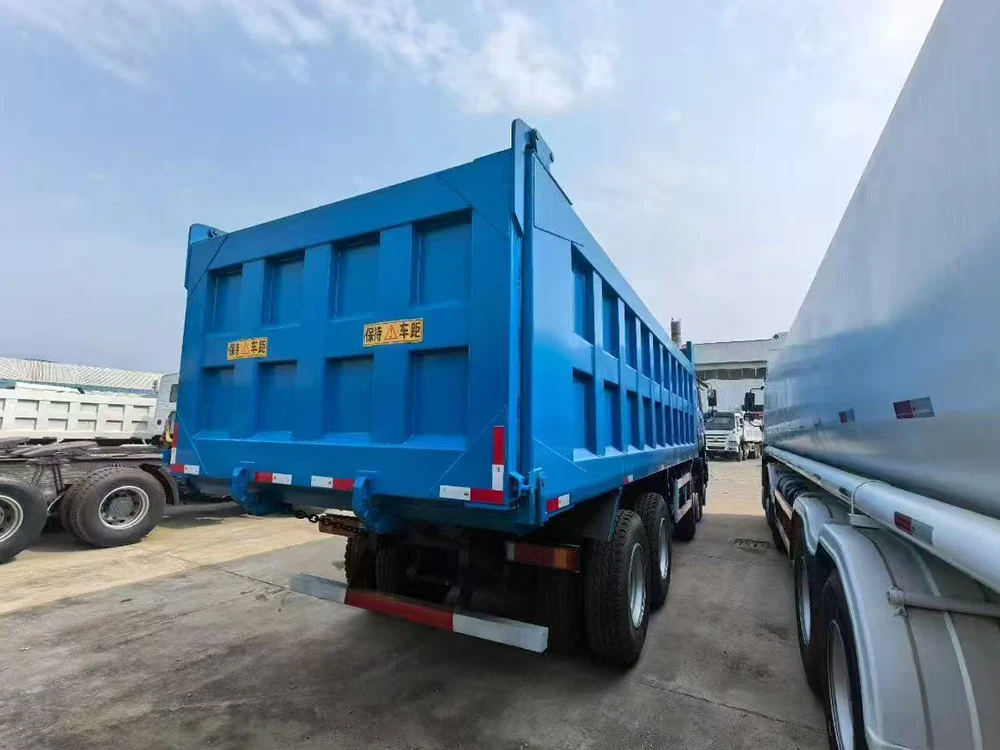

Back View
This HOWO 8×4 371HP Light blue Dump Truck is the absolute mainstay of large-scale engineering projects, which is suitable for scenarios with extreme requirements for carrying capacity and passability. For example, large-scale open-pit mine mining: the core equipment for transporting ore and slag, its carrying capacity and durability are the key.
For example, large-scale national infrastructure: such as highways, railway roadbeds, water conservancy dams and other projects that require a large amount of earth and stone transfer.
This HOWO 8×4 371HP Light blue Dump Truck can also be used for giant construction bases and reclamation projects. Carry out high-intensity and short-distance barge inside the ultra-large-scale construction site. It can also be used as a coal logistics hub. Carry out the collection and dredging of bulk materials in coal fields and docks.
