SHACMAN F2000 4×2 270HP Water Sprinkler Truck 10,000-12,000L Capacity for sale
SHACMAN F2000 4×2 270HP Water Sprinkler Truck | 10,000–12,000L capacity, Weichai engine, Euro II emission, ideal for road maintenance and construction dust control.
SHACMAN F2000 4×2 270HP Water Sprinkler Truck 10,000-12,000L Capacity for sale Description:
The SHACMAN F2000 4×2 270HP Water Sprinkler Truck is a robust and reliable solution for road maintenance, construction site dust control, and urban sanitation. Built on the proven SHACMAN F2000 chassis, this vehicle is powered by a Weichai WP7.270E32 270HP engine (Euro II emission, mechanical pump, no urea system), delivering exceptional performance and fuel efficiency for heavy-duty operations.
With a 10,000–12,000L (10–12m³) water tank constructed from high-quality carbon steel (Q235B, 4–5mm thick, with optional stainless steel 304/316L), it ensures long-term durability and corrosion resistance. The truck is equipped with a professional sprinkler system, including front duck-type nozzles (spray width ≥12m), rear cylindrical nozzles (≥10m), side shower nozzles, and a high-pressure water cannon (range ≥28–35m, 360° rotation). The system can be controlled from both the cabin and the rear platform via pneumatic ball valves, offering flexible operation for various tasks.
This SHACMAN 270HP Water Sprinkler Truck is the perfect choice for municipalities, construction companies, and road maintenance teams seeking a cost-effective, high-performance solution for dust suppression, road cleaning, and water transportation.
| Item | Specification |
|---|---|
| Model | SX5180GSS or SX1160 Series |
| GVW | 18,000 kg (Yellow Plate, 18-ton class) |
| Curb Weight | Approx. 7,500 – 8,000 kg |
| Water Capacity | 10 – 12 m³ (10,000–12,000 L) |
| Wheelbase | 4,500 mm or 4,700 mm |
| Drive Type | 4×2 (Single drive axle, twin rear tires) |
| Cabin | F2000 medium-long roof cabin with sleeper |
| Engine | Weichai WP7.270E32 or WP6.270 (270 HP / 199 kW) |
| • Inline 6-cylinder, water-cooled, turbocharged | |
| • Euro II emission (mechanical pump, no urea needed) | |
| • Max torque: 1100–1200 N·m | |
| Gearbox | Fast 8JS118A or 9JS119TA |
| • 8-speed or 9-speed manual transmission | |
| • With PTO interface | |
| Front Axle | 6.5-ton class front axle (disc or drum brake) |
| Rear Axle | 13-ton class single reduction axle |
| • Ratio: 4.875 or 5.286 | |
| • Twin rear tires: 11.00R20 or 12.00R20 | |
| Frame | Double-layer frame 280×80×(7+5) mm |
| Suspension | Front few-leaf springs / Rear multi-leaf springs |
| Braking System | Drum brake with ABS |
| • Spring brake chamber, exhaust brake | |
| Steering | Power steering, hydraulic assist |
| Tires | 11.00R20 or 12.00R20 radial tires |
| • 1 spare tire | |
| Electrical System | 24V, 165Ah battery |
| • Headlight protection grille | |
| • Amber warning light (optional) | |
| Fuel Tank | 400L aluminum alloy fuel tank |
| ank Material | High-quality carbon steel Q235B, thickness 4–5 mm |
| • Internal anti-corrosion treatment (304/316L stainless steel optional) | White (RAL 9010) |
| Effective Volume | 10,000 L – 12,000 L |
| Tank Shape | Elliptical or round-square with anti-wave baffles |
| Water Inlet System | Gravity inlet + fire brigade interface (DN65) |
| • Self-priming water pump (optional) | |
| Water Pump | 80QZ-60/90 or 65QZ-40/50 special sprinkler pump |
| • Flow rate: 60–90 m³/h | |
| • Head: ≥90 m | |

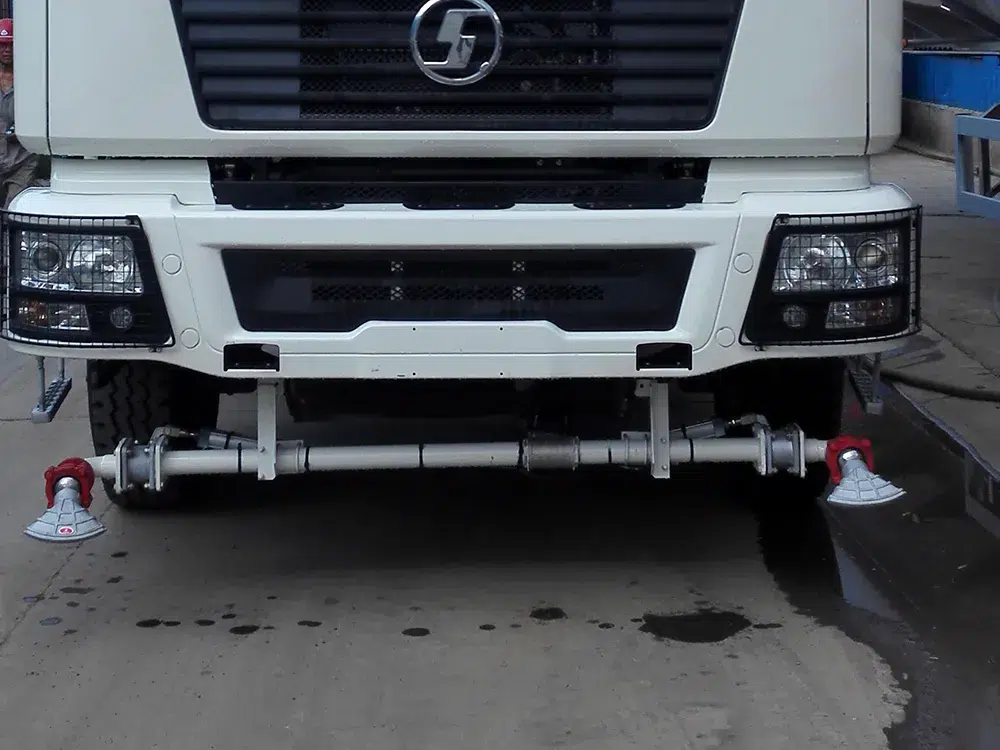

| Front Sprinkler | Front duck-type nozzle (spray width ≥12 m) |
| • Pneumatic or manual control | |
| Rear Sprinkler | Rear cylindrical nozzle (fan spray, width ≥10 m) |
| Side Sprinkler | Side shower nozzles (6–8 nozzles per side) |

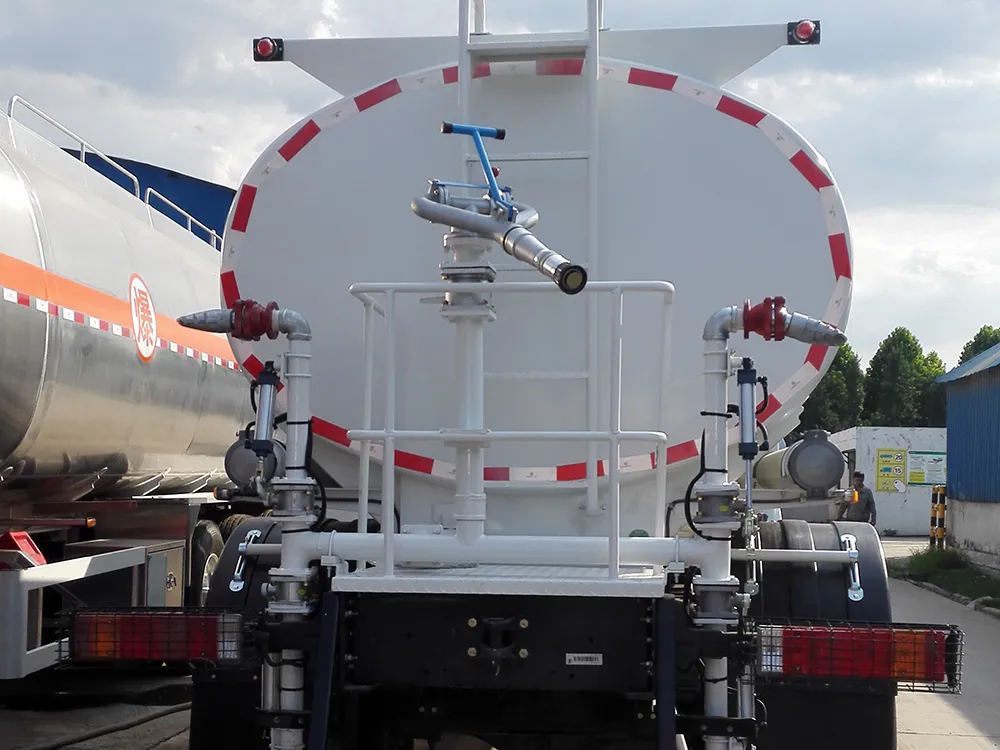

| High-Pressure Cannon | Rear platform-mounted water cannon |
| • Range: ≥28–35 m | |
| • 360° rotation, jet/mist adjustable | |
| Operation Mode | Cabin control + rear platform manual control |
| • Pneumatic ball valves for each spray function | |
| Working Platform | Rear anti-slip ladder + top platform with guardrails |
| Piping | Galvanized or stainless steel pipes with ball valves |

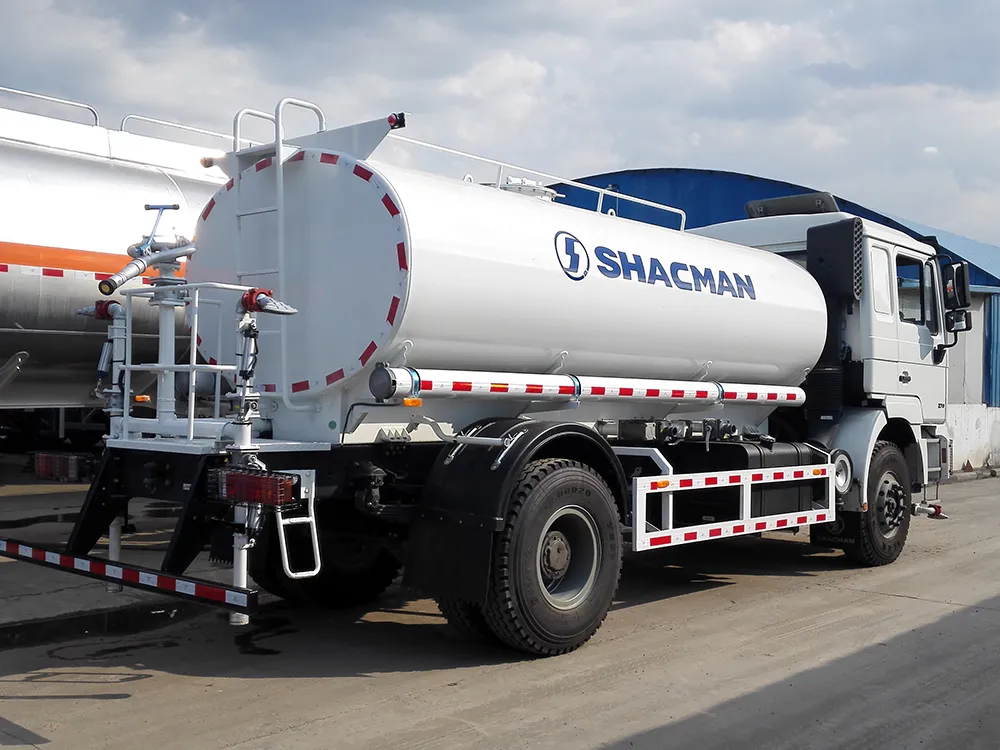

side view
rear view 1
front view
rear view 2
If you are interested in this SHACMAN F2000 4×2 270HP Water Sprinkler Truck , please feel free to contact us and we will reply as soon as possible.
